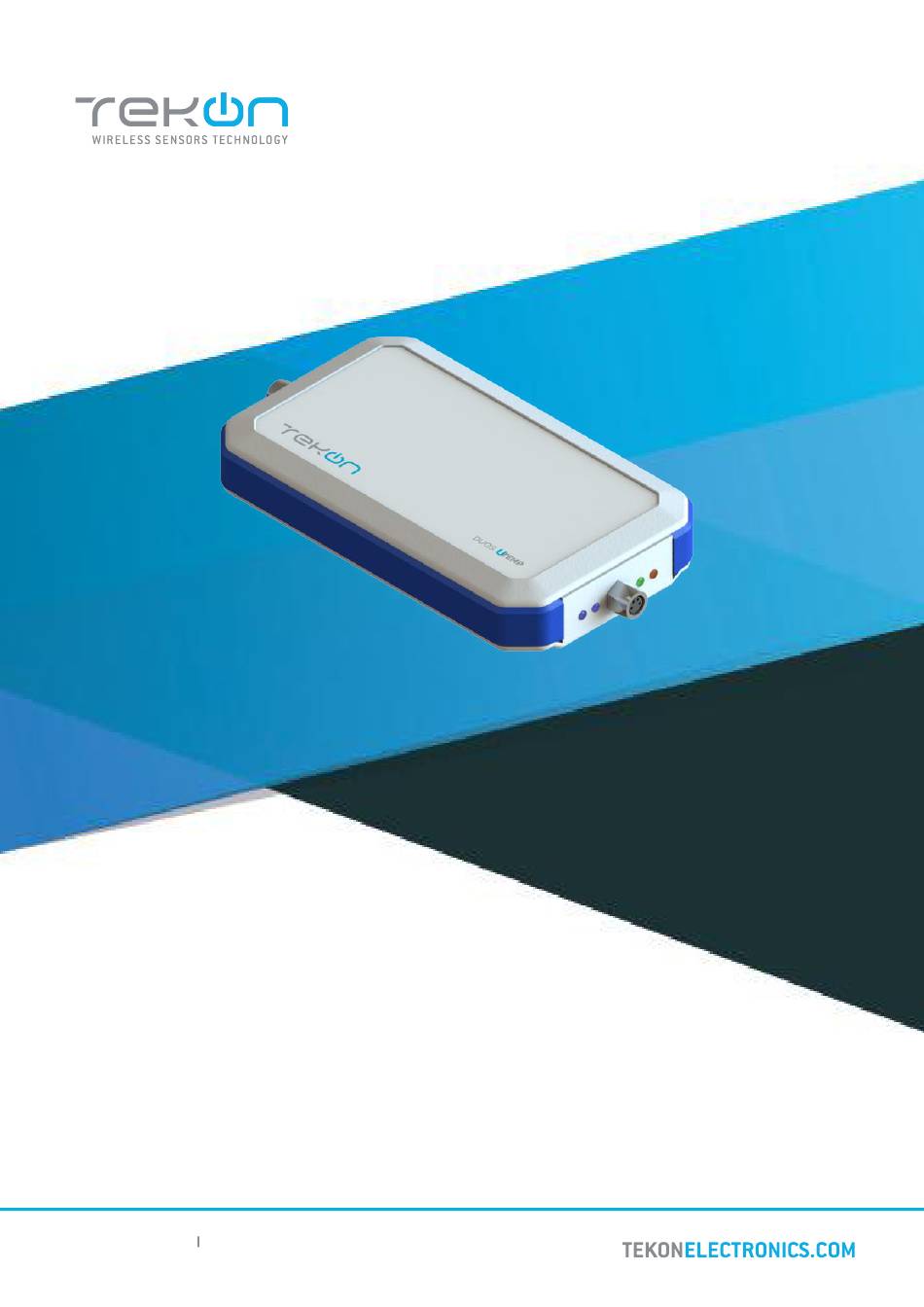

DUOS uTEMP TRANSMITTER
INSTALLATION GUIDE
TEKON ELECTRONICS AVEIRO, PORTUGAL
TEKON ELECTRONICS AVEIRO, PORTUGAL
P.:
M.:
P.:
+351 234 303 320
M.:
+351 933 033 250
+351 234 303 320
+351 933 033 250
E.:
E.:
sales@tekonelectronics.com
sales@tekonelectronics.com
IG_DUOS_UTEMP_E01A

Advertisement

loading
Need help?

Need help?

Do you have a question about the DUOS uTEMP E01A and is the answer not in the manual?

Questions and answers

Related Manuals for Tekon DUOS uTEMP E01A

Summary of Contents for Tekon DUOS uTEMP E01A

  • Page 1 DUOS uTEMP TRANSMITTER INSTALLATION GUIDE IG_DUOS_UTEMP_E01A TEKON ELECTRONICS AVEIRO, PORTUGAL TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 933 033 250 sales@tekonelectronics.com +351 234 303 320 +351 933 033 250 sales@tekonelectronics.com...
  • Page 2 DUOS WIRELESS SYSTEM INSTALLATION GUIDE DUOS uTEMP TRANSMITTER INSTALLATION GUIDE Table of contents step CONNECT AND CONFIGURE DUOS WIRELESS GATEWAY Pages 4 to 11 step CONNECT AND CONFIGURE DUOS WIRELESS uTEMP TRANSMITTER Pages 12 to 17 step CHECK WIRELESS COMMUNICATION BETWEEN DUOS uTEMP TRANSMITTER AND GATEWAY Page 18...
  • Page 3 DUOS WIRELESS SYSTEM INSTALLATION GUIDE DUOS uTEMP TRANSMITTER INSTALLATION GUIDE Table of contents step CONNECT AND CONFIGURE DUOS WIRELESS REPEATER Pages 19 to 25 step CONNECT DUOS WIRELESS IOT GATEWAY Pages 26 to 39 LEGEND: Important information for the setup; Take note of the information;...
  • Page 4 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS GATEWAY NOTE: If your device is a DUOS IoT GATEWAY, please consider the information on this page. If your device is a DUOS GATEWAY, please go to the next page to start the equipment setup. SYSTEM ARCHITECTURE MINIMUM REQUIREMENTS The right application of DUOS IoT GATEWAY only occurs if all minimum requirements are met by the customer side.
  • Page 5 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS GATEWAY TEKON CONFIGURATOR SOFTWARE is only compatible with the Microsoft Windows Operating System. Connect the antenna to the Gateway. Connect the DUOS RS485-USB cable to the computer and then to the Gateway.
  • Page 6 Open Tekon Configurator Software and select from the menu DUOS >> Gateway >> Configuration Select the Serial Port of the DUOS Wireless Gateway Click on the Refresh Serial Ports button. Tekon Configurator software is free of charge and available at www.tekonelectronics.com...
  • Page 7 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS GATEWAY Select the Port name of the device. Remove the DUOS RS485-USB cable from the Gateway side and reinsert it. NOTE: After reinserting the cable, you have 10 seconds to enter in configuration mode by clicking on the Connect ( ) button, while the blue LED flashes slowly.
  • Page 8 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS GATEWAY Click on the Connect ) button to enter configuration mode. The status string at the bottom of the software window gives feedback of reading operations, as well as the Gateway LED indication.
  • Page 9 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS GATEWAY Take note of the device configuration data available, namely: Modbus Address, Modbus Baudrate, Modbus Parity, Wireless Network ID Wireless Channel. NOTE: The wireless network connection between devices is ensured by the Wireless Network ID and Wireless Channel field parameters.
  • Page 10 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS GATEWAY Modbus Communication Open the Modbus tab of the Gateway and set the previously saved configurations. Ensure that the Port name, Baudrate, Parity and the Modbus Address fields are the same obtained in configuration mode. LED switched on and steady Red LED flashes every second whenever it sends beacons...
  • Page 11 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS GATEWAY Click on the Connect ) button and check the operation status at the bottom of the window. The messages Connected to Modbus Reading successfully will appear if the Serial Port configuration parameters are correct and the Modbus connection established.
  • Page 12 Connect the probe (and the digital input cable, if it will be used) to the DUOS uTemp Wireless Transmitter. Open a new window of the Tekon Configurator Software and select the menu DUOS >> Transmitter. Connect the DUOS TRANSMITTER SARC cable to the computer and then to the transmitter.
  • Page 13 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS uTEMP WIRELESS TRANSMITTER LED switched on and steady Click on the Refresh Serial Ports button.
  • Page 14 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS uTEMP WIRELESS TRANSMITTER Select the Port name of the device. Remove the cable from DUOS uTemp Wireless Transmitter side and reinsert it. This will access the device’s configuration input window during 10 seconds. You can check the device port name in the Device Manager menu in the Windows operating system.
  • Page 15 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS uTEMP WIRELESS TRANSMITTER Click on Connect ) button to enter configuration mode. These configurations are read automatically. The status string at the bottom of the software window gives feedback on reading operations. In configuration mode, DUOS uTemp Wireless Transmitter activates 4 LEDS: 2 blue LEDs flashes, red and green...
  • Page 16 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS uTEMP WIRELESS TRANSMITTER Configure Wireless Network ID Wireless Channel previously obtained from the Gateway. The wireless connection between both devices is ensured by Wireless Network ID Wireless Channel parameters. Ensure that Transmitter ID is unique in the network.
  • Page 17 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS uTEMP WIRELESS TRANSMITTER Click on the Configuration Mode ) button to exit setup and start the equipment in normal operation mode. After this procedure: • The Transmitter awaits connection to the Gateway, when only the red LED flashes; LED flashes slowly •...
  • Page 18 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CHECK WIRELESS COMMUNICATION BETWEEN DUOS TRANSMITTER AND GATEWAY Place the two windows of Tekon Configurator software devices side by side, in order to analyse communication between both devices. Select the configured Transmitter ID...
  • Page 19 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS REPEATER Connect the antenna to the Repeater. Connect DUOS RS485-USB cable to the computer and then to Repeater. Check the device connection through the LEDs indication. LED switched off LED switched on an (red/green LED) POWER ON...
  • Page 20 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS REPEATER Open Tekon Configurator Software and select the menu DUOS >> Repeater. Click on Refresh Serial Ports button.
  • Page 21 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS REPEATER Select Port name of the device. Remove the cable from Repeater and reinsert it. After reinserting the cable you have 10 seconds to enter configuration mode by clicking on the Connect ) button, while the blue LED flashes...
  • Page 22 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS REPEATER Click on the Connect ( ) button to verify the device’s configuration data. LED switched off LED switched on and steady (red/green LED) POWER ON...
  • Page 23 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS REPEATER Make sure that Wireless Network ID Wireless Channel in the Repeater window have the same values as the ones that were obtained in the Gateway configuration window. NOTE: If there is more than one Repeater in the network, make sure that the Repeater ID is unique in order to avoid network conflict.
  • Page 24 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS REPEATER Click on the Configuration Mode ( ) button to exit the setup programme. NOTE: In order to establish communication between the Repeater and the Gateway, make sure that both devices are at a distance of at least 3 meters or remove the antenna from the repeater (in case both devices are near each other).
  • Page 25 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE DUOS WIRELESS REPEATER • The Repeater is connected to the wireless network when red and green LEDs flash. LED switches on and remains steady Red/green LED flashes as soon as connection between the devices has been established.
  • Page 26 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT DUOS WIRELESS IoT GATEWAY Change the switch pin to Normal Mode. Plug the ethernet cable that follows with your gateway to the device’s input and to your network. Your DUOS IoT GATEWAY physical connection should look like this.
  • Page 27 IP address assigned to be accessed via mobile phone, tablet or pc (through Wi-Fi). The interface designed to interact with the device can be accessed through its fixed IP (192.168.128.1) or its SSID address (http://Tekon). The factory-defined and configurable access data are: - Login: admin...
  • Page 28 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT DUOS WIRELESS IoT GATEWAY To enable the option to get an dynamic IP address assigned by your network, click on Manage button. A pop-up window will show up. Click on the validation box, next to the DHCP label to enable the option and click on the...
  • Page 29 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT DUOS WIRELESS IoT GATEWAY CONFIGURE A PROXY SERVER (OPTIONAL) You can configure a proxy server to your gateway. Go to the Settings » Network » Proxy Configuration. Complete the HTTP Proxy HTTPS Proxy fields with the correct address of your proxy server.
  • Page 30 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT DUOS WIRELESS IoT GATEWAY ACCESS TO DUOS GATEWAY IOT THROUGH ETHERNET The connection to DUOS IoT GATEWAY through Ethernet is made using your web browser. You can access by the hostname (http://<hostname>) or via IP address (http://<192.168.100.1>). The default login credentials are: - Login: admin - Password: admin...
  • Page 31 The transmitters are listed in ascending numerical order. By default, the name appears with “N/A“ until it is edited and reset. The Hub ID field match to the Transmitter ID field defined in Tekon Configurator over the transmitter configuration. Click on the Hub ID field of the transmitter to activate.
  • Page 32 CONNECT DUOS WIRELESS IoT GATEWAY The transmitter is activated. Transmitter information available for all the interfaces. If you would like to send data from this transmitter to Tekon IoT Platform, set the Synchronize to Cloud field mode and save the changes. We will return to this subject shortly.
  • Page 33 INSTALLATION GUIDE step CONNECT DUOS WIRELESS IoT GATEWAY CONNECTION TO TEKON IOT PLATFORM In the DUOS IoT GATEWAY page, go to Settings >> Cloud Services. In a new browser page, access your Tekon IoT Platform and go to Settings >> Administration.
  • Page 34 API key. In the DUOS IoT GATEWAY page, fill in the fields: - “Server URL” with your Tekon IoT Platform address; - “API Key” with the Api key previously copied; Change the Status field value to On.
  • Page 35 Click on Update button to save the changes. If Validate Credentials is checked, the configured data is stored only if valid. Pay attention to the received message. Your DUOS GATEWAY IoT is now connected to your Tekon IoT Platform instance.
  • Page 36 INSTALLATION GUIDE step CONNECT DUOS WIRELESS IoT GATEWAY ATTACH TRANSMITTER DATA TO TEKON IOT PLATFORM Access to your Tekon IoT Platform, click at the Datasources menu and the button( ) to edit the datasource where you want to send the transmitter data.
  • Page 37 Cloud” in the “TRANSMITTER ACTIVATION“ step to activate your transmitter. If you did not perform the validation, the message “Cloud Synchronization Off” will be displayed in the “Status” field. Your transmitter is now connected to your Tekon IoT Platform. NOTE: Perform a reboot in the gateway.
  • Page 38 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE step CONNECT DUOS WIRELESS IoT GATEWAY DATA COMMUNICATION OVER MODBUS TCP/IP You can pre-check the DUOS IoT GATEWAY graphical interface of Modbus TCP/IP communication. In each transmitter you can analyse different common parameters in modbus communications. Click on the transmitter / hub you want to analyze and select the Modbus Holding Registers tab.
  • Page 39 In this example we used the transmitter / hub 1. The first modbus address of its variables starts at 0. To find the modbus address calculation formula defined for DUOS IoT GATEWAY, please refer the datasheet on Tekon Electronics website.
  • Page 40 DUOS UTEMP WIRELESS TRANSMITTER INSTALLATION GUIDE REVISION HISTORY VERSION E01B...
  • Page 41 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Avenida Europa, 460 Quinta do Simão 3800-230 Aveiro PORTUGAL P.: +351 234 303 320 M.: +351 933 033 250 E.: sales@tekonelectronics.com...
