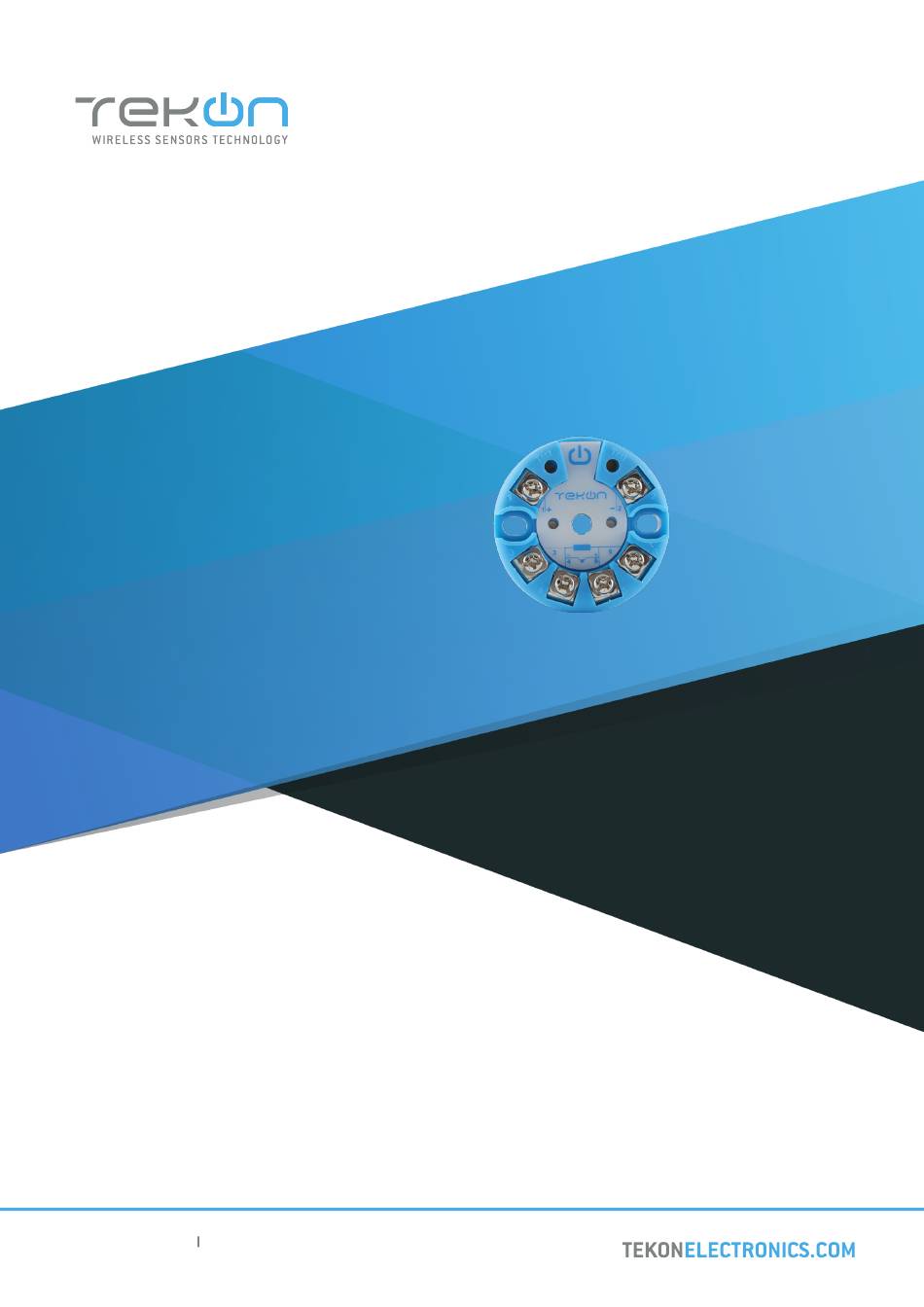

PT100
TEMPERATURE HEAD
TRANSMITTER
THP101
INSTALLATION GUIDE
TEKON ELECTRONICS AVEIRO, PORTUGAL
TEKON ELECTRONICS AVEIRO, PORTUGAL
P.:
M.:
P.:
+351 234 303 320
+351 234 303 320
M.:
+351 933 033 250
+351 933 033 250
E.:
E.:
sales@tekonelectronics.com
sales@tekonelectronics.com
IG_INHD_THP101_E02A
Advertisement
Related Manuals for Tekon PT100
Summary of Contents for Tekon PT100
- Page 1 PT100 TEMPERATURE HEAD TRANSMITTER THP101 INSTALLATION GUIDE IG_INHD_THP101_E02A TEKON ELECTRONICS AVEIRO, PORTUGAL TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 234 303 320 +351 933 033 250 +351 933 033 250 sales@tekonelectronics.com sales@tekonelectronics.com...
- Page 2 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PT100 TEMPERATURE HEAD TRANSMITTER THP101 INSTALLATION GUIDE Table of contents step CONNECT AND CONFIGURE THP101 TEMPERATURE HEAD TRANSMITTER Pages 3 to 9...
- Page 3 THP101 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THP101 TEMPERATURE HEAD TRANSMITTER DOWNLOAD AND INSTALL “TEKON CONFIGURATOR” FREE SOFTWARE FROM TEKON ELECTRONICS WEBSITE Connect the THP101 transmitter to the SARC2 cable configurator. Connect the PT100 probe to the THP101 transmitter.
- Page 4 THP101 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THP101 TEMPERATURE HEAD TRANSMITTER Open the THP101 device page. You can enter the device’s page in the following ways: 1st option: Click on “WIRED TRANSMITTERS” in the left menu and then click on the device. 2nd option: Type the name of the device in the “Search Device”...
- Page 5 THP101 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THP101 TEMPERATURE HEAD TRANSMITTER Load the “Port COM” corresponding to the THP101. NOTE: If the USB cable has already been connected before opening the device page, “Port COM” will appear in the list, otherwise you need to click on the “...
- Page 6 THP101 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THP101 TEMPERATURE HEAD TRANSMITTER Click on Connect ) button. NOTE: For security reasons, it is only allowed to change the settings during the first 60 seconds after power up. The software will connect to the device. NOTE: If the software is unable to connect to the device, the status is displayed.
- Page 7 THP101 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THP101 TEMPERATURE HEAD TRANSMITTER When the software connects to the device, the “Connected” message will be displayed. While the THP101 transmitter it is in configuration mode, the blue led will flash continuously.
- Page 8 THP101 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THP101 TEMPERATURE HEAD TRANSMITTER To change the default settings, update the value of the desire parameter and select the “Write Device” option. In this example, we change the “Temperature Min.” to 0 and “Temperature Max.”...
- Page 9 THP101 TEMPERATURE HEAD TRANSMITTER INSTALLATION GUIDE step CONNECT AND CONFIGURE THP101 TEMPERATURE HEAD TRANSMITTER Click on to read the current temperature value. Wait for the software to read the values from the device. Wait for status to change to If the device reading fails appears.
- Page 10 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Quinta do Simão TEKON ELECTRONICS 3800-230 Aveiro PORTUGAL a brand of Bresimar Automação S.A. P.: +351 234 303 320 Quinta do Simão M.: +351 933 033 250 3800-230 Aveiro E.: sales@tekonelectronics.com PORTUGAL P.: +351 234 303 320...
