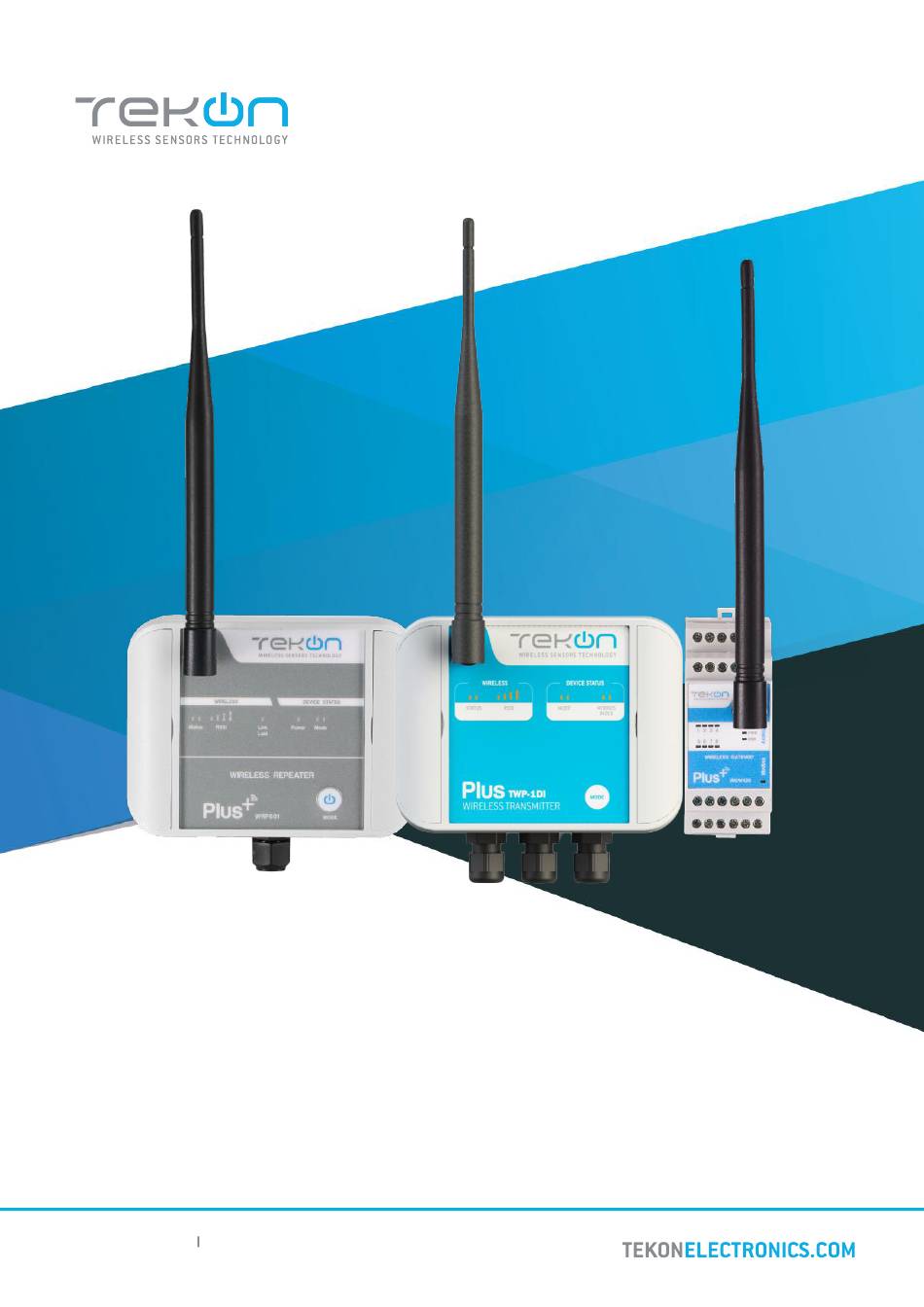

- Page 1 PLUS TWP-xDI INSTALLATION GUIDE IG_PLUS_TWP-XDI_E01A TEKON ELECTRONICS AVEIRO, PORTUGAL +351 234 303 320 +351 933 033 250 sales@tekonelectronics.com...
-
Page 2: Table Of Contents
DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS TWP-xDI WIRELESS TRANSMITTER INSTALLATION GUIDE Table of contents step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Pages 4 to 12 step TWP-XDI PLUS WIRELESS TRANSMITTER CONFIGURATION Pages 13 to 19 step TWP-XDI TRANSMITTER DIGITAL INPUT CONFIGURATION Pages 20 to 24 step TWP-XDI TRANSMITTER DIGITAL OUTPUT CONFIGURATION... - Page 3 DUOS WIRELESS SYSTEM INSTALLATION GUIDE PLUS TWP-xDI WIRELESS TRANSMITTER INSTALLATION GUIDE Table of contents step WRP001 PLUS WIRELESS REPEATER CONFIGURATION Pages 31 to 36 step SITE SURVEY MODE Pages 37 to 38...
-
Page 4: Wgw420 Plus Wireless Gateway Configuration
step step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION WGW420 PLUS WIRELESS GATEWAY CONFIGURATION... - Page 5 INSTALLATION GUIDE PLUS TWP-XDI step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION TEKON CONFIGURATOR SOFTWARE is only compatible with the Microsoft® Windows® Operating System. Connect the antenna to the Gateway. Wiring Connect the power supply and then the RS485-USB cable to the Gateway.
- Page 6 Green LEDs permanently on Red LEDs permanently on WIRELESS GATEWA Y 10 Seconds to enter configuration mode Normal mode Open Tekon Configurator Software and select PLUS >> Gateway >> Configuration Tekon Configurator software is free of charge and available at www.tekonelectronics.com...
- Page 7 INSTALLATION GUIDE PLUS TWP-XDI step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Select serial port corresponding to WGW420 PLUS Wireless Gateway Click on the Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft ® Windows® operating system.
- Page 8 PLUS TWP-XDI INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Perform a power cycle on the Gateway. NOTE: After power up, you have 10 seconds to enter configuration mode by clicking on Connect button ( (while green LEDs are permanently on). In this mode, you can manage device parameters: Modbus Address, Modbus Baudrate, Modbus Parity, Wireless Network ID and Wireless Channel.
- Page 9 INSTALLATION GUIDE PLUS TWP-XDI step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION The status string at the bottom of the software window provides feedback on ongoing operations. You can also verify configuration mode activation by checking LEDs on the gateway. Green LEDs performing scan animation WIRELESS GATEWA Y Configuration mode...
- Page 10 PLUS TWP-XDI INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Take note of device configuration data available, namely: Modbus Address, Modbus Baudrate, Modbus Parity, Wireless Network ID Wireless Channel. NOTE: The wireless network connection between devices is ensured by setting the same Wireless Network ID and Wireless Channel parameters.
- Page 11 INSTALLATION GUIDE PLUS TWP-XDI step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION Modbus Communication Select Modbus tab of the Gateway and set the previously saved configurations. Ensure that Port name, Baudrate, Parity Modbus Address fields are the same as those obtained in configuration mode.
- Page 12 PLUS TWP-XDI INSTALLATION GUIDE step WGW420 PLUS WIRELESS GATEWAY CONFIGURATION NOTE: See WGW420 Datasheet to access LED indication information - page 4. Red LEDs permanently on LED flashes on each wireless communication WIRELESS GATEWA Y...
-
Page 13: Twp-Xdi Plus Wireless Transmitter Configuration
step TWP-xDI PLUS WIRELESS TRANSMITTER CONFIGURATION... - Page 14 Loosen the 4 screws of the case and open it. (Example image) Connect a micro USB cable to the computer and then to TWP-1DI PLUS Wireless Transmitter. (Example image) Open a new window of Tekon Configurator Software and select PLUS >> Transmitter menu.
- Page 15 INSTALLATION GUIDE PLUS TWP-XDI step TWP-xDI PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft® Windows® operating system.
- Page 16 PLUS TWP-XDI INSTALLATION GUIDE step TWP-xDI PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Configuration Mode ) button. LEDs permanently LEDs alternating TWP-1DI...
- Page 17 INSTALLATION GUIDE PLUS TWP-XDI step TWP-xDI PLUS WIRELESS TRANSMITTER CONFIGURATION Configure Wireless Network ID Wireless Channel previously obtained from Gateway. The wireless connection between both devices is ensured by setting the same Wireless Network ID Wireless Channel parameters. Gateway Modbus Index will define the modbus registers window used to store information sent by the transmitter.
- Page 18 PLUS TWP-XDI INSTALLATION GUIDE step TWP-xDI PLUS WIRELESS TRANSMITTER CONFIGURATION Click on Configuration Mode ) button to exit setup and resume normal operating mode. LEDs alternating LEDs flashing until wireless connection is established TWP-1DI permanently When connected to the Gateway...
- Page 19 INSTALLATION GUIDE PLUS TWP-XDI step TWP-xDI PLUS WIRELESS TRANSMITTER CONFIGURATION After clicking on Disconnect button, the device will permanently attempt to connect to a wireless network. If there is no communication, the Status LED flashes slowly and the Mode LED flashes quickly. When there’s a successful connection directly to a wireless network, both status LEDs alternate quickly - during 1 minute if the transmitter is operating as end device or permanently if operating as repeater.
-
Page 20: Twp-Xdi Transmitter Digital Input Configuration
step TWP-xDI TRANSMITTER DIGITAL INPUT CONFIGURATION... - Page 21 Each digital input can be configured, as No Trigger, Raising Edge, Falling Edge, Both ou Counter. To enter in Configuration Mode follow steps 01 to 05 of TWP-xDI PLUS Wireless Transmitter Configuration. Tekon Configurator Software select PLUS >> Transmitter >>...
- Page 22 PLUS TWP-XDI INSTALLATION GUIDE step TWP-xDI TRANSMITTER DIGITAL INPUT CONFIGURATION The status string at the bottom of the software window provides feedback on ongoing operations. Wiring Wire the device according to the diagram below. +24VDC (GND) Digital Input 1...
- Page 23 INSTALLATION GUIDE PLUS TWP-XDI step TWP-xDI TRANSMITTER DIGITAL INPUTS CONFIGURATION Validate configuration by clicking on Read button. NOTE: Configuration and Operation validated. Exit configuration mode and compare data sent by wireless communication. If you are configuring PLUS TWP-2DI, the second digital input will appear on this interface.
- Page 24 PLUS TWP-XDI INSTALLATION GUIDE step TWP-xDI TRANSMITTER DIGITAL INPUT CONFIGURATION If you are using digital input as Pulse Counter, activate Reset Counter option to reset recorded value. Change value of Reset Cnt.[1] to ON.
-
Page 25: Twp-Xdi Transmitter Digital Output Configuration
step TWP-xDI TRANSMITTER DIGITAL OUTPUT CONFIGURATION... - Page 26 PLUS TWP-XDI INSTALLATION GUIDE step TWP-xDI TRANSMITTER DIGITAL OUTPUTS CONFIGURATION To enter in Configuration Mode follow steps 01 to 05 of TWP-1DI PLUS Wireless Transmitter Configuration. Tekon Configurator Software select PLUS >> Transmitter >> Digital Outputs menu Remote Control Output Digital output remotely controlled by Gateway modbus protocol.
- Page 27 Connection to gateway established Using the Tekon Configurator you can change the State of Remote Output by setting the modbus register on the gateway. The Gateway will send the information in the next time the transmitter performs a communication.
-
Page 28: Wgw420 Gateway Analog Outputs Configuration
step WGW420 GATEWAY ANALOG OUTPUTS CONFIGURATION... - Page 29 INSTALLATION GUIDE PLUS TWP-XDI step GATEWAY ANALOG OUTPUTS Follow steps 06 and 07 of the PLUS Wireless Gateway Configuration. Tekon Configurator Software select PLUS >> Gateway >> Analog Outputs menu Considering the transmitter configuration with GTW Modbus Index=1, there is a Gateway Modbus Address Window corresponding to Modbus address window [0-19].
- Page 30 PLUS TWP-XDI INSTALLATION GUIDE step GATEWAY ANALOG OUTPUTS Link Analog Output Index 1 (Gateway) to Pulse Counter 1 (Transmitter) and configure MB Add Link according to the previous step. Set minimum and maximum values and click on Write 4000 (4mA) 20000 (20mA) NOTE: Output index 1 is linked to modbus address [9], according to mapping table of step 03.
- Page 31 step WRP001 PLUS WIRELESS REPEATER CONFIGURATION...
- Page 32 CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Loosen the 4 screws of the case and oppen it. Connect a micro USB cable to the computer and then to WRP001 PLUS Wireless Repeater. Open a new window of Tekon Configurator Software and select PLUS >> Repeater menu.
- Page 33 INSTALLATION GUIDE PLUS TWP-XDI step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click on Rescan Ports button. Select corresponding Port name You can check device’s serial port name in “Device Manager” on Microsoft® Windows® operating system.
- Page 34 PLUS TWP-XDI INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Click on Configuration Mode ) button. permanently LEDs flashing until wireless connection is established ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER permanently...
- Page 35 INSTALLATION GUIDE PLUS TWP-XDI step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER Configure Wireless Network ID Wireless Channel previously obtained from Gateway. Click on Write button to update Transmitter settings. Click on Configuration Mode ) button to exit setup and resume normal operating mode.
- Page 36 PLUS TWP-XDI INSTALLATION GUIDE step CONNECT AND CONFIGURE THE PLUS WIRELESS REPEATER permanently LEDs flashing until wireless connection is established permanently ANALOG WIRELESS TRANSMITTER WIRELESS REPEATER Connection to the Gateway established Connection to the Gateway not established...
- Page 37 step SITE SURVEY MODE...
- Page 38 PLUS TWP-XDI INSTALLATION GUIDE step SITE SURVEY MODE Site survey mode is a tool that allows a quick wireless signal strength evaluation at the site of installation. It doesn’t require additional equipment or software. This feature is available in all the transmitters and repeater from PLUS Product Family. Press and hold Mode ( ) button untill Status LEDs are permanently on and Mode LEDs flash.
- Page 39 TEKON ELECTRONICS a brand of Bresimar Automação S.A. Avenida Europa, 460 Quinta do Simão 3800-230 Aveiro PORTUGAL Sales P.: +351 234 303 320 M.: +351 933 033 250 E.: sales@tekonelectronics.com Technical Support E.: support@tekonelectronics.com...
