Pacbrake 10580 KIT Installation Manual

Kickback-style mud flaps

Download this manual

10580 KIT

KickBack-style Mud Flaps

KITS AVAILABLE IN:

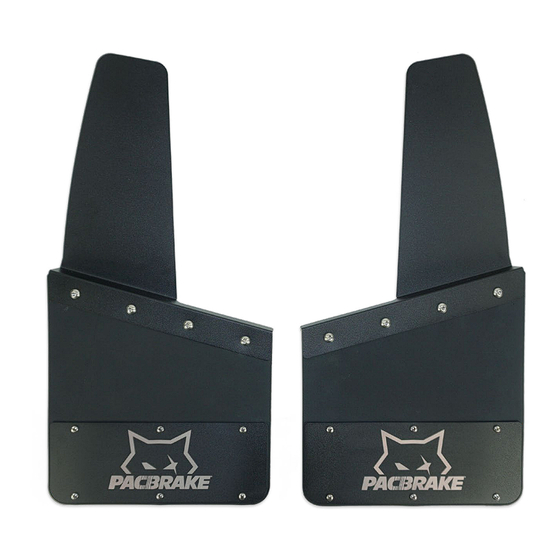

Built for big tires, and even bigger protection, providing the

perfect clearance right where you need it.

* See application guide for proper fitment.

Universal Application*

12"W x 10"L

►

12"W x 12"L

►

14"W x 12"L

►

14"W x 14"L

►

L6588_REV1_04.15.2024 ECN 1-2743

Need help?

Do you have a question about the 10580 KIT and is the answer not in the manual?

Page 1 10580 KIT KickBack-style Mud Flaps Universal Application* 12”W x 10”L KITS AVAILABLE IN: ► 12”W x 12”L ► 14”W x 12”L ► 14”W x 14”L ► Built for big tires, and even bigger protection, providing the perfect clearance right where you need it.
Page 2 KickBack-Style Mud Flaps Kit - Universal L6588 Thank you and congratulations on the purchase of a KickBack-style Mud Flaps Kit. Please read the entire manual prior to starting the installation to ensure you can complete it once started. FRONT REAR KIT CONTENTS Please make sure all the items shown in the kit contents are provided in your kit before starting the installation.
Page 3 KickBack-Style Mud Flaps Kit - Universal L6588 INSTALLATION INSTRUCTIONS Remove OEM mud flaps / mud guards and fasteners if equipped. Remove OEM fasteners securing panels or trim in mounting location. Align flap in wheel well in desired mounting position with bottom of mud flap parallel to the ground (as shown in Figure 3). Ensure bottom of flap is at least 76.2 mm [3”] above the ground.
Page 4 KickBack-Style Mud Flaps Kit - Universal L6588 Use F size drill in locations marked for self-drilling screws. (Reference Figure 6 below) Drill applicable clearance hole sizes in locations marked for OEM fasteners. PLEASE NOTE: Drill holes through mud flap bracket only. DO NOT DRILL HOLES IN VEHICLE.
