HP10121 KIT
Dodge Ram 4500/5500 Chassis Cab 2WD/4WD*
Sterling Bullet 4500/5500 Chassis Cab 2WD/4WD*
* See application guide for proper fitment.

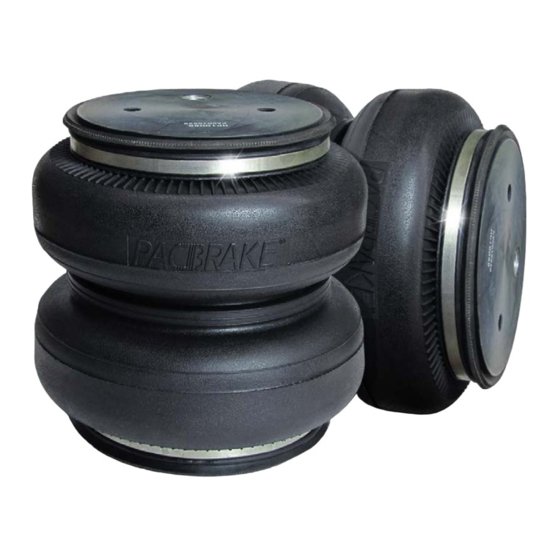

Use the most advanced air springs on the market to eliminate your vehicle's sag, sway
and bottoming out. Pacbrake air suspension levels your truck's stance while providing
added support for an overall smooth and safe ride.
Advertisement
Table of Contents
Related Manuals for Pacbrake HP10121 KIT
Summary of Contents for Pacbrake HP10121 KIT
- Page 1 * See application guide for proper fitment. Use the most advanced air springs on the market to eliminate your vehicle’s sag, sway and bottoming out. Pacbrake air suspension levels your truck’s stance while providing added support for an overall smooth and safe ride.
-
Page 2: Kit Contents
M10 X 1.5 X 35mm bolt (8) HP1134 " - 16 x 1 " bolt (4) HP1227 " Small Flat Washer (4) C653 Air Line/Valve Assembly HP1344 Tie Strap (6) C11618 Pacbrake is a registered trademark of Pacbrake Co. L5934.REV10_16.07.2018... - Page 3 Please read the entire installation manual prior to starting the installation to ensure you can complete it once started. Pacbrake recommends using a good quality anti-seize on all fasteners, this will reduce the chances of corrosion of the fasteners, and help facilitate removal if required at a later date.
-
Page 4: Installation On The Vehicle
Remove the bolt and bracket and re-install the bolt. STEP 8 On the passenger side only, compress the shock absorber to allow the e-brake cable to be moved to the forward side of the shock absorber. Pacbrake is a registered trademark of Pacbrake Co. L5934.REV10_16.07.2018... -
Page 5: Installing The Air Spring
Install the large flat washers and nylock nuts provided. Loosely install the axle straps to the carriage bolts using the large flat washers and nylock nuts provided. Pacbrake is a registered trademark of Pacbrake Co. L5934.REV10_16.07.2018... - Page 6 Bend the two center tabs of the heat shield supplied for fastening to the exhaust pipe as shown. Attach the heat shield with the gear clamps supplied to the exhaust pipe to protect the air spring. Pacbrake is a registered trademark of Pacbrake Co. L5934.REV10_16.07.2018...
-
Page 7: Warranty
OPTIONAL ACCESSORIES Pacbrake offers an optional dual needle air gauge to monitor the pressure in each air spring from the vehicles cab. Pacbrake offers a full line of air compressors, air tanks and solenoids to control your air spring system.
