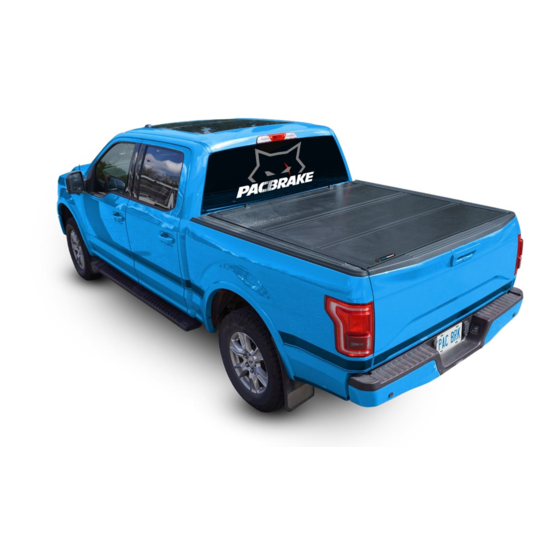

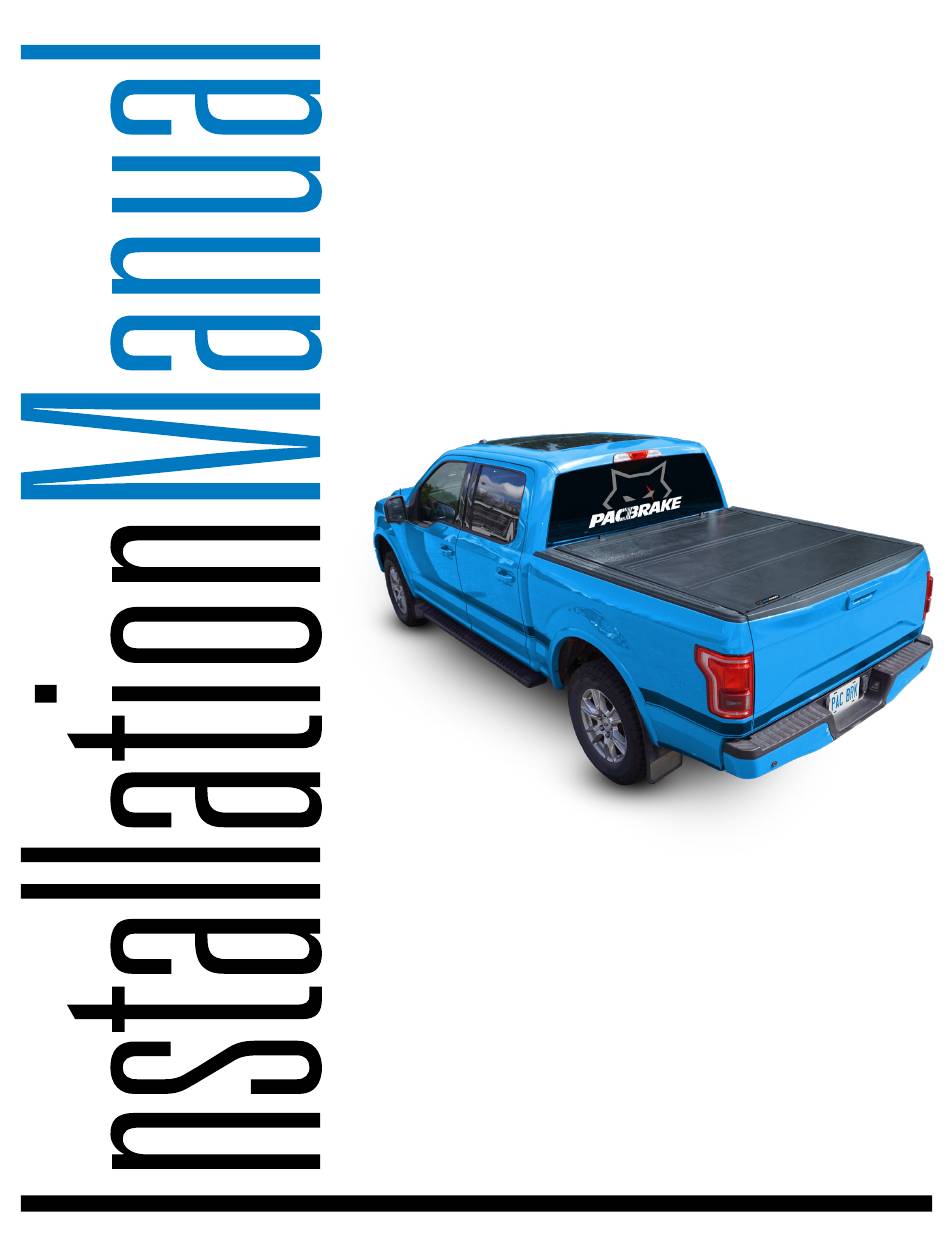

- Page 1 ALUMINUM HARD FOLDING TONNEAU COVER KIT Low profile, aluminum, hard-folding tonneau covers give you full bed access, maximum cargo protection and a built in drainage system that keeps water off your stuff. * See application guide for proper fitment. L6582_REV2_06.23.2022...
- Page 2 Aluminum Hard Folding Tonneau Cover Kit L6582 Thank you and congratulations on the purchase of a Aluminum Hard Folding Tonneau Cover Kit. Please read the entire manual prior to starting the installation to ensure you can complete it once started.
- Page 3 Aluminum Hard Folding Tonneau Cover Kit L6582 INSTALL THE WEATHER PROOF SEAL Wipe the surface of the bulkhead with alcohol or cleaner, to avoid any debris. Apply the weather proof strip seal along the top of the bulkhead. SETTING THE SLIDE RAILS With the tailgate closed, place the left &...
- Page 4 Aluminum Hard Folding Tonneau Cover Kit L6582 SET THE COVER Take the cover in the folded position and place it on the slide rails towards the front of the truck bed (as shown in Figure 4A on the previous page) with the smallest panel facing up.
- Page 5 Aluminum Hard Folding Tonneau Cover Kit L6582 PROP ROD INSTRUCTIONS Adjust the rod length to ensure the cover is perfectly attached to the truck bed (as shown in Figure 8A). The rod can be locked into place by using the latch (as shown in...
- Page 6 Aluminum Hard Folding Tonneau Cover Kit L6582 TONNEAU COVER OPERATION OPENING TONNEAU COVER Release latches are located in the front corners on each side of every panel in the tonneau cover. To open, pull one latch and lift the panel.
