Cudy GS105 Quick Installation Manual

1 Overview
1
V D E

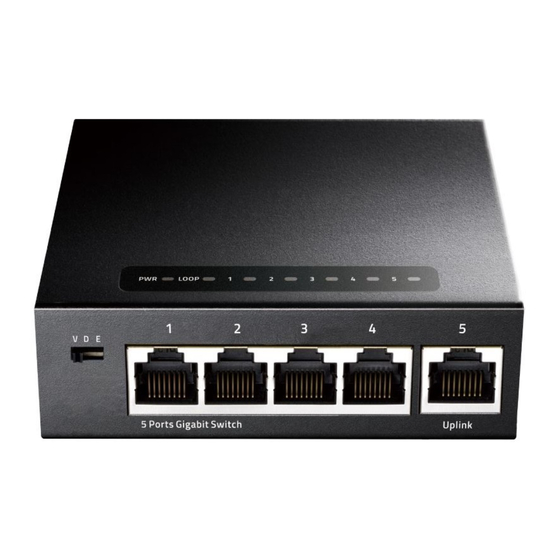

5 Ports Gigabit Switch
2
DIP Explanation
VLAN
Port Isolation
(1-4Ports)
Default Standard Switch
Extend
Link Extension
(1-4Ports)
3
Specifications
Model GS105
Power DC 5V
Ethernet
5*RJ45 10/100/1000Mbps Ports
Switching Capacity 10Gbps
Throughput 7.44Mpps
Packet Buffer 1M
MAC Address 1K
Jumbo Frame 2K
Transfer Mode Store and forward
MTBF 100000 hour
GS105
2 3 4 5
Uplink
Downlink designated ports are isolated
from each other, only transmit data with
the uplink port.
All ports communicate freely
The specified port speed drops to 10Mbps/s,
max PoE transmission is 250 meters.
1 2
V D E
8 Ports Gigabit Switch
VLAN
Port Isolation
(1-6Ports)
Default Standard Switch
Extend
Link Extension
(1-6Ports)
Model GS108
Power DC 5V
Ethernet
8*RJ45 10/100/1000Mbps Ports
Switching Capacity 16Gbps
Throughput 11.9Mpps
Packet Buffer 2.5M
MAC Address 1K
Jumbo Frame 2K
Transfer Mode Store and forward
MTBF 100000 hour
GS108
3 4 5 6 7
Uplink
Downlink designated ports are isolated
from each other, only transmit data with
the uplink port.
All ports communicate freely
The specified port speed drops to 10Mbps/s,
max PoE transmission is 250 meters.
8
