Cudy GS2018PS2 Quick Installation Manual

Hardware Connection
1
Power Socket
PoE/ACT
1 3 5 7 9 11 13 15 17 19
SW
SYS
Power input:
2 4 6 8 10 12 14 16 18 20
PWR
AC100-240V
LNK/ACT
Specifications
2
Model GS2018PS2
AC100-240Vđ50/60Hz
AC INPUT
Ethernet Port 16 * 10/100/1000Mbps PoE Port
2* 10/100/1000Mbps Uplink Port
2* 1000Mbps SFP Port
1 * RJ45 Console Port
Bandwidth 40Gbps
Packet Forwarding rate 29.76Mpps
DDR SDRAM 128MB
Flash Memory 16MB
Packet Buffer Memory 4M
Link
Act
Link
Act
1 3 5 7
Reset Console 2 4 6 8
Router
Internet
MAC Address
Jumbo frame
VLANs
Fiber Medium
Working Environment
Powered Device (PD)
IP Camera Wireless AP

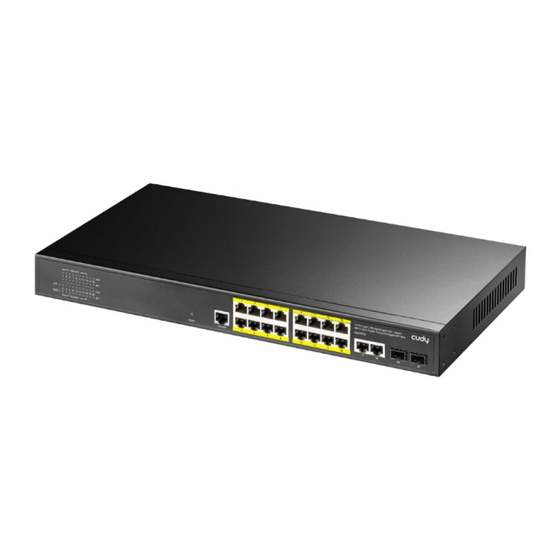

9 11 13 15 16-Port Layer 2 Managed Gigabit PoE+
Switch with 2 Uplink Gigabit Ports and
2 Gigabit SFP Slots
GS2018PS2
10 12 14 16
17 18
NVR
8K
9.6Kbytes
4096
Multi-mode Fiber: 50/125a62.5/125a100/140um
Single-mode Fiber: 8/125a8.7/125a9/125a10/125um
Operating temperature: -20~50°C
Storage temperature: -40~85°C
Operating Humidity: 10%~90%, No condensation
Storage Humidity: 5%~90%, No condensation
Working height: Up to 10,000 feet
Storage height: Up to 10,000 feet
Smart VoIP
19 20
SFP Slot
Monitor
