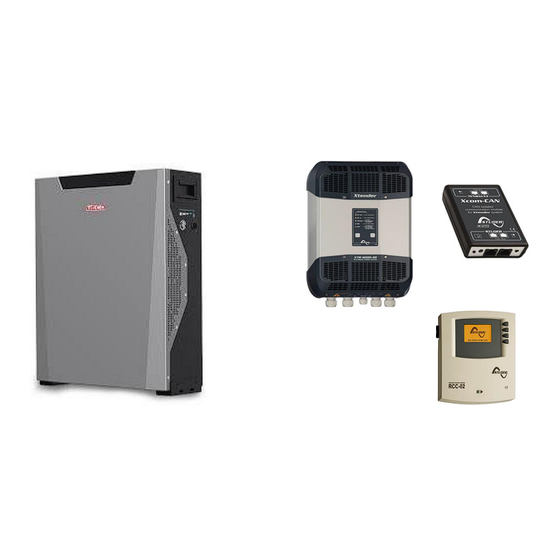

- Page 1 STUDER XTENDER SINGLE PHASE QUICK GUIDE STUDER XTENDER INVERTER + XCOM & RCC-02 Whole Power Range Studer Xtender Hybrid 220Vac Single Phase Inverter Quick Configuration Guide Studer Single Phase Inverter Configuration...
- Page 2 STUDER XTENDER SINGLE PHASE QUICK GUIDE Preparations: Open the connection lid to access the connection board of the inverter, CAN port, Grid and Battery Power Connection Terminal are all located here. INVERTER CAN PORTS CAN PORT-1 TO BATTERY (A) XCOM CAN...
- Page 3 STUDER XTENDER SINGLE PHASE QUICK GUIDE Step 1. Safety Preparation For Safety reason it is forbidden to install any power inputs such as PV, GRID or BATTERY before having completed all the data wiring connection as explained below. • The PV cables cannot be conneted at this stage •...
-
Page 4: Led Green
STUDER XTENDER SINGLE PHASE QUICK GUIDE Step 2. Communication Settings Before connecting the battery to the Xcom-CAN, you need to set the terminations of the communication devices. Xcom-CAN internal: Change the DIP switch settings match the picture and the image below Step 1.1 CAN Connection... - Page 5 STUDER XTENDER SINGLE PHASE QUICK GUIDE RCC-02 internal: Termination switches are set to the left Xtender external: Termination Switch to the right of the two RJ45 Ports The battery Can Port-A connect to the CAN PORT-1 of the XCom device.
- Page 6 STUDER XTENDER SINGLE PHASE QUICK GUIDE Step 3. Battery Preparation Keep the BMS switch on “0” OFF. Set the DIP Switch of the battery in accordance with the relevant manual. Connect the provided CAN cable RJ45 to the CAN A port.
- Page 7 STUDER XTENDER SINGLE PHASE QUICK GUIDE Step 4. Battery Power Connection Keep Inverter and Battery OFF. Connecting the power Cables from the battery to the Inverter. Use a Torque Wrench to secure the cables bolt. INVERTER OFF BATTERY OFF Battery Torque: 9.5 Nm...
- Page 8 Step 5. Battery FW Upgrade and Protocol Set Download the WeCo Bluetooth APP from Google Play of from APP Store. The Bluetooth APP will allow you to inspect the battery, set the battery and monitor the BMS functions during the commissioning phase.
-
Page 9: Protocol Set Up
STUDER XTENDER SINGLE PHASE QUICK GUIDE Protocol Set Up Wait until pop up confirms that the update process is successful, then proceed to set the inverter protocol. Swipe UP to reach the bottom of the page. SET StuderCAN ATTENTION Turn Off the battery to proceed with the remaining operations. - Page 10 STUDER XTENDER SINGLE PHASE QUICK GUIDE Step 6. Inverter Protocol Set up If all the previous steps have been done correctly, the RCC-02 Device must show the information as per picture below. ATTENTION, IMPORTANT To ensure that all the information are properly displayed and received by the inverter it is necessary to make a double control.
-
Page 11: Battery Charge
STUDER XTENDER SINGLE PHASE QUICK GUIDE The whole system is ready to work: BATTERY CHARGE BATTERY DISCHARGE To enable the WeCo WiFi Monitoring App, please follow the relevant manual available on our Web Site https://wecobatteries.com/download-area/...
