Terminal Block
U
Y
M Y1 Y2
L1 / Ln
Note: To avoid damages to electronic components caused by the PCB bending, do not press too much while fixing the ter-
minal block.
Label
Description
L1
24 V AC/DC
Ln
0 V
Y
0..10 V DC
M
0 V (Common)
Y1
Open
Y2
Close
V+
16 V DC
M
0 V (Common)
U
2÷10 V DC
M
0 V (Common)
Terminals correspondence with respect to other iSMA CONTROLLI actuators models.

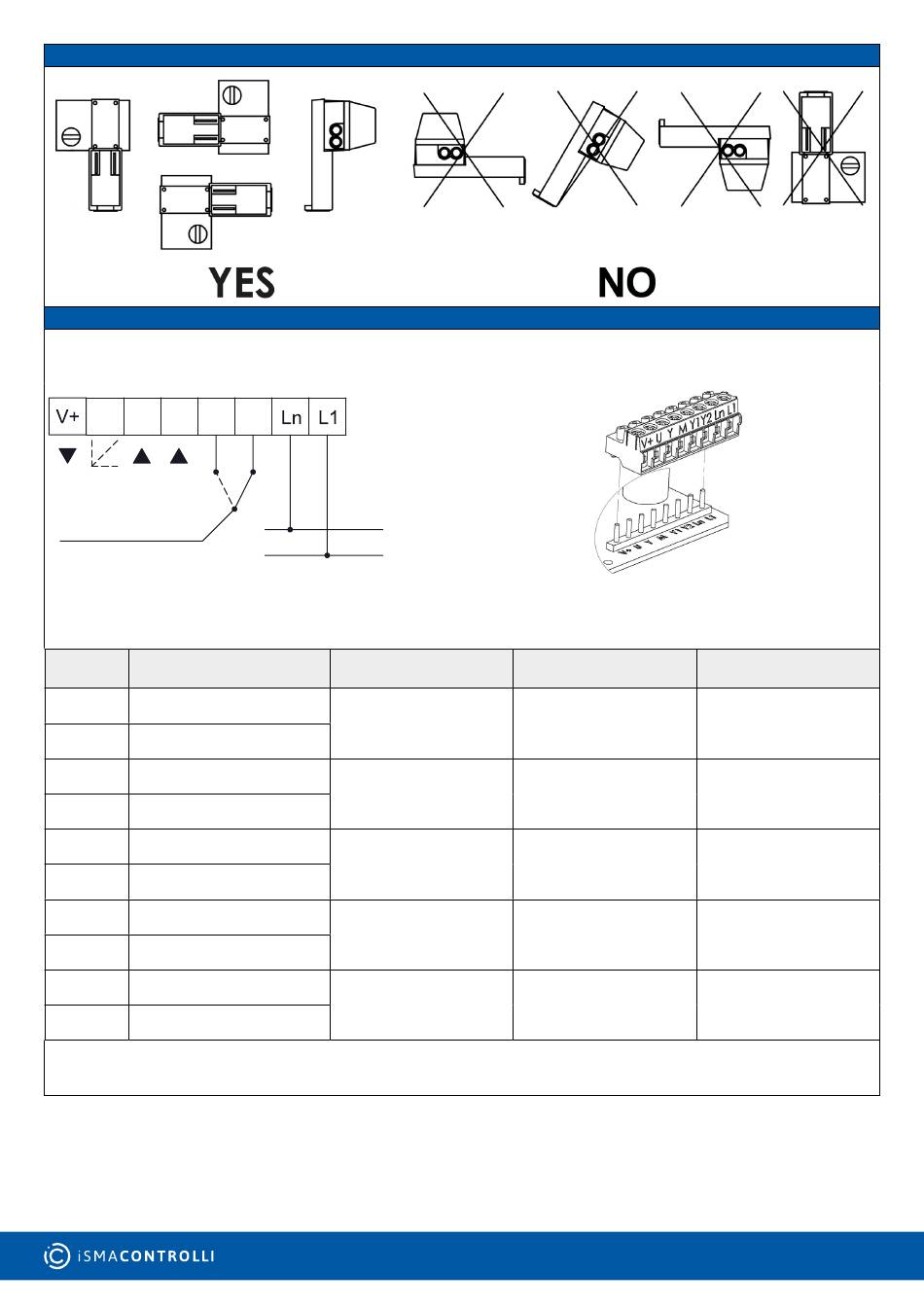

MOUNTING POSITIONS

WIRING DIAGRAM

0 V
24Vac/dc
Function
Power supply
Modulating control input
Floating control input
Voltage output (max. 25
mA)
Feedback output signal
www.ismacontrolli.com
Min Wire Size (# AWG)
1.5 mm
(AWG16)
2
0.5 mm
(AWG20)
2
0.5 mm
(AWG20)
2
0.5 mm
(AWG20)
2
0.5 mm
(AWG20)
2
DIM263en | 1
Issue rev. 2 | 07/2022
st
Max wire Length
75 m
200 m
200 m
200 m
200 m
page 2
