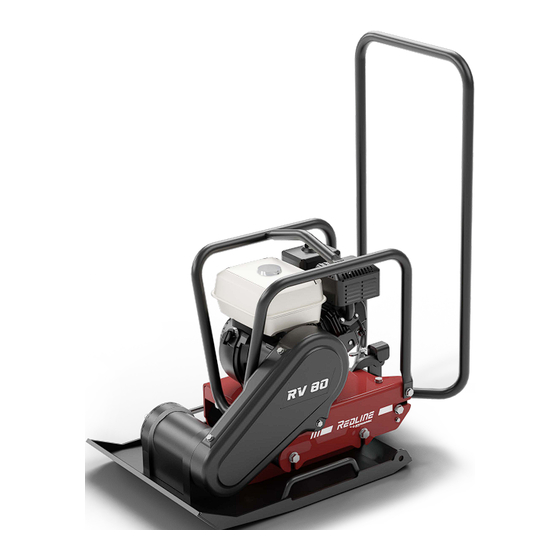

- Page 1 INSTRUCTION MANUAL RV80 Forward Plate ENGINE: Honda GX160 PART NUMBER : 4812334800 RV80 Forward Plate...
- Page 2 Paver Finisher RV80 Vibratory Plate Compactor RV80...
-
Page 3: Table Of Contents
Table of Contents Table of Contents Foreword ................1 Safety Instruction ..............2 Safety Information Label Locations ..........3 Technical Specifications ............6 Dimension ................7 Operating Instructions - Quick Guide ......... 9 Transport ................11 Transport to work site ..............11 Instruction for lifting machine ............ - Page 4 Table of Contents RV80...
-
Page 5: Foreword
REDLINE GmbH. We wish you successful work with your REDLINE machine. Dynapac Road Construction Equipment (India) Pvt. Ltd. Plot no 01, Gat no. 163-168, Alandi Markal road, Village: Fulgaon, Taluka: Haveli, Dist: Pune- 412216, India dynapac-redline.com... -
Page 6: Safety Instruction
Operation Manual - Safety Instruction Safety Instruction - Laws governing safety aspects on machinery may vary between countries, but the following guides will be useful to all operators: - Before starting, carefully read the machine maintenance and operating manual and follow all the instructions. -
Page 7: Safety Information Label Locations
Operation Manual - Safety Information Label Locations Safety Information Label Locations RV80... - Page 8 Operation Manual - Safety Information Label Locations Pictogram Meaning Read and understand the supplied operator’s manual before operating this machine. Wear ear protection Wear eye protection Wear boots RV80...
- Page 9 Operation Manual - Safety Information Label Locations Pictogram Meaning WARNING! Hand injure if caught in moving belt. Always replace belt guard. Check exciter housing oil level SAE 30W A nameplate listing the model number, serial number, is attached to each unit. please record the information found on this plate so it will be available should the nameplate become lost or damaged.
-
Page 10: Technical Specifications
Operation Manual - Technical Specifications Technical Specifications Model’s cat. no RV 80 Honda Gasoline Weight Net Weight kg. Operating Weight kg. Compaction Data Vibr. Frequency Hz Centrifugal Force kN 11.70 Compaction Area m²/hour Operation Data Max. Forward speed m/min Capacities Oil for exciter housing liters 0.13 SAE 30... -
Page 11: Dimension
Operation Manual - Dimension Dimension Handle in the working position Handle in the folding position RV80... - Page 12 Operation Manual - Optional Extra Optional Extra DESCRIPTION PART NO. QTY. Vulcalon plate 4812086408 RV80...
-
Page 13: Operating Instructions - Quick Guide
Operation Manual - Operating Instructions - Quick Guide Operating Instructions - Quick Guide Always read the full instructions in operating manual before first use. RV80... - Page 14 Operation Manual - Operating Instructions - Quick Guide RV80...
-
Page 15: Transport
Operation Manual - Transport Transport Transport to work site - To avoid burns or fire hazards, let engine cool before transporting machine or storing indoors. - Turn fuel valve to the off position and keep the engine level to prevent fuel from spilling. - Tie the machine to the vehicle to prevent sliding or tipping over. -
Page 16: Important Advice
Operation Manual - Important Advice Important Advice The manufacturer declines all responsibility for loss or damage resulting from misuse or any modification or alteration that does not conform to the manufacturer’s original specifications. At the workstation, the sound pressure level may exceed 85 db (A). In this case individual protection measures must be taken. -
Page 17: Honda Gx160
Operation Manual - Honda GX160 Honda GX160 RV80... - Page 18 Operation Manual - Honda GX160 Part no. Part no. RV80...
