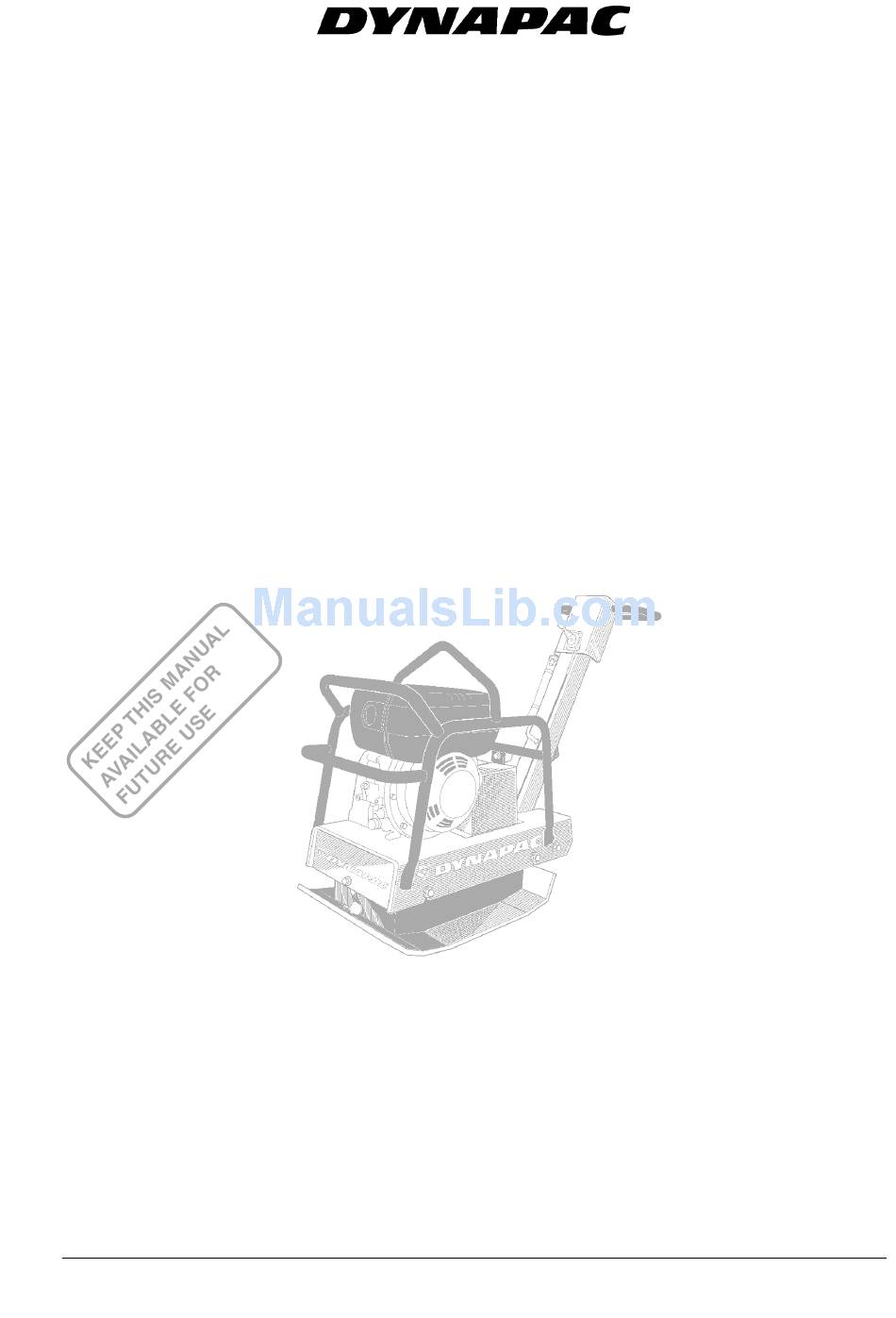

Dynapac LG140 Operation & Maintenance Manual

Forward and Reversing Vibrating Plate

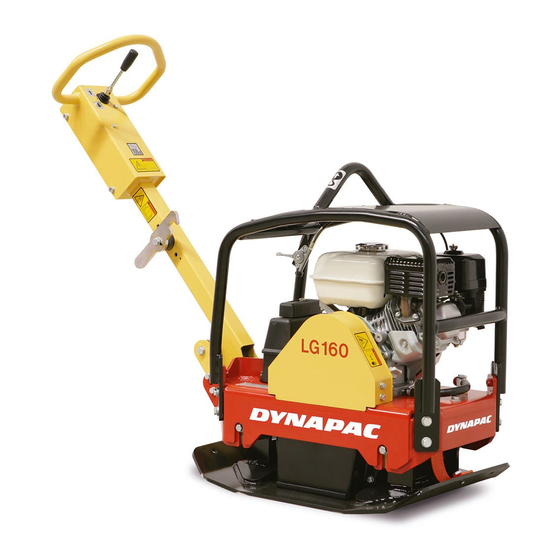

The Dynapac LG140/160/200 are compact Forward/Reverse Vibratory Plates with excellent com-
paction data. Speed and compaction depth are regulated steplessly via hydraulic servo control of
the eccentric element. This gives the plate smooth motion and makes it very easy to operate.
All-round plates for compaction work close to piles and concrete bases. Also for floor filling and
foundations as well as backfill in pipe trenches. The LG160 is ideal for compaction on block paving
and patching work. The LG200 is an ideal plate for compacting sand and gravel in cable and pipe
The handle is suspended on special shock absorbers to keep it free from vibrations. A protection
frame with single-point lifting lug is covering all vital parts of the machine. The LG plates are desig-
ned for operation in well ventilated spaces, as all combustion engine machines.
LG140/160/200
Operation & Maintenance
ILG140EN4, June 2002
Petrol Engine:
Honda GX160
Honda GX200
Diesel Engine:
These instructions apply from:
LG140 PIN (S/N)
LG160 PIN (S/N)
LG200 PIN (S/N)
LG200 PIN (S/N)
trenches, foundation work, road repairs, etc.
We reserve the right to change specifications without notice.
Printed in Sweden (safety instructions included).
Hatz 1B20
*31400001* Honda/Hatz
*31600001* Honda/Hatz
*32000001* Honda
*32001123* Hatz
