Summary of Contents for Dynapac BG70

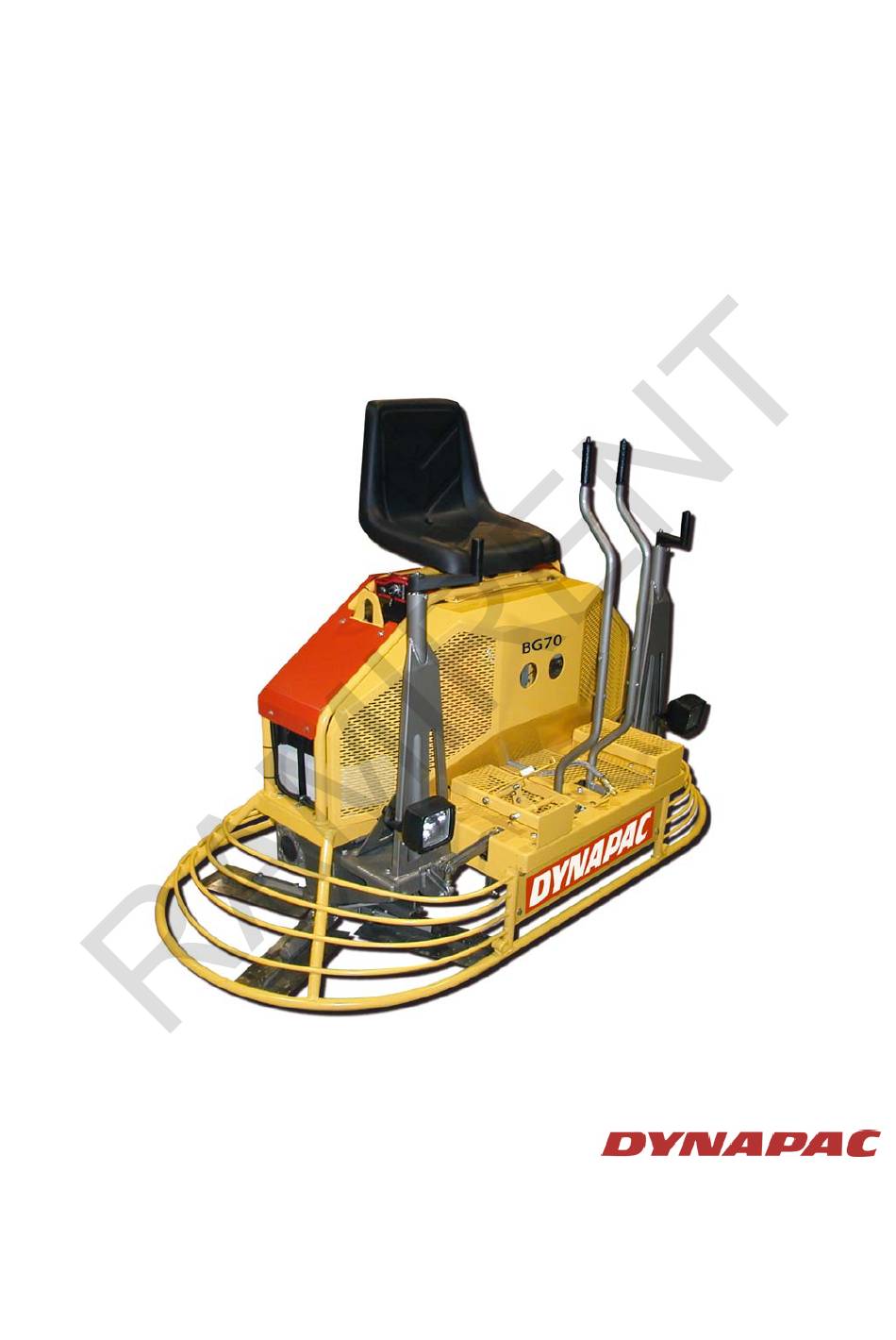

- Page 1 DYNAPAC CONCRETE EQUIPMENT BG70 Power Floats INSTRUCTIONS & SPARE PARTS CATALOGUE BG70 - IS - 10682 - ENG...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS - MACHINES SUBMITTED : Powered with : Electric, Pneumatic, Petrol or Diesel engine. - SYMBOLS : The words WARNING and CAUTION used in safety instructions, have the following meanings : WARNING indicates hazards or hazardous procedures which could result in serious injury or death if the WARNING is not observed. -
Page 3: Power Supply
- POWER SUPPLY : WARNING Make sure that the power supply equipment complies with the relevant safety requirements of the local and the international standards. - Electric machine : It must be ensured that the machine is connected to the voltage and the frequency specified on the name plate. - Page 4 GENERAL The DYNAPAC ride on double floats BG70 is designed for large surfaces trowelling. Working width 1830mm 72" feature two four blades rotors. DESIGN BG70 is driven by a twin cylinder four strokes petrol engine (1). It is equipped with a safety switch which stops the engine if the operator leaves the seat (2).
-
Page 5: Technical Data
TECHNICAL DATA BG70 Europe BG70 USA P/N 368678 P/N 368942 Operating weight Kg-(lb) 300-(551) 300-(551) Working Width mm-(in) 1830-(72) 1830-(72) Blade speed (rpm) 70 to 160 70 to 160 Number of blades 2 Smoothing disks Overlapping POWER UNIT Make Honda... -
Page 6: Maintenance
Install belts over clutch and pulley. Start engine and check clutch operation and adjust belt if required. Reinstall belt guard. PART NUMBERS : BG70 HBA H P/N 368678 BG70 HBA H USA P/N 368942 Set of (x2) smooting discs P/N 368979 Set of (x8) blades... - Page 7 WIRINGS DIAGRAM...
