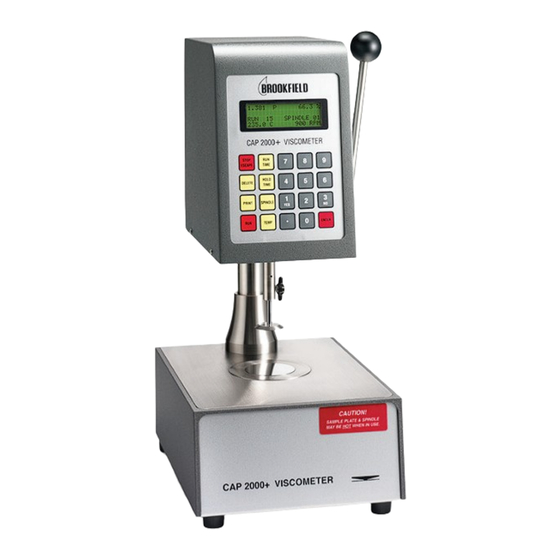

Ametek BROOKFIELD CAP2000+ Quick Start Manual

CAP2000+ Quick Start Guide
Instrument Operation Instructions and Product Registration
As a part of AMETEK Brookfield's sustainability initiative, we have now moved to a
digital download format for instrument operation instructions (manuals). For a free
download to obtain your manual, simply follow the steps below:
• Access the 'Manuals' section of the AMETEK Brookfield online store
navigation bar using the following link or QR code:
store.brookfieldengineering.com/manuals/
▪
For customers outside of the US, you may need to access your regional
AMETEK Brookfield online store.
• Sign into the online store to access your account.
▪
You may need to create a free account if you do not have one already.
• Navigate to your instrument.
• Download your manual by using the link provided.
• To ensure faster support, please visit the following link to register your
instrument: www.brookfieldengineering.com/contactus/register-product
Instrument Setup
• Set the viscometer on a clean level bench surface.
• Do not lift the viscometer by the handle or head, only
by the base console or column.
• Remove shipping foam insert (P/N CAP-122) from the
plate area on the CAP Viscometer.
• Store the foam insert for future use when shipping or
transporting CAP Viscometer
• Verify that the viscometer's power requirements match
your power source before connecting it to power.
▪
The AC input voltage and frequency must be within
the appropriate range as shown on the back of the
viscometer head.
▪
The CAP Viscometer must be earth grounded.
Use the three (3) wire power cord.
• Connect the power cord to the viscometer and to the
power supply (source).
• If using a printer, connect the printer cable to the
printer port and printer.
• Ensure that both the printer and the CAP 2000+ are
o when connecting cables.
