Summary of Contents for geratech EGE-UHD-HDB-KVM

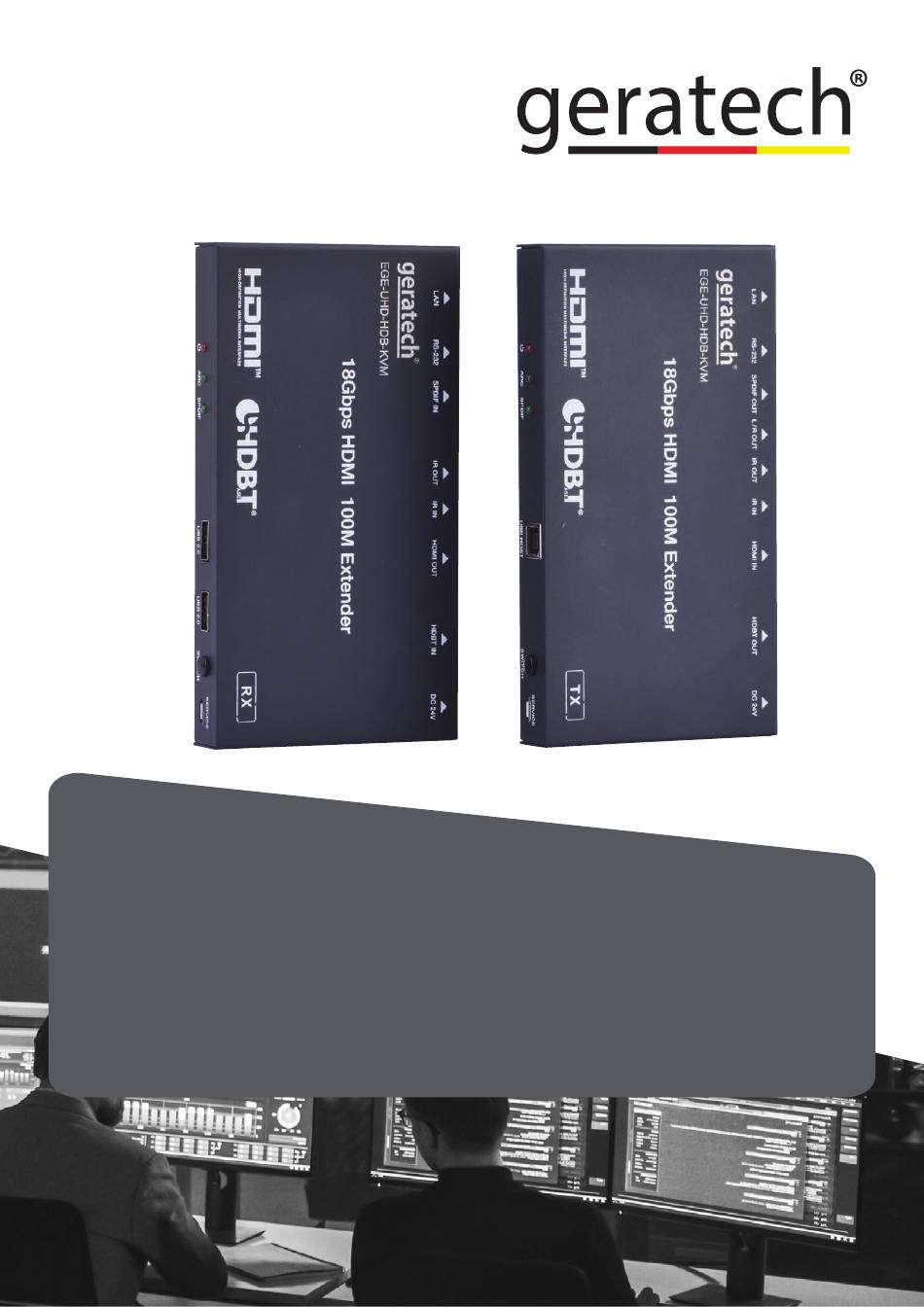

- Page 1 EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology...
-
Page 3: Table Of Contents
EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. -
Page 4: Introduction
EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology 1. Introduction This 18Gbps HDMI Extender can extend high definition video / audio signal, RS-232, bi-directional IR and internet signal, at the distance of up to 328ft / 100 meters between transmitter and receiver via a single CAT6a/7 cable and support resolution up to 4K2K@60Hz 4:4:4. -
Page 5: Specifications
EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology 4. Specifications Technical HDMI Compliance HDCP 2.2 / HDCP 1.4 Video Bandwidth 18Gbps Video Resolution 4K2K 50/60Hz 4:4:4 4K2K 50/60Hz 4:2:2 4K2K 50/60Hz 4:2:0 4K2K 30Hz 4:4:4 1080p, 1080i, 720p, 720i, 480p, 480i... - Page 6 EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology Receiver Inputs: 1x HDBT IN [RJ45, 8-pin female] 1x SPDIF IN [S/PDIF] Outputs: 1x HDMI Type A [19-pin female] 1x LAN [RJ45] Control: 1x IR IN [3.5mm Stereo Mini-jack] 1x IR OUT [3.5mm Stereo Mini-jack]...
-
Page 7: Operation Controls And Functions
EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology 5. Operation Controls and Functions 5.1 Transmitter Panel Name Function Description Red LED is on when the Transmitter is working. Power LED LED is off when the Transmitter is on standby. -
Page 8: Receiver Panel
EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology IR IN IR input port for receiving the signal of IR remote. IR output port for control of source device. This IR IR OUT output signal is from IR IN port of the Receiver. -
Page 9: Audio Signal Output Switching
EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology Illuminate: Transmitter and Receiver are in good Connection Signal connection status. Indicator lamp (on the left side of the Flash: Transmitter and Receiver are in poor HDBT OUT connection status. -
Page 10: Ir Pin Definition
EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology 5.4. IR Pin Definition IR Receiver and Blaster pin’s definition is as below: Note: When the angle between the IR receiver and the remote control is ± 45 °, the transmission distance is 0-5 meters; when the angle between the IR receiver and the remote control is ±... -
Page 11: Application Example
EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology 6. Application Example... - Page 12 EGE-UHD-HDB-KVM 4K HDMI & USB KVM Extender with HDBase-T Technology...
- Page 13 www.geratech.eu...
