geratech EGE-UHD-EXTIP-KVM Manual

Hdmi / vga over ip extender with scaler and kvm functions
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EGE-UHD-EXTIP-KVM
HDMI / VGA over IP Extender with scaler and KVM functions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EGE-UHD-EXTIP-KVM and is the answer not in the manual?

Questions and answers

Related Manuals for geratech EGE-UHD-EXTIP-KVM

Summary of Contents for geratech EGE-UHD-EXTIP-KVM

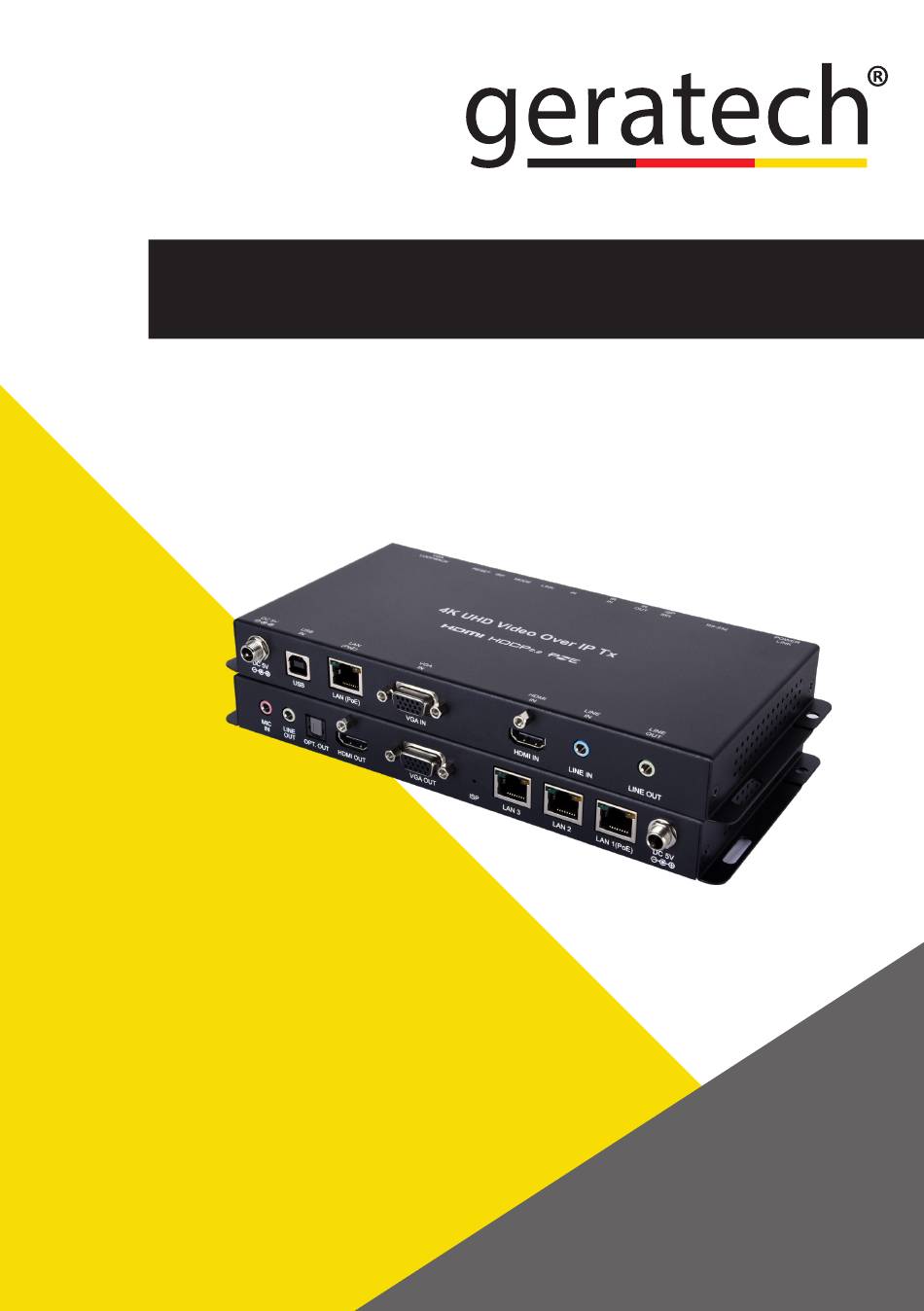

  • Page 1 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Geratech assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Geratech assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: •...

  • Page 5: Table Of Contents

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions CONTENTS 1. Introduction .................1 2. Applications ................1 3. Package Contents ..............1 4. System Requirements ............2 5. Features................2 6. Operation Controls and Functions ........4 6.1 Transmitter's Front Panel ..........4 6.2 Transmitter's Rear Panel ..........6...

  • Page 6: Introduction

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 1. INTRODUCTION This 4K UHD Multi-Function Extender with KVM over TCP/IP allows you to transmit HDMI or VGA signals over CAT5e/6/7 network cable. This extender supports the transmission of Ultra High-Definition signals (up to 4K@30Hz YUV 4:4:4 or 4K@60Hz YUV 4:2:0) along with audio and USB up to 100m on a single cable.

  • Page 7: System Requirements

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions • 1 x 5V/4A DC Power Adaptor • Operation Manual 4. SYSTEM REQUIREMENTS • HDMI or VGA source equipment such as media players, video game consoles PCs or set-top boxes.
  • Page 8 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions • Supports IR and RS-232 bypass • Device has an info OSD and can be controlled via WebGUI and front panel controls...

  • Page 9: Operation Controls And Functions

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 6. OPERATION CONTROLS AND FUNCTIONS 6.1 Transmitter's Front Panel POWER RESET LINK RS-232 LINK MODE LOOPBACK 7 8 9 1011 POWER LED: This LED will flash BLUE while the unit is powering on and will illuminate solid BLUE once it is ready to be used.
  • Page 10 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions within direct line-of-sight of the IR Extender. IR: Accepts IR signals for control of this unit only. LINK: The link status will be disabled and enable after press button.

  • Page 11: Transmitter's Rear Panel

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 6.2 Transmitter's Rear Panel DC 5V: Plug the 5V DC power adapter into the unit and connect it to an AC wall outlet for power. USB: Connect with PC for loading Receiver’s USB for data transmits to Transmitter over IP.

  • Page 12: Receiver's Front Panel

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 6.3 Receiver's Front Panel POWER VIDEO RESET LINK USB 2.0 USB 1.1 SWITCH LINK MODE RS-232 5 6 7 8 9 10 11 12 POWER LED: This LED will flash BLUE while the unit is powering on and will illuminate solid BLUE once it is ready to be used.
  • Page 13 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions back on and it will be in the default auto IP and multicast modes. The IP address will be assigned automatically within the 169.254.xxx.xxx address range MODE: Selects to video mode for streaming data. Please continue to press this button for 3 seconds to setting Anti-Dither mode 1 bit, 2 bit, or off for ATI Graphic card.

  • Page 14: Receiver's Rear Panel

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 6.4 Receiver's Rear Panel LINE OPT. LAN 3 LAN 2 LAN 1 DC 5V HDMI (PoE) LINE DC 5V HDMI OUT VGA OUT OPT. OUT LAN 3 LAN 2 LAN 1(PoE) ETHERNET: Connect from audio source equipment with 3.5mm phone...

  • Page 15: Webgui (To Be Updated)

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 6.5 WebGUI (to be updated) Connect both Transmitter and Receiver with active networks through CAT5e/6/7 and make sure both networks are under the same zone. On the Receiver side connect the display from HDMI output port and the screen will display both Transmitter/Remote IP and Receiver/Local IP.
  • Page 16 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions Version Information simply shows the device’s firmware version and its Web- GUI’s firmware version. Update Firmware providing user to upload updated firmware in field.
  • Page 17 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions Utilities allow users to set the device setting back to factory default and or reboot the device. On the Transmitter side only it allows user to set the EDID...
  • Page 18 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions Statistics shows all the detail information regards of the device itself and the connected device including network information, link status and link mode.
  • Page 19 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions Network allow user to choose IP mode, IP address and device’s mode. It is required to reboot once resetting the system, casting mode must adjust the hardware LINK PAIR SEL together in order to function properly.
  • Page 20 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions Lastly, Function allows user to choose functions over IP/Transmitter or Receiver. By selecting Video over IP allows Receiver output display video instead of graphic image (When video mute or disconnected with video, it will return to OSD from WebGUI), USB over IP allows the selected device to get hold of the USB control right and Serial over IP is to set RS-232’s baud...
  • Page 21 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions...

  • Page 22: Connection Diagram

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 7. CONNECTION DIAGRAM DVD/Blu-ray Player PC/Laptop VGA Monitor 1.5m 60° HDMI RS-232 IR Out Input Bypass Output Powered Speakers Power Supply 1 2 3 4 VGA Input, Analog Auido Input &...

  • Page 23: Support Timing & Audio Table

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 8. SUPPORT TIMING & AUDIO TABLE *HDMI Input: Up to 4096x2160p 60Hz YUV420 *HDMI Output: HDMI input of 4096x2160 @60 YUV4:2:0 will automatically converts to output of 4096x2160@30(RGB) *VESA VGA up to 1920x1200 60Hz Pixel clock <...
  • Page 24 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions OUTPUT RESOLUTION HDMI √ √ 640x480p@60 √ 720x480p@59/60 √ √ 720x576p@50 √ √ 800x600p@60 √ √ 1024x768p@60 √ √ 1280x720p@50/59/60 √ 1280x768p@60 √ √ 1280x960p@60 √ √ 1280x1024p@60 √...
  • Page 25 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions Audio Table Unicast: Audio input connection Audio output TX HDMI In RX HDMI Out & RX Line Out TX Line In RX Line Out TX HDMI In & TX Line In...
  • Page 26 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions DTS-HD High Resolution Audio DTS-HD Master Audio Linear PCM Linear PCM 2 ch 44.1 kHz Linear PCM 2 ch 88.2 kHz Linear PCM 2 ch 176.4 kHz Linear PCM 2 ch 32 kHz...

  • Page 27: Specifications

    EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 9. SPECIFICATIONS Transmitter Input Ports 1 x HDMI 1 x VGA 1 x Audio line in 1 x USB in (USB2.0) 1 x IR IN Output Port 1 x CAT5e/6/7...
  • Page 28 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions 1 x IR OUT 2 x USB 1.1 (for keyboard and mouse) 2 x USB 2.0 (for thumb drive and USB2.0 supported device, the USB camera or external hard disk with USB...
  • Page 29 EGE-UHD-EXTIP-KVM HDMI / VGA over IP Extender with scaler and KVM functions...
  • Page 30 www.egerate-store.com...
