Back Panel Connector
Description
Installing the 56K LAN
Modem
Before You Begin
Table 4 Front Panel LED Indicator Definitions (continued)
LED
Color
Coll
Amber
Ports 1-4
Green
The back panel provides the following components.
10-18 VDC
0.8 A MAX
Power
Connector

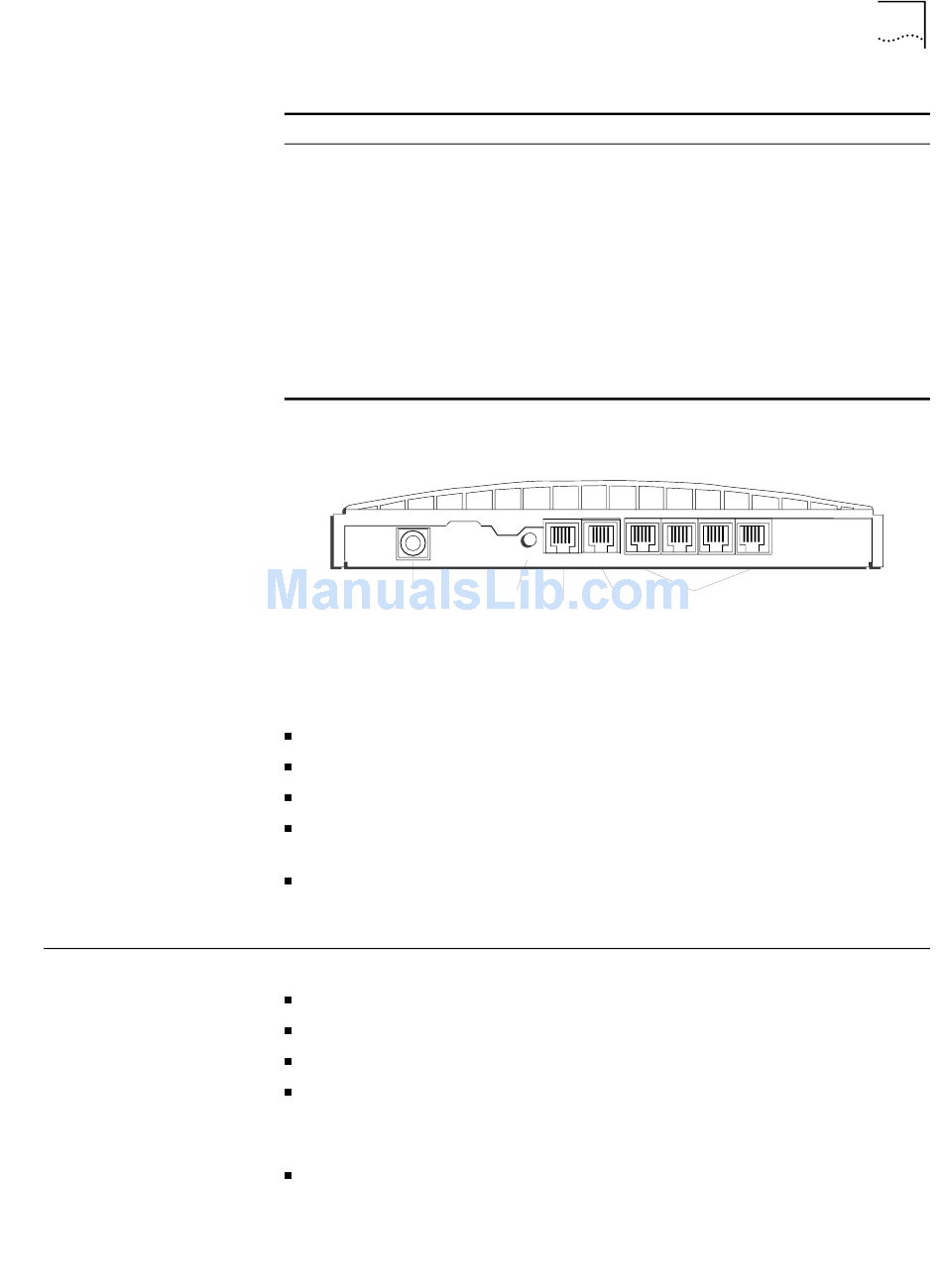

Figure 10 56K LAN Modem Back Panel
From left to right the back panel consists of the following.
Power: Connect the power module cable to this port.
Reset: Press this button to re-initialize the unit.
Line: Connect the provided RJ-11 analog line from the wall outlet to this port.
Phone: Connect an external analog device, such as a telephone or fax
machine, to this port.
Four 10BASE-T Ethernet Ports: Connect the computers on your LAN, or an
external hub, to these ports.
This section describes how to do the following.
Install the analog cable
Connect to a 10BASE-T Ethernet LAN
Install analog equipment
Install the power cable
Before you begin, you will need the following in addition to the 56K LAN Modem:
RJ-11 (6-pin) to RJ-11 (6-pin) telephone cable which was provided in your
modem package.
Description
Ethernet Collision Status. Flashes amber when some collisions
are taking place on the Ethernet LAN.
Off indicates that no collisions are taking place on the Ethernet
LAN.
Ethernet LAN Port Status. On indicates that the unit detects the
Ethernet link integrity signal from an attached computer and
operation is normal.
Flashes when the LAN Modem receives data on the associated
port.
Off indicates the unit does not detect the Ethernet link integrity
signal. The Ethernet cable may not be properly connected or the
cable may be the wrong polarity.
RESET
4
LINE
PHONE
Reset Button
Telephone
Analog
10BASE-T Connectors
Line
Device
Installing the 56K LAN Modem
1
3
LAN
2
Four Ethernet
