INDUSTRIAL
VACUUMS
SV1-470-MBS
INSTRUCTION
INSTRUCTION
MANUAL
MANUAL
GEBRAUCHS-UND
GEBRAUCHS-UND
WARTUNGSANLEITUNGEN
WARTUNGSANLEITUNGEN
INSTRUCTIEHANDLEIDING
INSTRUCTIEHANDLEIDING
ISTRUZIONI PER L'USO
ISTRUZIONI PER L'USO
E LA MANUTENZIONE
E LA MANUTENZIONE
INSTRUCTIONS D'UTILISATION
INSTRUCTIONS D'UTILISATION
ET D'ENTRETIEN
ET D'ENTRETIEN
INSTRUCCIONES DE USO
INSTRUCCIONES DE USO
Y MANTENIMIENTO
Y MANTENIMIENTO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SV1-470-MBS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for MaxVac SV1-470-MBS

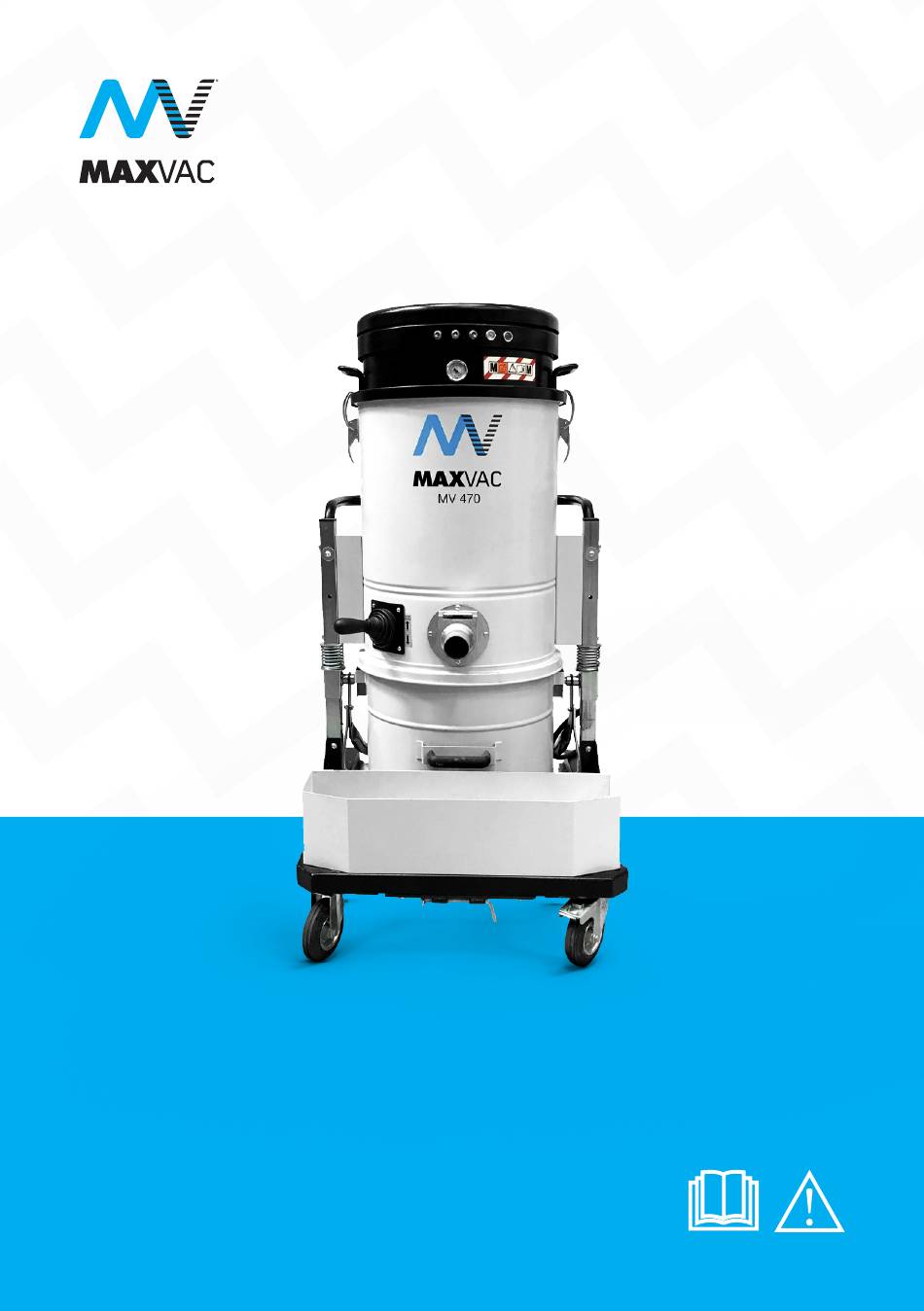

  • Page 1 INDUSTRIAL VACUUMS SV1-470-MBS INSTRUCTION INSTRUCTION MANUAL MANUAL GEBRAUCHS-UND GEBRAUCHS-UND WARTUNGSANLEITUNGEN WARTUNGSANLEITUNGEN INSTRUCTIEHANDLEIDING INSTRUCTIEHANDLEIDING ISTRUZIONI PER L’USO ISTRUZIONI PER L’USO E LA MANUTENZIONE E LA MANUTENZIONE INSTRUCTIONS D’UTILISATION INSTRUCTIONS D’UTILISATION ET D’ENTRETIEN ET D’ENTRETIEN INSTRUCCIONES DE USO INSTRUCCIONES DE USO Y MANTENIMIENTO...
  • Page 2 The competent Law Court for all disputes is that of Switzerland. Even partial reproduction of the graphic project, the text and the The manual must be kept with the illustrations is legally forbidden. vacuum cleaner in case of resale! © Copyright MAXVAC S.r.l. 2018 MAX-VAC.COM...
  • Page 3: Table Of Contents

    INFORMATION SECTION 1.1 Identification of main parts 1.2 Identification details of manufacturer 1.3 Marking plate 1.4 Intended uses 1.5 Allowed environmental conditions 1.6 Noise level 1.7 Storage 1.8 Scrapping 1.9 Technical details 1.10 Warranty SAFETY SECTION 2.1 Safety details 2.2 Safety warnings 2.3 Safety plates and symbols 2.4 Outstanding risks 2.5 Applied directives...
  • Page 4: Technical Specifications

    TECHNICAL SPECIFICATIONS 1.1 Identification of main parts ON/OFF commands Grip for handling Filtering chamber Filter shaking lever Suction nozzle Collection container or vacuumed material Container release lever Accessory holder MAX-VAC.COM...
  • Page 5: Identification Details Of Manufacturer

    INFORMATION 1.2 Identification details 1.3 Marking plate of manufacturer In compliance with the Machine Sales & Service Directive 2006/42/CE on vacuum Mülibodenstrasse 3 cleaners, the machine is fitted with CH-8172 Niederglatt CE plates. Zürich, Schweiz T +41 ( 0 ) 43 411 4195 When contacting the manufacturer W max-vac.com or dealer, always quote the details...
  • Page 6: Intended Uses

    INFORMATION 1.4 Intended uses of explosive atmosphere. These specific vacuum cleaner 1.6 Noise level 1.7 Storage models have been designed, built Noise level readings were taken Remove the filter and clean it, and protected for vacuuming dusts in accordance with the provisions empty the container and store the and solid materials only, using of Machine Directive 2006/42/CE...
  • Page 7: Technical Details

    INFORMATION TECHNICAL SPECIFICATIONS Power Vacuum mBar Voltage V Hz 400-50/60 Max. air flow rate Noise level dB (A) Intake Opening Filter surface 24,000 Dust Bin Weight* Dimensions 66 x 80 x 130 (*) weight without packaging - packaging weight = 18 Kg MAX-VAC.COM...
  • Page 8: Warranty

    INFORMATION 1.10 Warranty and machines shall be sent to MAXVAC guarantees this vacuum use not in compliance with the us carriage free (transport costs cleaner model for a period of 24 instructions in the instruction to be paid by the user, unless...
  • Page 9: Safety Details

    Accidents can often be and on the product. that are not explicitly recommended avoided by recognising potentially by MAXVAC, make sure no hazards dangerous situations before these Unless these hazard messages are exist for operators and others. occur. Operators should be aware...
  • Page 10: Safety Warnings

    SAFETY 2.2 Safety warnings • Using the machine to vacuum • Use of the machine without toxic substances is forbidden the supplied filters is not unless this has been equipped recommended. Attention! with special filters required The following indications are, by •...
  • Page 11 • Do not vacuum lit cigarette ends. against water spray and check supplied by MAXVAC, make sure The filter could be damaged. mechanical strength. the safety conditions required by Machine Directive 2006/42/CE are •...
  • Page 12 • In the event of this manual being • In the event of an extension being lost or damaged, ask MAXVAC used, make sure this is in perfect a new copy. condition, marked CE and that • Structural damage and improper...
  • Page 13: Safety Plates And Symbols

    MAXVAC. If a plate is and advice contained in this manual as the graphic symbols to be used. affixed to a replaced part, make sure a...
  • Page 14: Handling

    INSTALLATION 3.1 Handling The instructions below also include the operations to be carried out in the event that the vacuum must be packed or unpacked again for subsequent transport. The vacuum must be lifted and handled only using a forklift whose load bearing capacity is suited to the weight.
  • Page 15 INSTALLATION 3.2 Unpacking Cut and remove the two packaging fasteners with a screwdriver remove the staples that secure the carton to the pallet Remove the carton, loosen and remove the fastening screws and brackets from both sides The cardboard packaging is recyclable and should be collected separately to prevent environmental impact.
  • Page 16 In the event that one or more components are damaged, do not continue with installation and inform MAXVAC about the anomaly and Insert the hose equipped with a Insert the accessory according to the agree upon the actions to be taken.
  • Page 17: Description Of Controls

    OPERATION 4.1 Description of controls 4.2 Operating cycle Warning! Before inserting the plug, ensure that the voltage of the power supply line corresponds to that indicated on the vacuum’s identification plate. • Ensure that the power plug is Attention! inserted correctly into the socket. Do not shift the vacuum while it is PRESSURE GAUGE: Indicates an operating.
  • Page 18 OPERATION Warning! Warning! During operation, prevent the hose Do not, under any circumstance, from rolling up or bending. use the machine with a clogged filter. The M65 models feature a vacuum gauge indicating the level of negative Attention! pressure inside the vacuum. The If the vacuum is not working vacuum gauge indicates the condition properly after having cleaned the...
  • Page 19: Emptying The Refuse Container

    OPERATION 4.3 Emptying the refuse container Attention! Wear PPE (gloves, dust mask, goggles, etc.) during this operation. According to the amount and type of extracted material, it is important to periodically verify the refuse container, preventing it from filling up excessively. •...
  • Page 20: Inserting & Locking The Container

    OPERATION 4.4 Inserting and locking the 4.5 Storage - refuse container decommissioning Place the container under the Remove the filter and clean it; empty vacuum, holding the lever raised, the refuse collection container and until it stops against the stop store the vacuum in a place protected fully lower the lever that locks the against weather agents with the...
  • Page 21: Informative Notes

    MAINTENANCE 5.1 Informative notes expertise and is always available All the operations described above for prompt interventions. As must be carried out with the plug This section describes the for interventions carried out disconnected from the socket (and verifications and routine maintenance by the user, the vacuum must the air disconnected from the CCA operations required to ensure...
  • Page 22 Run a few trial operating type (information c/o MAXVAC cycles after every maintenance this operation requires the skills of operation to ensure proper machine an electrician.
  • Page 23: Replacing The Filters

    MAINTENANCE 5.4 Replacing the filters To replace the filters, proceed as follows: • Turn off the vacuum cleaner by pressing the motor STOP buttons. • Disconnect the vacuum cleaner plug from the power socket. Attention! The Safety Manager has the precise duty of determining the professional capacities and skills of such persons.
  • Page 24 To assemble the new filter, Important! proceed in reverse order: Use only genuine MAXVAC filters • Insert the filter into its support ring, locking it by means of the fastening clamp (H) lock the filter to the cage tying the wires on its lower side.
  • Page 25 MAINTENANCE 5.4 H-filter (or HEPA filter) The HEPA filter is capable of retaining almost 100% of vacuumed dust. The vacuum equipped with this type of filter must be periodically verified relative to the filtering ability. Attention! To replace the HEPA filter wear appropriate PPE (dust mask, protective goggles, latex gloves, To replace the HEPA filter, remove...
  • Page 26: Troubleshooting

    Check that there is voltage in the socket Check the electric plug and power cord Circuit breaker tripped Reset the circuit breaker Contact the MAXVAC technical service centre Shake the filter. Should this not be The vacuum gauge indicates an Clogged filter enough, replace it...
  • Page 27 Notes MAX-VAC.COM...
  • Page 28 Notes MAX-VAC.COM...
  • Page 29 Notes MAX-VAC.COM...
  • Page 30 Mülibodenstrasse 3 CH-8172 Niederglatt Zürich, Schweiz T +41 ( 0 ) 43 411 4195 max-vac.com...
