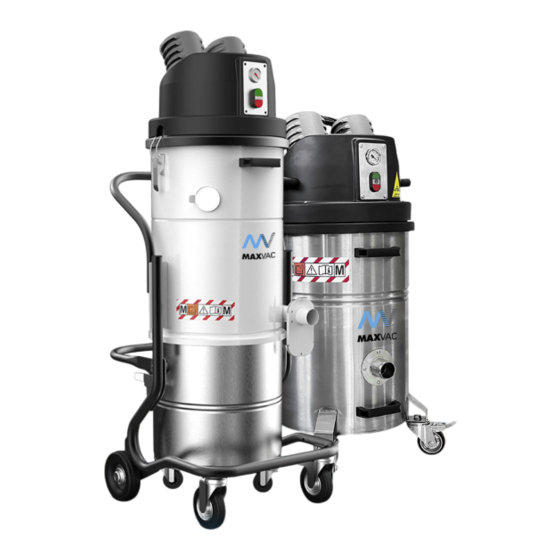

- Page 1 INDUSTRIAL VACUUMS SV1-430-MBA-A45R-Z22-II3D SV1-430-MINI-Z22 INSTRUCTION INSTRUCTION MANUAL MANUAL GEBRAUCHS-UND GEBRAUCHS-UND WARTUNGSANLEITUNGEN WARTUNGSANLEITUNGEN INSTRUCTIEHANDLEIDING INSTRUCTIEHANDLEIDING ISTRUZIONI PER L’USO ISTRUZIONI PER L’USO E LA MANUTENZIONE E LA MANUTENZIONE INSTRUCTIONS D’UTILISATION INSTRUCTIONS D’UTILISATION ET D’ENTRETIEN ET D’ENTRETIEN INSTRUCCIONES DE USO INSTRUCCIONES DE USO...
-
Page 3: Table Of Contents
ENGLISH INSTRUCTION MANUAL WARNINGS KEY TO SYMBOLS TECHNICAL SPECIFICATIONS OPERATION MAINTENANCE FILTER CARTRIDGE REPLACEMENT TROUBLESHOOTING EU DECLARATION OF CONFORMITY SV1 RANGE MAX-VAC.COM... -
Page 4: Warnings
WARNINGS The appliances described in this manual are suitable for: Vacuuming dust and liquids. Professional use (e.g. hotels, schools, hospitals, factories, shops, offices and rental agencies). The 'M' Category is suitable for the separation of dry powders (as long as they are not explosive, inflammable and/or carcinogenic) with maximum permeability <0.1% and MAC (Maximum Allowable Concentration) ≥0.1mg/m3 Carefully keep this instruction manual. -
Page 5: Risk Of Falling
Use an extension cable only if in perfect conditions and make sure that the cross-section is appropriate for the power of the appliance plus the power of the electric tool. Never leave the appliance running unattended. If the discharge air is released back into the working environment, it must have a sufficient Class 'M' air exchange index. - Page 6 Repairs may only be carried out by specialists who keep the original spare parts supplied by the manufacturer. Repairing the appliance yourself can be extremely dangerous. In compliance with the regulations in force, appliances that are to be discarded must be made unusable by cutting the power cable before disposal. The appliance should be decontaminated by vacuum cleaning methods and wiped clean or treated with sealant before being taken out of a hazardous area.
- Page 7 Maintenance and cleaning must be carried out in a room with adequate ventilation and in such a way as not to endanger the operators or other persons. Clean the place where maintenance is carried out in order to prevent that hazardous substances are dispersed into the environment.
- Page 8 If the power cable is damaged, it must be replaced by the manufacturer or approved technical service centre or in any case by a person with similar qualification so as to prevent any risk. CAUTION This machine shall be stored indoors only. Frequently clean the seat where the safety float slides and periodically inspect it to check its integrity.
-
Page 9: Key To Symbols
SYMBOLS DESCRIPTION SYMBOLS INSTRUCTIONS Read Attention Note Operator the instructions indicates warning for Manual before using the a potential proper use Instructions for appliance. hazardous situation. KEY TO SYMBOLS Socket for Connection Wet & dry “Self- electric tools for pneumatic vacuum cleaning tools... -
Page 10: Technical Specifications
TECHNICAL SPECIFICATIONS SV1 430 MBA A45R Z22 SV1 425 MINI 230 V~ 110/230 V~ Power supply voltage 50/60 50/60 Frequency 230V = 1200 W 1.1-1.5kW Power Rating 220m 220m Maximum airflow approx Drum made of 45 Litres 45 Litres Rated drum capacity MAX suction approx Motor type 516 x 545 x 1303 mm... -
Page 11: Operation
OPERATION Controls SV1 430 MBA A45R Z22 Controls SV1 425 MINI 1. Start 2. Stop 1. I/O switch: VACUUM CLEANER START/STOP 3. Gauge 4. Voltage indicator 2. Vacuum gauge Operation Cycle Ensure that the power cord is intact and in perfect state. Before inserting the plug, ensure that the voltage of the power supply line corresponds to that indicated on the vacuum’s identification plate. - Page 12 Before turning the vacuum cleaner on again, ensure that the pump has been stopped completely. To move the vacuum cleaner, use the special handles situated on the front part of the machine. On the vacuum cleaner there is a vacuum gauge (2) which indicates vacuum value inside the vacuum cleaner.
- Page 13 Lower the shutter (detail no. 7, chap. 1.2) and resume normal use. The AirPulse cleaning system only works with the vacuum cleaner switched on. Emptying the container Depending on the type and quantity of material being vacuumed, it is necessary to check periodically the dirt container to avoid filling it excessively.
- Page 14 Inserting and locking the bin Follow the steps below to insert and lock the bin: • Insert the container under the vacuum, aligning the closing hooks (A) with the corresponding parts (B) located on the filter chamber • Lift the bin towards the chamber, and lock the closing hooks. If necessary get help from a second person Upper limb crushing hazard! Never insert your hands between the dirt container and the...
-
Page 15: Maintenance
MAINTENANCE Special vacuum maintenance must be carried out solely by specialised technicians authorised by MaxVac. This section describes the checks and routine maintenance operations required to ensure proper vacuum operation. Maximum reliability and minimum maintenance costs are the result of a planned maintenance and inspection schedule carefully followed throughout the entire lifespan of the vacuum. - Page 16 At least once every three months (or more frequently, according to the operating cycle and the conditions of use), the manufacturer or a qualified technician must check the filters, ensuring that they are not damaged; and ensuring proper operation of the control devices. Should maintenance operations or repairs be carried out, all contaminated objects must be adequately cleaned, placed in waterproof bags and disposed of in compliance with the regulations in force.
- Page 17 It is the Chief Safety Officer’s duty to ensure the professionalism and skills of these technicians. Before starting any maintenance operation, the Chief Safety Officer must: • Keep unauthorised personnel out of the work area. • Ensure that the necessary tools are in good conditions and readily available to the maintenance technician.
- Page 18 Check that the power cord and the plug are not damaged: replace them immediately if there are any signs of wear, using a cord of the same type (information c/o MaxVac). This operation is the sole responsibility of an electrician.
-
Page 19: Filter Cartridge Replacement
FILTER CARTRIDGE REPLACEMENT Wear appropriate PPE (dust mask, latex gloves, goggles, etc.). Proceed as follows to replace the filter: • Switch the vacuum cleaner off • Disconnect the vacuum cleaner from the electricity supply • Unlock the closing hooks on both sides. •... - Page 20 To reassemble the filter, operate in reverse order: • Insert the new filter to the filter chamber • Tighten the cartridge fastening screws • With the help of a second person, apply the junction (E) spring and screws for the AirPulse cleaning system to the filter chamber (F) support and tighten the special nut, then apply the disk lid (D) fastening screws to the cleaning system junction and tighten the appropriate nut.
-
Page 21: Troubleshooting
TROUBLESHOOTING Problems Causes Solutions The appliance will No power Check that the power not start socket is working Defective power cord, Contact your technical switches or motor. service centre (see attached list). Reduced Drum too full Empty Drum Efficiency Filter cartridge is dirty Thoroughly clean or or caked. -
Page 22: Eu Declaration Of Conformity
Do not dispose of electrical appliances with household waste! In compliance with European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE) and its implementation in accordance with national law, electric tools that have reached the end of their lifecycle must be collected separately and returned to an environmentally compatible recycling facility. - Page 23 Mülibodenstrasse 3 CH-8172 Niederglat Zürich, Schweiz +41(0) 43 411 4195 max-vac.com Version 1.1...
