Quick Installation Guide
TEG-S2620i
H/W: V1.0R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEG-S2620I and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TRENDnet TEG-S2620I

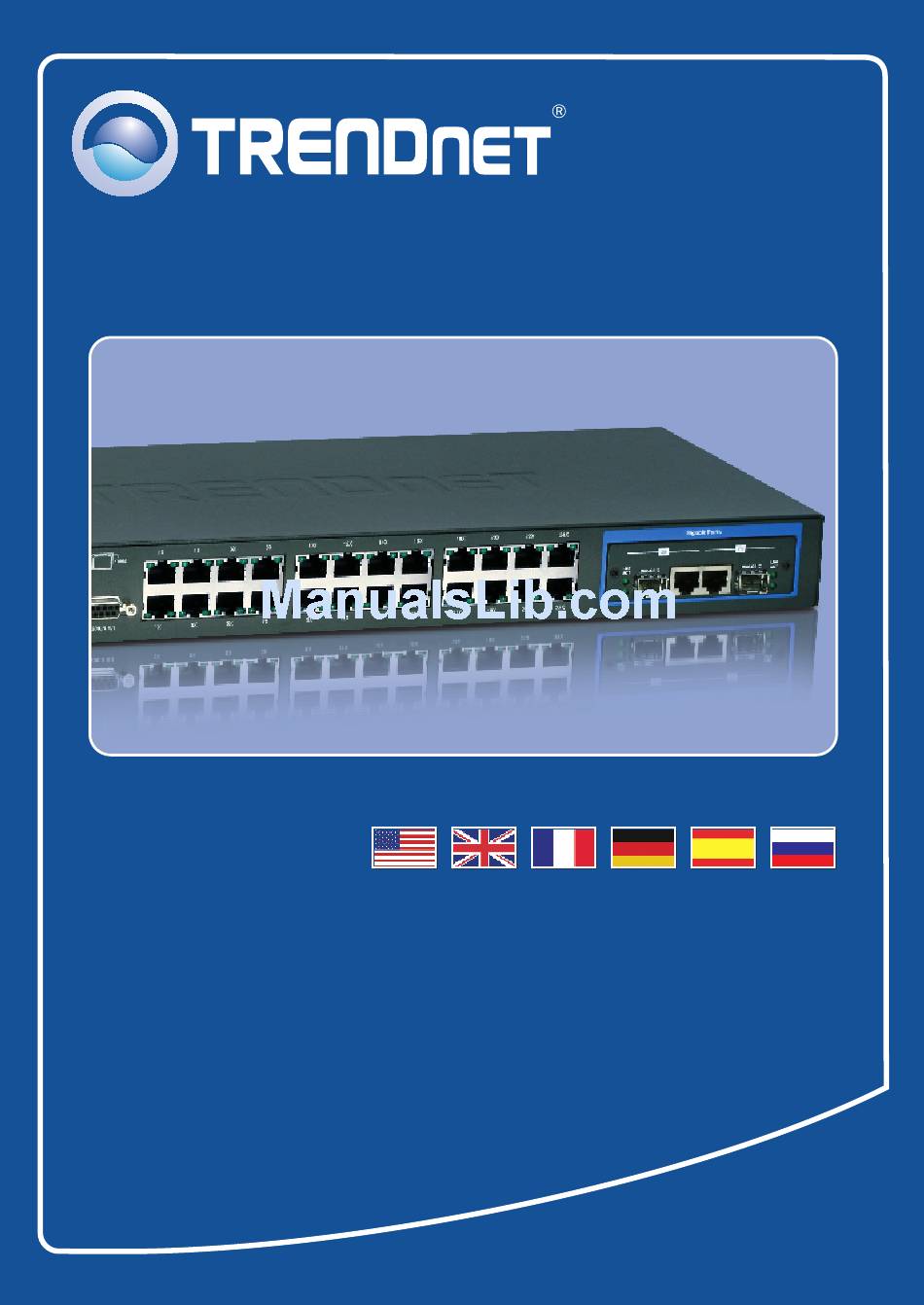

  • Page 1 Quick Installation Guide TEG-S2620i H/W: V1.0R...
  • Page 2: Table Of Contents

    Table of Contents Table of Contents English ...................... 1. Before You Start ................2. Hardware Installation ................ 3. Configure the Switch ................. Troubleshooting ..................Version 05.08.2008...
  • Page 3: English

    RS-232 cable Power Cord Rack Mount Kit System Requirements Web Browser: Internet Explorer (5.5 or higher) A computer with a network adapter properly installed TCP/IP protocol One RJ-45 network cable Optional Equipment EIA standard 19” rack Mini-GBIC module (e.g. TEG-MGBSX, TEG-MGBS10, TEG-MGBS40,...
  • Page 4: Hardware Installation

    Then press on the switch to power up the TEG-S2620i. 2. Connect a RJ-45 network cable from the computer to an available Ethernet port on the TEG-S2620i. 3. Verify that the following panel lights are on: POWER and LINK/ACT. English...
  • Page 5: Configure The Switch

    3. Configure the Switch Note: It is recommended that you configure the Switch from a wired computer. Before the Switch can be configured, a Static IP address must be assigned to your computer's network adapter in the subnet of 192.168.223.x. Since the Switch's default IP address is 192.168.223.100, make sure no other network...
  • Page 6 2. Go to Start -> Programs -> Accessories -> Communications -> HyperTerminal. 3. Enter a name, choose an icon and then click OK. 4. Select the correct COM port (e.g. COM1, COM2) and then click OK.
  • Page 7 CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product Register Your Product To ensure the highest level of customer service and support, please take a moment to To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register www.trendnet.com/register...
  • Page 8: Troubleshooting

    If my network's IP is different than the Switch's range, what should I do? You should still configure the Switch first. After all the settings are applied, go to the Switch's configuration page, click on Administrator, click IP & Management Mode and change the IP address of the Switch to match your network's IP.
  • Page 9 Certifications This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation.
  • Page 10 Worldwide Telephone: +(31) (0) 20 504 05 35 English/Espanol - 24/7 Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com/register 20675 Manhattan Place Torrance, CA 90501 Copyright ©2008. All Rights Reserved. TRENDnet.
