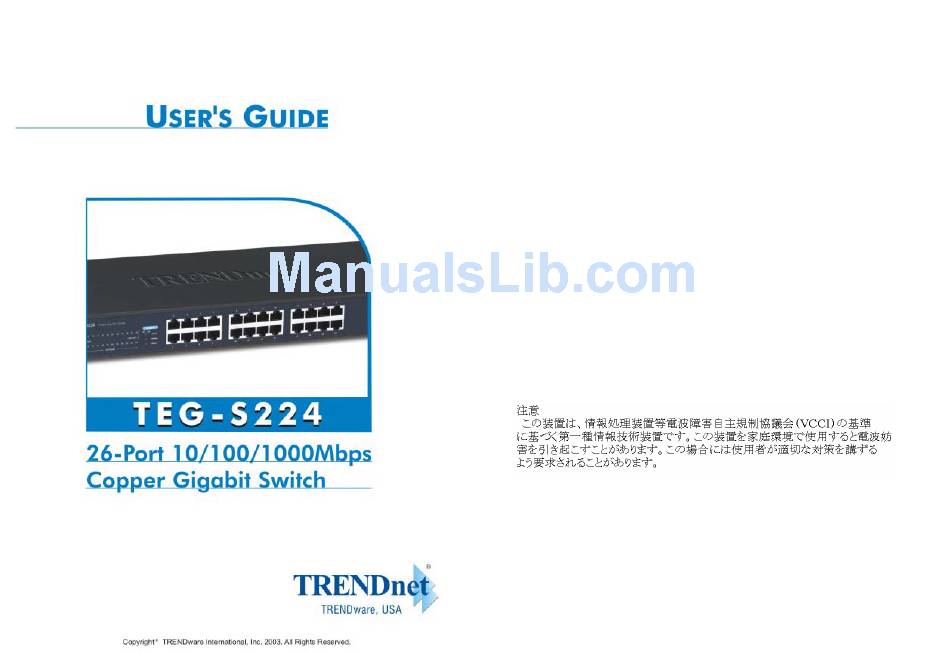

TRENDnet TEG-S224 User Manual

TRENDnet TEG-S224 User Manual

26-port 10/100/1000mbps copper gigabit switch
Hide thumbs Also See for TEG-S224:
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

FCC Warning

This equipment has been tested and found to comply with the
regulations for a Class A digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with this user's guide, may cause harmful interference to
radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference, in which case the user will
be required to correct the interference at his or her own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this product
may cause radio interference, in which case the user may be required
to take adequate measures.

VCCI Warning

This is a product of VCCI Class A Compliance.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TEG-S224 and is the answer not in the manual?

Questions and answers

Related Manuals for TRENDnet TEG-S224

Summary of Contents for TRENDnet TEG-S224

  • Page 1: Fcc Warning

    FCC Warning This equipment has been tested and found to comply with the regulations for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 2 UL Warning a) Elevated Operating Ambient Temperature- If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer's maximum rated ambient temperature (Tmra).

  • Page 3: Table Of Contents

    TABLE OF CONTENT About This Guide... 1 Purpose... 1 Terms/Usage ... 1 Introduction... 3 Gigabit Ethernet Technology ... 3 Fast Ethernet Technology ... 4 Switching Technology ... 5 Features... 6 Unpacking and Installation ... 9 Unpacking ... 9 Installation ... 9 Rack Mounting...

  • Page 4: About This Guide

    This guide discusses how to install your 26-Port 10/100/1000Mbps Copper Gigabit Switch. Terms/Usage In this guide, the term “Switch” (first letter upper case) refers to your 26-Port 10/100/1000Mbps Copper Gigabit Switch, and “switch” (first letter lower case) refers to other Ethernet switches.

  • Page 5: Introduction

    INTRODUCTION This chapter describes the features of the 26-Port 10/100/1000Mbps Copper Gigabit Switch and some background information about Ethernet/Fast Ethernet/Gigabit Ethernet switching technology. Gigabit Ethernet Technology Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format, and support for CSMA/CD protocol,...

  • Page 6: Switching Technology

    Switching is a cost-effective way of increasing the total network capacity available to users on a local area network. A switch increases capacity and decreases network loading by dividing a local area network into different segments, which don’t compete with each other for network transmission capacity.

  • Page 7: Unpacking And Installation

    Leave at least 10cm of space at the front and rear of the hub for ventilation. Install the Switch on a sturdy, level surface that can support its weight, or in an EIA standard-size equipment rack. For information on rack installation, see the next section, Rack Mounting.

  • Page 8: Connecting Network Cable

    AC Power The Switch used the AC power supply 100-240V AC, 50-60 Hz. The power switch is located at the rear of the unit adjacent to the AC power connector and the system fan. The switch’s power supply will adjust to the local power source automatically and may be turned on...

  • Page 9: Identifying External Components

    (Network Interface Card) or switch and hub. Gigabit Ethernet Ports (Port 25~26): The Switch is equipped with two Gigabit twisted pair ports, supported auto negotiable 10/100/1000Mbps and auto MDI/MDIX crossover detection function. These two ports can operate in half-duplex mode for 10/100Mbps and full- duplex mode for 10/100/1000Mbps.

  • Page 10: Understanding Led Indicators

    Figure 5. LED indicators of the Switch Power and System LEDs POWER: Power Indicator : When the Power LED lights on, the Switch is receiving power. : When the Power turns off or the power cord has improper connection. Ports 1~24 10/100M Status LEDs...

  • Page 11: Technical Specifications

    TRENDware website. provides FREE technical support customers for the duration of the warranty period on this product. TRENDware Technical Support Tel: +1-310-891-1100 Fax: +1-310-891-1111 E-mail: support@trendware.com www.trendnet.com Monday ~ Friday, 7:30AM ~ 6:00PM Pacific Standard Time (except holidays) recent TRENDware...
