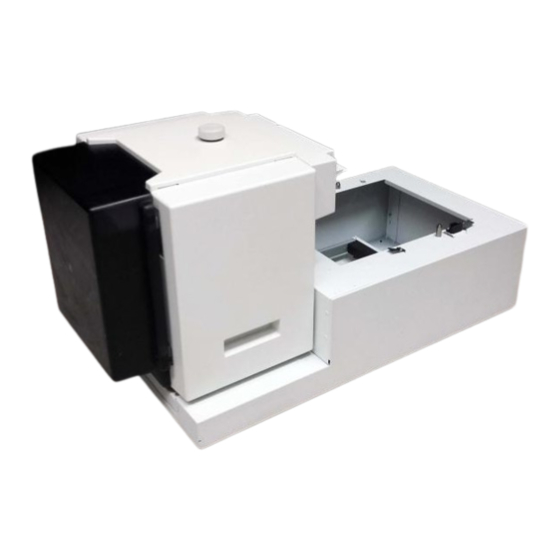

Kyocera PF-315+ Service Manual
  1. Manuals
  2. Brands
  3. Kyocera Manuals
  4. Printer Accessories
  5. PF-315+
  6. Service manual

Kyocera PF-315+ Service Manual

Hide thumbs Also See for PF-315+:
Table of Contents

Advertisement

Quick Links

Download this manual
PF-315
PF-315+/PB-325
SERVICE
MANUAL
Published in October 2012
3KFSM062
Rev.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF-315+ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kyocera PF-315+

Summary of Contents for Kyocera PF-315+

  • Page 1 PF-315 PF-315+/PB-325 SERVICE MANUAL Published in October 2012 3KFSM062 Rev.2...
  • Page 2 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. It may be illegal to dispose of this battery into the municipal waste stream. Check with your local solid waste officials for details in your area for proper disposal. ATTENTION IL Y A UN RISQUE D’EXPLOSION SI LA BATTERIE EST REMPLACEE PAR UN MODELE DE TYPE INCORRECT.

  • Page 3: Revision History

    Revision history Revision Date Replaced pages Remarks 10 July 2012 Cover, Safety precautions, CONTENTS, 1-1-1, Add model (PF-315+) 1-2-3 to 1-2-5, 1-2-6, 1-3-1, 1-3-3, 1-3-4, 1-3-7 to 1-3-14, 1-4-4, 2-1-3, 2-1-4, 2-2-1, 2-2-2, Address 17 October 2012 1-2-3...
  • Page 4 This page is intentionally left blank.

  • Page 5: Safety Precautions

    Safety precautions This booklet provides safety warnings and precautions for our service personnel to ensure the safety of their customers, their machines as well as themselves during maintenance activities. Service personnel are advised to read this booklet carefully to familiarize themselves with the warnings and precautions described here before engaging in maintenance activities.

  • Page 6: Safety Warnings And Precautions

    Safety warnings and precautions Various symbols are used to protect our service personnel and customers from physical danger and to prevent damage to their property. These symbols are described below: DANGER: High risk of serious bodily injury or death may result from insufficient attention to or incorrect compliance with warning messages using this symbol.

  • Page 7: Installation Precautions

    1. Installation Precautions WARNING • Do not use a power supply with a voltage other than that specified. Avoid multiple connections to one outlet: they may cause fire or electric shock. When using an extension cable, always check that it is adequate for the rated current...................... •...

  • Page 8: Precautions For Maintenance

    2. Precautions for Maintenance WARNING • Always remove the power plug from the wall outlet before starting machine disassembly....• Always follow the procedures for maintenance described in the service manual and other related brochures............................• Under no circumstances attempt to bypass or disable safety features including safety mechanisms and protective circuits.
  • Page 9 • Do not remove the ozone filter, if any, from the copier except for routine replacement....... • Do not pull on the AC power cord or connector wires on high-voltage components when removing them; always hold the plug itself......................•...
  • Page 10 This page is intentionally left blank.

  • Page 11: Table Of Contents

    CONTENTS 1-1 Specifications 1-1-1 Specifications............................1-1-1 1-1-2 Paper specifications..........................1-1-2 (1) Paper specifications ..........................1-1-2 (2) Selecting the right paper ........................1-1-2 (2-1) Condition of the paper .......................1-1-2 (2-2) Paper size ..........................1-1-2 (2-3) Smoothness ..........................1-1-3 (2-4) Basis weight ..........................1-1-3 (2-5) Moisture content........................1-1-3 (3) Paper storage............................1-1-3 (4) Envelopes and postcards ........................1-1-4 (4-1) Envelopes..........................1-1-4 (4-2) Curly envelopes.........................1-1-5...

  • Page 12: Operation Of The Pwbs

    2-3 Operation of the PWBs 2-3-1 Main PWB ...............................2-3-1 2-4 Appendixes 2-4-1 Wiring diagram............................2-4-1...
  • Page 13 This page is intentionally left blank.

  • Page 15: Specifications

    3KF-1 1-1 Specifications 1-1-1 Specifications Specifications Item PF-315 PF-315+ Paper size Letter, Executive, Statement, A4, B5(JIS), A5, B6, Return postcard, B5(ISO), C5, Commercial #10, DL, Commercial #9, Monarch, Youkei4, 16K, Custom Paper type Plain, Recycled, Bond, Color (Colour), Preprinted, Letterhead, Prepunched, Rough, High quality, Envelope, OHP, Labels, Vellum, Thick, Custom 1 to 8 Paper capacity...

  • Page 16: Paper Specifications

    1-1-2 Paper specifications General guidelines The bulk paper feeder is designed for use with various special types of print media such as adhesive backed label, thick paper, envelopes, and post cards, it may not be used to print on paper not satisfying the requirements below. Note The manufacturer assumes no liability for problems that occur when paper not satisfying these requirements is used with the bulk paper feeder.

  • Page 17: Smoothness

    command of the PRESCRIBE command language to tell the printer the size of the paper or envelope. Refer to the printer’s Prescribe II Command reference in the CD-ROM supplied with the printer. (2-3) Smoothness The paper should have a smooth, uncoated surface. Paper with a rough or sandy surface can cause voids in the printed output.

  • Page 18: Envelopes And Postcards

    (4) Envelopes and postcards When selecting envelopes and postcards, use the guidelines given below. (4-1) Envelopes An envelope is a more complex objects than a single sheet of paper. For this reason, it may not be possible to obtain con- sistent printing quality over the entire envelope surface.

  • Page 19: Curly Envelopes

    (4-2) Curly envelopes An envelope tends to curl excessively or become uneven in its thickness since it is constructed by paper which is folded, creased, and seamed in many parts, making the stack of envelopes on the feeder tray unlevel. To avoid feeding problems, the unlevelness of the stack of envelopes on the paper tray must be less than those specified in the following figures.
  • Page 20 This page is intentionally left blank. 1-1-6...

  • Page 21: Installation

    1-2 Installation 1-2-1 Unpacking and installation (1) Installation procedure Start Removing the MP tray. Installing the printer to the printer base. Installing the bulk paper feeder. End. 1-2-1...
  • Page 22 Removing the MP tray In order to install the bulk paper feeder in the printer, the printer’s MP tray must be removed. Proceed as the following instructions: [PF-315] 1. Open the MP tray. MP tray Figure 1-2-1 2. Grasp and pull the MP tray upwards until it is removed from the printer.
  • Page 23 3KF-2 [PF-315+] 1. Unplug the power source plug. Front cover 2. Open the front cover. 3. Remove the MP tray from the printer while bending it. Retain the MP tray for future use. MP tray Figure 1-2-3 4. Remove the fulcrum of leftside by extending a cover.
  • Page 24 3KF-1 7. Remove two screws on the MP paper feed unit. Screw MP paper feed unit Screw Figure 1-2-5 8. Remove the MP paper feed unit from the printer. Retain the MP paper feed unit for future use. Printer MP paper feed unit Figure 1-2-6 1-2-4...
  • Page 25 3KF-1 9. Attach the spacer by the screw to the printer. 10. Refit the removed front cover. 11. Close the top cover and the front cover. 12. Refit the removed cassette. Spacer Printer Screw Figure 1-2-7 1-2-5...
  • Page 26 3KF-1 Installing the printer base and the printer 1. Align the positioning pins on the top of the printer base with the holes in the base of the printer, then slowly and carefully lower the printer onto the printer base. 2.
  • Page 27 Installing the bulk paper feeder 1. Mount the bulk paper feeder onto the rail in the lower deck of the base. The rail is mov- Bulk paper feeder able and must be pulled out before installing Printer the bulk paper feeder. Pull the rail fully out until it stops.
  • Page 28 4. Make sure that the output slot of the bulk Printer paper feeder is properly aligned with the MP tray slot on the front side of the printer. Bulk paper feeder 5. This completes setting up the bulk paper Output slot feeder with the printer.

  • Page 29: Operating The Paper Feeder

    1-2-2 Operating the paper feeder (1) Loading paper Caution When the tray is rising or descending, please observe the following precautions. Keep your fingers out of the slot on the inner side of the bulk paper feeder. While the tray is descending, keep your hands out from under the tray. Do not push down on the tray or pull it upward.

  • Page 30: Loading Envelopes And Postcards

    (2) Loading envelopes and postcards If you are loading postcards in the bulk paper feeder, load them so that they are fed with the top edge first. For envelopes, make sure that they are fed with the right or bottom edge first. Direction of paper feed Postcard...

  • Page 31: Paper Misfeed Detection

    3KF-1 1-3 Troubleshooting 1-3-1 Paper misfeed detection (1) Paper misfeed indication If the printer’s message display shows [Paper jam] or [Add paper] (even though the feeder has paper loaded inside), detach the bulk paper feeder from the printer by sliding with the rail away from the printer, holding the bulk paper feeder by both hands as shown below.

  • Page 32: Paper Misfeed Detection Conditions

    (2) Paper misfeed detection conditions Problem Causes/check procedures Corrective measures Too much paper in bulk Open tray cover. Remove any quantity in excess of the marked Paper will not feed paper feeder. limit. properly into printer. Paper too slick or stack Fan and flex paper to separate sheets.

  • Page 33: Self-Diagnostic Function

    3KF-1 1-3-2 Self-diagnostic function (1) Self-diagnostic function This printer is equipped with self-diagnostic function. When a problem is detected, the printer stops printing and display an error message on the operation panel. An error message consists of a message prompting a contact to service personnel, total print count, and a four-digit error code indicating the type of the error.

  • Page 34: Self Diagnostic Codes

    3KF-1 (2) Self diagnostic codes Remarks Code Contents Causes Check procedures/corrective measures 0420 Paper feeder communication error Improper installa- Follow installation instruction carefully again. Communication error between engine tion paper feeder. PWB and optional paper feeder. Defective harness Reinsert the connector. Also check for conti- between connect-L nuity within the connector harness.

  • Page 35: Electric Problems

    1-3-3 Electric problems Problem Causes/check procedures Corrective measures (1) "Tray elevation Defective wire. Follow the flow chart below. motor does not oper- Defective main PWB. atte. Defective tray elevation motor. Start Wire between main PWB and tray Main PWB elevation motor is in good status? (no damage coating, or no connector loosen,...
  • Page 36 Problem Causes/check procedures Corrective measures (2) "No Paper" sta- Defective main PWB. Follow the flow chart below. tus still has dis- Defective wire. played. Defective paper feed motor. Start Paper is fed to the paper feed sensor? Wire between main PWB and paper feed motor is in good status? (no damage coating, or no connector...
  • Page 37 3KF-1 Problem Causes/check procedures Corrective measures (3) Bulk paper feeder Defective wire. Follow the flow chart below. is not recognized. Defective printer’s engine PWB. * PF-315 only Start Wire between main body - printer base - bulk paper feeder is in good status? Replace or repair wire.
  • Page 38 3KF-1 Problem Causes/check procedures Corrective measures (4) Bulk paper feeder Defective wire. Follow the flow chart below. is not recognized. Defective printer’s engine PWB. * PF-315+ only Start Is the lamp (green and orange) of a printer base on? Is the lamp (green) of a printer base on? Replace PWB of...
  • Page 39 3KF-1 Problem Causes/check procedures Corrective measures (5) The tray is not Defective elevation motor. Follow the flow chart below. descended even Defective tray bottom posi- though the tray cover tion sensor. is opened. Defective main PWB. Start Wire between paper and tray elevation motor is in good status? (no damage coating, or no connector loosen,...
  • Page 40 3KF-1 Causes/check procedures Corrective measures Problem (6)The tray is not Defective wire. Follow the flow chart below. descended even Defective tray bottom posi- though paper is tion sensor. empty. Defective paper feed sen- sor. Defective main PWB. Defective tray elevation motor.
  • Page 41 3KF-1 Problem Causes/check procedures Corrective measures (7)The tray is not Defective wire. Follow the flow chart below. ascended even Defective tray bottom posi- though the tray cover tion sensor. is closed (and rebooted). Defective main PWB. Defective cover interlock switch. Defective tray elevation motor.
  • Page 42 3KF-1 Problem Causes/check procedures Corrective measures (8) The tray is still Defective main PWB. Follow the flow chart below. kept on ascending Defective tray elevation over the top position. motor. Defective wire. Defective tray top position sensor. Start Pin 2 of YC6 = 0 V with tray be reached to the top position? Replace main PWB.
  • Page 43 3KF-1 Problem Causes/check procedures Corrective measures (9) The tray is still Defective main PWB. Follow the flow chart below. kept on descending Defective tray elevation beyond the bottom motor. position. Defective wire. Defective tray bottom posi- tion sensor. Start Pin 2 of YC8 = 5 V with tray be reached to the bottom position.
  • Page 44 3KF-1 This page is intentionally left blank. 1-3-14...

  • Page 45: Assembly And Disassembly

    1-4 Assembly and Disassembly 1-4-1 Precautions for assembly and disassembly (1) Precautions Be sure to turn the power switch off and disconnect the power plug before starting disassembly. When handling PWBs, do not touch connectors with bare hands or damage the board. Do not touch any PWB containing ICs with bare hands or any object prone to static charge.

  • Page 46: Assembly And Disassembly

    1-4-2 Assembly and disassembly (1) Removing the bulk paper feeder from the printer Warning: Before removing the bulk paper feeder, turn printer power off. 1. To remove the bulk paper feeder from the printer, slide it away from the printer’s opera- Bulk paper feeder tion panel on the rail.

  • Page 47: Removing The Side Covers

    (3) Removing the side covers Note: To gain access to any of the internal parts, the side covers must be removed first. 1. To remove the side cover, remove two screws at the bottom side of the side cover. 2. Remove the other side cover using the same manner.

  • Page 48: Removing The Mounting Rail From The Printer Base

    3KF-1 (5) Removing the mounting rail from the printer base 1. To remove the rail from the printer base, remove two screws that secure the stopper at the inner end. 2. Then pull the rail outward as shown right. Printer base Mount rail Figure 1-4-5 1-4-4...

  • Page 49: Paper Feed Section

    2-1 Mechanical construction 2-1-1 Paper feed section (1) FRR System To avoid paper jam caused when several sheets of paper are fed at one time, the bulk paper feeder uses the friction retarded roller (FRR) system for paper feed. The operating theory for this system follows this section. Subsequently-fed paper Feed roller Middle feed roller...
  • Page 50 Feed roller Reverse roller One-way clutch Figure 2-1-2 FRR System In this system, both the paper feed and reverse rollers are driven clockwise at the shaft. The reverse roller, however, has the torque limiter (one-way clutch) at one end which in normal paper feeding effectively frees the reverse roller from the shaft to turn in counterclockwise direction by means of the friction given by the paper feed roller through the paper.

  • Page 51: The Fault Detection Function Of The Pwb

    3KF-1 (2) The fault detection function of the PWB Attachment PB-325 is equipped with fault detection LED of an engine PWB and PB PWB. Failure PWB Failure contents LED1 (Orange) LED2 (Green) Engine PWB +24V fuse disconnection Putting out lights +3.3V fuse disconnection PB PWB 24V cutoff circuit FET breakage...
  • Page 52 3KF-1 This page is intentionally left blank. 2-1-4...

  • Page 53: Electrical Parts Layout

    3KF-1 2-2 Electrical Parts Layout 2-2-1 Electrical parts layout (1) Electrical parts (PF-315/PF-315+) Electrical parts (PF-315/PF-315+) Figure 2-2-1 Main PWB ............ Controls electrical components in the bulk paper feeder and communica- tions with the printer. Tray top position sensor....... This sensor, when the top of the paper stack in the paper tray has reached the top most position, ready for feeding paper through the bulk paper feeder output slot.

  • Page 54: Electrical Parts (Pb-325)

    3KF-1 (2) Electrical parts (PB-325) Electrical parts (PB-325) Figure 2-2-2 PB PWB ............Consists of wiring relay circuit between engine PWB of printer and main PWB of printer base. Relay interface connector A......Connects the printer base and the printer. Relay interface connector B......
  • Page 55 2-3 Operation of the PWBs 2-3-1 Main PWB The diagram below shows the main PWB and the components of the bulk paper feeder. Cover interlock switch Tray Paper feed elevation motor motor OP24V1 Transistor Motor array driver OP24V2 To flash Over writer current...
  • Page 56 Figure 2-3-2Main PWB silk-screen diagram Connector Pin No. Signal Voltage Description Ground Connected OPSEL2 0/5 V DC Paper feeder select signal 2 to the printer OPSEL1 0/5 V DC Paper feeder select signal 1 OPSEL0 0/5 V DC Paper feeder select signal 0 24VGND Power ground OPREADY*...
  • Page 57 Connector Pin No. Signal Voltage Description OP24V1 24 V DC 24 V DC power supply Connected COVER 0/24 V DC Cover interlock switch: Off/On to the cover OP24V2 0/24 V DC 24 V DC power supply (via cover interlock switch) interlock switch OP5V2...
  • Page 58 This page is intentionally left blank. 2-3-4...

  • Page 59: Wiring Diagram

    2-4 Appendixes 2-4-1 Wiring diagram Interface Cover open connector OP24V1 detection COVER switch OP24V2 OPSEL2 OPSEL1 OPSEL0 Connected to 24VGND the printer OPREADY* OP5V2 base Tray top OPDO UPLIMIT position OPDI sensor OPSCLK OP5V OP24V Main PWB OP5V1 DBTX Paper OP5V2 DBRX feed...
  • Page 60 This page is intentionally left blank. 2-4-2...
  • Page 61 Zhongshan Dist., Taipei 104, Taiwan R.O.C. Av.Tambore,1180 Mod.B-09 CEP 06460-000 Phone: +886-2-2507-6709 Tambore-Barueri-SP, Brazil Fax: +886-2-2507-8432 Phone: +55-11-4195-8496 Fax: +55-11-4195-6167 KYOCERA Document Solutions Korea Co., Ltd. 18F, Kangnam bldg, 1321-1, Seocho-Dong, Seocho-Gu, Seoul, Korea KYOCERA Document Solutions Phone: +822-6933-4050 Australia Pty. Ltd. Fax: +822-747-0084 Level 3, 6-10 Talavera Road North Ryde N.S.W, 2113,...
  • Page 62 Fax: +33-1-69853409 KYOCERA Document Solutions South Africa (Pty) Ltd. KYOCERA Document Solutions Espana, S.A. 49 Kyalami Boulevard, Edificio Kyocera, Avda. de Manacor No.2, Kyalami Business Park 1685 Midrand, South Africa 28290 Las Matas (Madrid), Spain Phone: +27-11-540-2600 Phone: +34-91-6318392 Fax: +27-11-466-3050...
