Operation

Connection

Connect the machine to an electrical outlet with a voltage as per the machine's rating plate specifications.

Grounding

CAUTION
The product must always be grounded during operation.
The new solution replaces the previous metal sheet which, when placed against one of the container's hooks,
equalized the potential of the container. Instead, the solution will consist of a welding bolt on the container which
is connected with a clamp with spiral cable (see picture). The advantage of this is that we get a safer potential
equalization which can also be easily detached if necessary. The spiral cable enables the container to be potential
equalized even during emptying. If you wish to retrofit this solution to an EX cyclone, the container should also be
replaced, see table above.

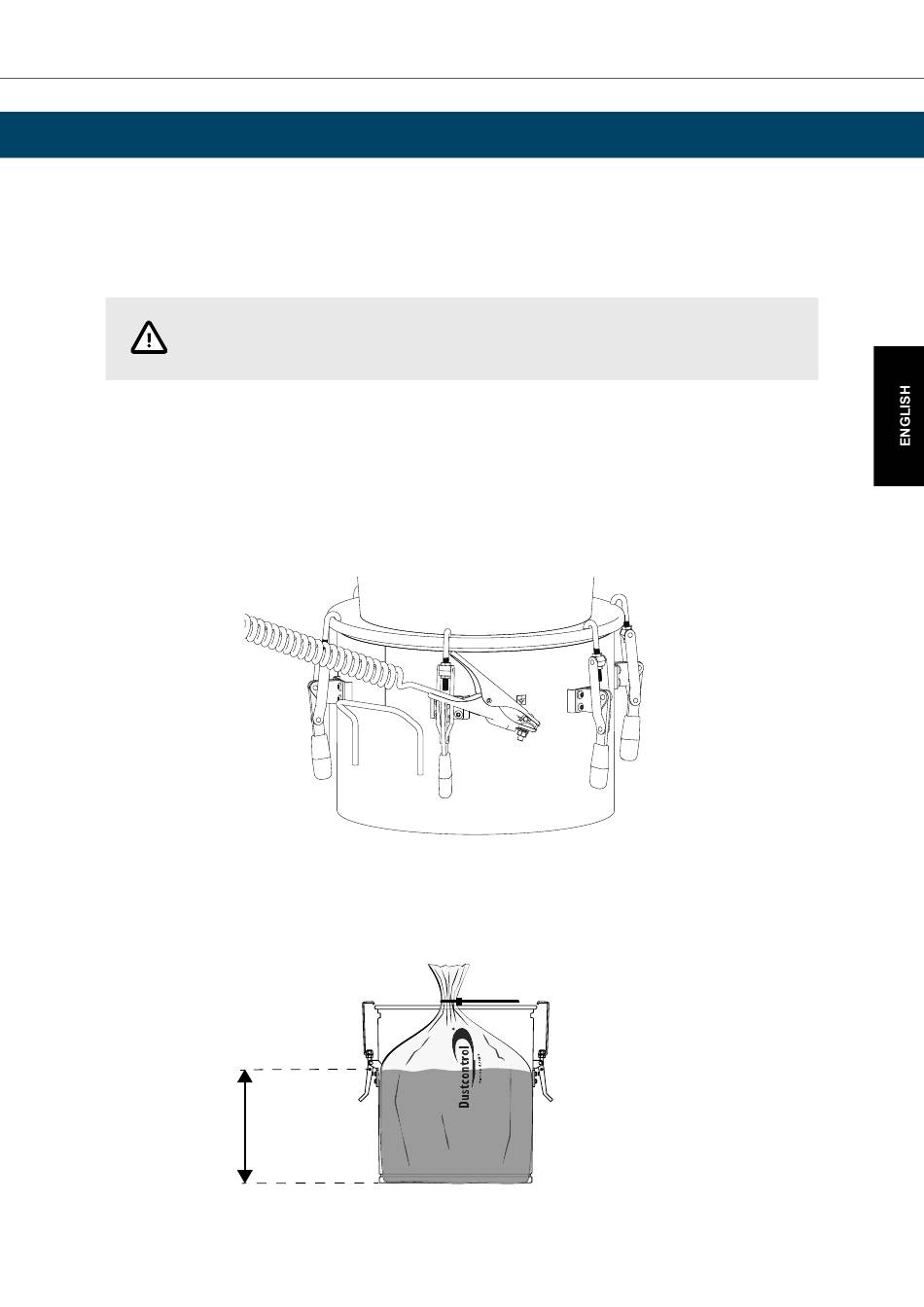

Attach the equipotential bonding cable to the welding bolt on the barrel.
Above: grounding points on DC Tromb H EX TR

Emptying

MAX
2/3
