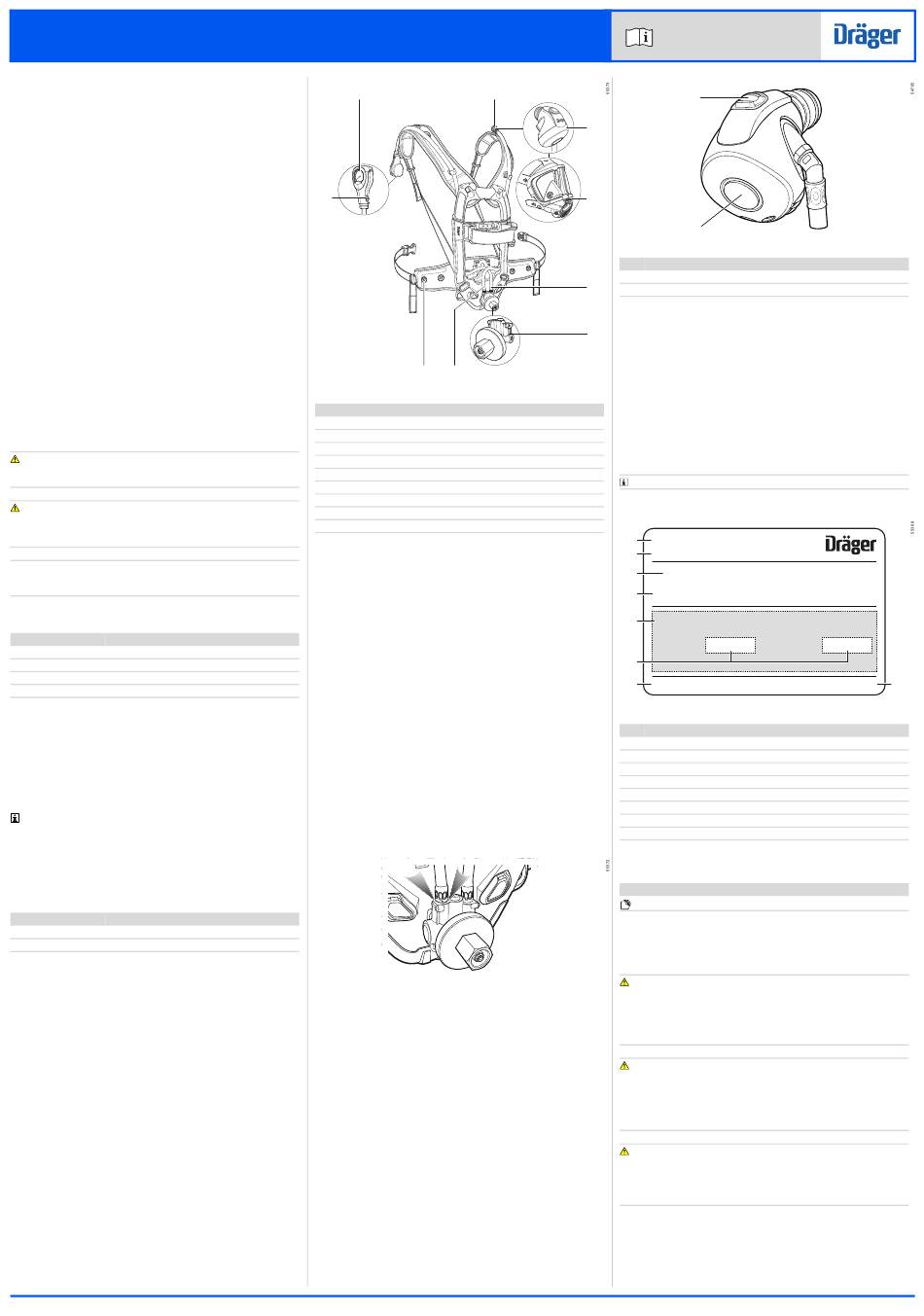

PSS AirBoss Active
Self-contained breathing apparatus
1
Safety-related information
PSS AirBoss Active
Self-contained breathing apparatus
– Before using this product, carefully read these instructions for use
and those of the associated products.
– Strictly follow the instructions for use. The user must fully understand
and strictly observe the instructions. Use the product only for the
purposes specified in the intended use section (see section 3.2).
– Do not dispose of the instructions for use. Ensure that they are
retained and appropriately used by the product user.
– Only trained and competent users are permitted to use this product.
– Comply with all local and national rules and regulations associated
with this product.
– Only specialist, trained personnel are permitted to check, repair and
maintain the product as described in these instructions for use and
the technical manual. Further maintenance work that is not detailed in
these instructions for use or in the technical manual must only be
carried out by Dräger or personnel qualified by Dräger. Dräger
recommend a Dräger service contract for all maintenance activities.
– Only use genuine Dräger spare parts and accessories when
performing maintenance work, or the proper functioning of the
product may be impaired.
– Do not use a faulty or incomplete product. Do not modify the product.
– Notify Dräger in the event of any component fault or failure.
– The air supply must meet the requirements for breathing air according
to national regulations.
2
Conventions in this document
2.1 Definitions of alert messages
The following alert messages are used in this document to alert the user
to potential hazards. The definitions of the alert messages are as follows.
WARNING
Indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION
Indicates a potentially hazardous situation which, if not avoided, could
result in physical injury. It may also be used to alert against unsafe
practices.
NOTICE
Indicates a situation which, if not avoided, could result in damage to the
product or the environment.
2.2 Trademarks
Trademark
Trademark owner
FPS
Dräger
PSS
Dräger
Panorama
Dräger
Molykote
DDP Specialty Electronic Materials US 9, LLC.
The following website lists the countries in which the Dräger trademarks
are registered: www.draeger.com/trademarks.
The trademarks listed are only registered in certain countries and not
necessarily in the country in which this document is published.
2.3 Typographical conventions
A triangle is used in alert messages to indicate possible ways of
avoiding the hazard.
An information symbol is used for notes and additional useful
information.
1.
Numbered paragraphs indicate that the information is sequential.
Dashed paragraphs indicate that the information is non-sequen-
tial.
2.4 Abbreviations
Abbreviation
Explanation
RF
Radio frequency
RFID
Radio-frequency identification
3
Description
3.1 Feature description
3.1.1 Overview
The PSS AirBoss Active is a breathing apparatus that provides the
wearer with respiratory protection using an open-circuit, pressure-
demand, compressed-air system. The product is compatible with Dräger
compressed air cylinders, masks and lung demand valves.
1
9
8
7
Fig. 1
PSS AirBoss Active
No
Description
1
Gauge
2
Medium-pressure coupling
3
Lung demand valve
4
Face mask
5
Dual-pressure hose
6
Pressure reducer
7
Medium-pressure hose
8
Universal accessory clip
9
Warning whistle
3.1.2 Carrying system
The carrying system has a carbon-composite backplate, with adjustable
shoulder straps and waist belt connected using quick release connectors.
Some variants feature an adjustable backplate where the height can be
changed to one of three preset heights to suit the body length of the
wearer (short (S), medium (M) and long (L)). The waist pad is connected
at a flexible joint to compensate for the twisting and bending of the user.
Pneumatic hoses and other modular components are integrated into the
backplate to prevent snagging and to enhance component protection.
Universal accessory clips can be fitted to the shoulder and waist pads.
The carrying system is fitted with a read-only RFID tag that has a unique
hexadecimal number that can be used for equipment identification. The
tag is located under the rubber cover just below the pressure reducer and
can be read wirelessly by an RF reader. The tag is passive (has no
battery) and requires an external source to provoke signal transmission.
3.1.3 Pneumatic system
The breathing apparatus uses a Dräger high-performance pressure
reducer that reduces cylinder pressure. The pressure reducer is fitted
with a warning whistle that sounds when the cylinder pressure is low.
Breathing air is supplied through a medium-pressure hose and coupling
to the attached lung demand valve. A pressure relief valve will activate
and vent air to the atmosphere at the pressure reducer (Fig. 2) if the
medium-pressure increases to 1.1–1.6 MPa. High-pressure air is
supplied through an internal capillary inside the dual-pressure hose to the
gauge. Air is also supplied through the dual-pressure hose to the warning
whistle when the pneumatic pressure is low.
Fig. 2
Air venting from the pressure relief valve
3.1.4 Compressed air cylinders
The breathing apparatus is compatible with steel or composite material
cylinders of 4 to 9 litre capacities, and 14.7 to 30 MPa pressure. Full
descriptions and user instructions are contained in separate instructions
supplied with the cylinder.
3.1.5 Face masks
The breathing apparatus is compatible with FPS 7000 and Panorama
Nova face masks. Full descriptions and user instructions are contained in
separate instructions supplied with the face mask.
3.1.6 Lung demand valves
The breathing apparatus is compatible with PSS lung demand valves
with the following types of connector: A, AE, ESA, and N. Full
descriptions and user instructions are contained in separate instructions
supplied with the lung demand valve.
Instructions for use
2
3
4
Fig. 3
No.
Description
1
Reset button
5
2
Front button
3.2 Intended use
When the product is used with an approved compressed air cylinder,
6
mask and lung demand valve, the breathing apparatus provides a wearer
with respiratory protection for working in contaminated or oxygen-
deficient conditions.
The compressed air cylinder, mask, lung demand valve, and other
accessories used with this product must be certified Dräger components.
They must be assembled in an approved configuration and used as
described in this document and in separate instructions supplied with the
accessories, otherwise operation of the product may be impaired.
3.3 Product marking and symbols
3.3.1 Product labelling
Do not remove or alter any product label or marking.
Labels on the product provide the following information.
PSS AirBoss
1
2
EN 137:2006 TYPE 2 - SCBA
3
PART No:
4
SERIAL No:
5
6
7
Made by Draeger Safety UK Limited.
Fig. 4
No
Description
1
Product name
2
Product type (self-contained breathing apparatus)
3
Dräger part number
4
Dräger serial number
5
Approval information
6
Year of manufacture
7
Manufacturer
8
Label part number
3.3.2 Symbols on the product
The following symbols can be found on the product.
Symbol
Refer to the relevant authority for explanation of approval body symbols
and marking on the product.
4
Use
WARNING
Only trained and competent users (those who have attended a relevant
training course) are permitted to prepare and use this product.
► Ensure that any accessories, ancillary equipment, and other
protective clothing items do not interfere with the breathing apparatus
and do not create a safety hazard.
WARNING
The effective working duration of the breathing apparatus depends on the
initial air supply available and the breathing rate of the wearer.
► Fill compressed air cylinders to their full rated pressure before use.
► Do not commence any operation using a cylinder that is less than 90
percent full.
CAUTION
Equipment damage can cause the release of high-pressure air.
► Do not apply excessive force or use tools to open or close a cylinder
valve.
► Do not drop or throw down the breathing apparatus.
4.1 Preparation for use
4.1.1 Before using the breathing apparatus
1. Carry out a visual inspection of the breathing apparatus (see
section 6.3.1).
1
2
Example of a lung demand valve
3713276
Product label
Description
Equipment identification RFID tag
3728059 (A3-D-P) Page 1/4
