Summary of Contents for Broyhill Biltmore A102004101

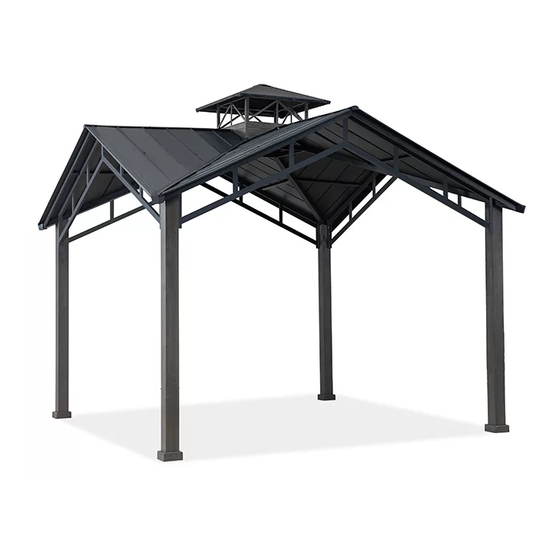

- Page 1 BILTMORE Biltmore Hard Top 12x12 ft Gazebo ASSEMBL Y INSTRUCTION ITEM#: A102004101/A102004102 SKU#: 810452358/810452357 Need help? We are here for you! 1.866.578.6569 24/7 • Toll Free...
-
Page 2: Safety Information
Safety Information This unit is heavy! Do not assemble DANGER: More than four people are required for this this item alone. assembly. Some parts may contain sharp edges. Wear Do not leave the gazebo where there WARNING: protective gloves. ... -
Page 3: Tools Needed
TOOLS NEEDED Provided in hardware pack IMPORTANT How many people needed for the installation work... -
Page 4: Exploded Drawing
EXPLODED DRAWING... -
Page 6: Parts List
Parts List Label Part Number Description Part Image P000200240 post P006100093 Base Cover P000100153 Base P000400533 beam 1 P000400534 beam 2 P000600747 Top skew beam P000600748 Bottom skew beam P000600749 Middle Beam P000500620 Large top frame Small top skew P000600746 beam Small top inclined P005000211... - Page 7 Small roof P005600126 decorative panel P005800087 Hook P000600752 Big roof top beam 1 P000600753 Big roof top beam 2 Lateral trabecula of P000600750 the greater roof 1 Lateral trabecula of P000600751 the greater roof 2 Lower baffle of P005600127 inclined beam P000900044 Small top cover P000700265...
- Page 8 Big Top and Large P000700270 Cover 1 Big Top and Large P000700271 Cover 2 Small roof inclined P000800120 beam cover plate Inclined beam top P000800121 cover Inclined beam lower P000800122 cover plate Center beam cover P000800123 plate...
-
Page 9: Hardware Pack
Hardware Pack Label Part Number Description Part Image H02015C11 M6 X 15 Bolt H02025C11 M6 X25 Bolt H19001C11 M6 Flat washer H14001C11 M6 Nut M8 Spring H13001D11 washer H02020D11 M8 X 20 Bolt H02035C11 M6 X35 Bolt Φ8X180 Stake P12401A01001 H02030D11 M8 X 30 Bolt H19001D11... - Page 24 24X 24X...
-
Page 32: Care And Maintenance
Care and Maintenance Our steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur once these protective coatings are scratched. This is not a defect and thus not covered by the warranty. ...
