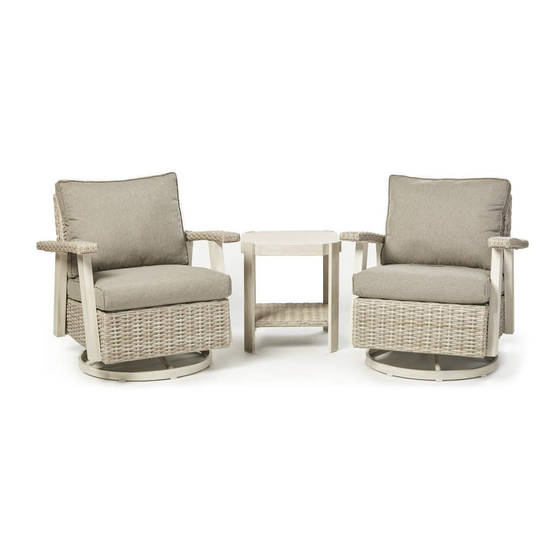

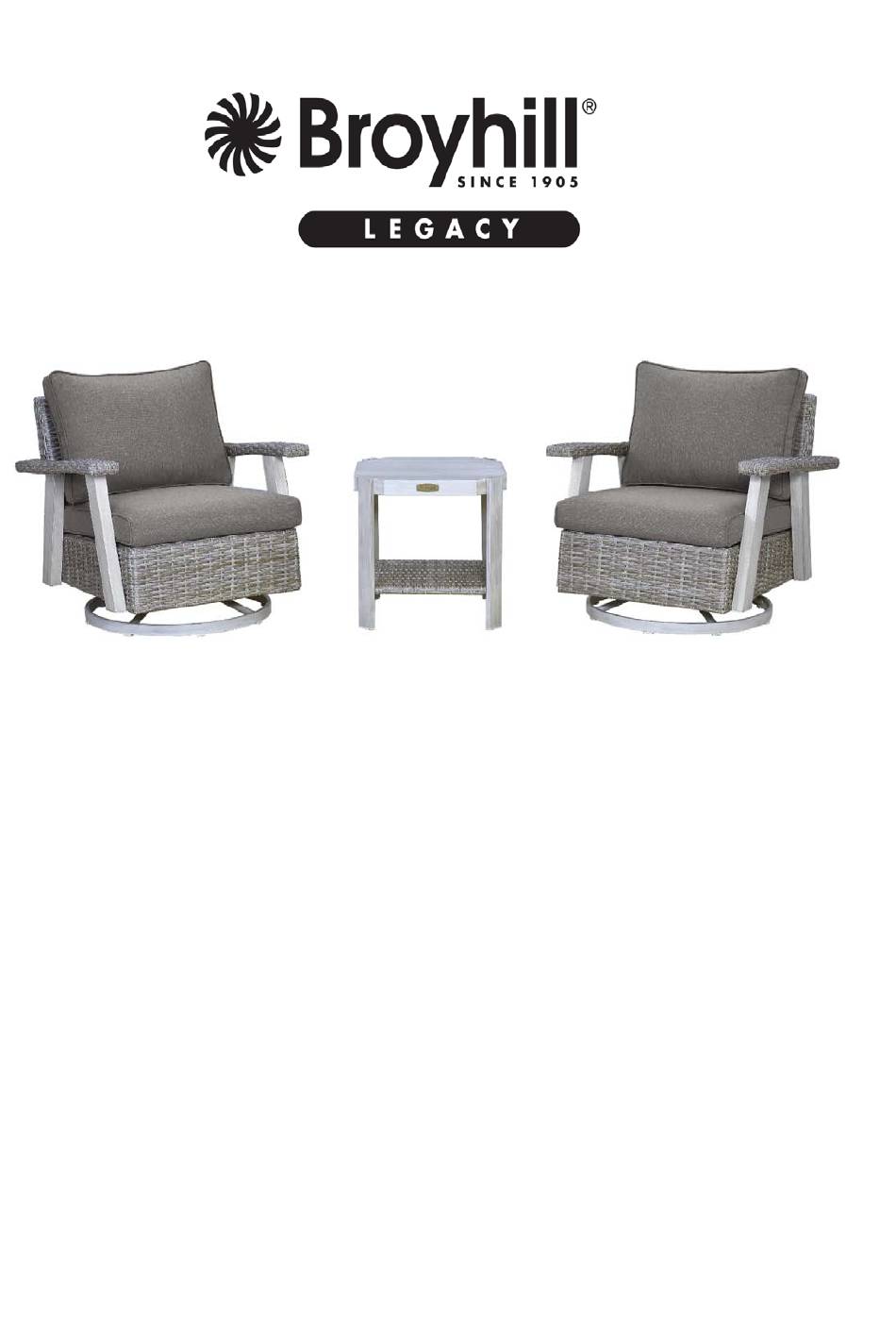

- Page 1 ASSEMBLY INSTRUCTIONS ITEM# : GBO21-602-5 SKU# : 810493307 ASHFORD 3PC GLIDER SET Need help? We are here for you! 1-888-733-8169 Toll Free Or email us at customerservice_01@yeah.net,customerservice_02@yeah.net customerservice_03@yeah.net...
-
Page 2: Maintenance
GENERAL BEST PRACTICE FOR ASSEMBLY: Read all instructions before starting Clear a flat covered space to begin assembly Always best to do it with a friend Note that hardware required is provided for every step Pay attention to orientation Letter of the part corresponds to a sticker on the product Number of the hardware corresponds to its letter in the package Helpful hints provided along the way Retain these assembly instructions for future reference. -
Page 3: Parts List
PARTS LIST: PARTS LIST Part No. Part Image Part No. Part Image Chair Back Short Bolt (M6x15mm) Seat Panel Frame Bolt (M6x28mm) Left Armrest Bolt (M6x36mm) Right Armrest Bolt (M6x41mm) Left Armrest Support Bolt (M6x48mm) ( with one threaded hole) Right Armrest Support Washer... - Page 4 PRODUCT FRAME MAP...
- Page 5 STEP 1 STEP 1 PART REQUIRED: L3, R3, L4, R4, L5 & R5 Keep the bolts loose. Note: After assembled, keep all the threaded holes inwards. STEP 2 STEP 2 PART REQUIRED: 6, 7 Keep the bolts loose.
- Page 6 STEP 3 STEP 3 PART REQUIRED: 1 & 2 Keep the bolts loose. STEP 4 STEP 4 PART REQUIRED: L3, R3 & 2 Keep the bolts loose.
- Page 7 STEP 5 PART REQUIRED: 2, L4, R4, L5 & R5 Keep the bolts loose. STEP 6 PART REQUIRED: 2, 6 & 7 Keep the bolts loose.
- Page 8 STEP 7 PART REQUIRED: 16 & 17 Finished! Caution: To ensure one's safety during use of this swivel glider, make sure that all of the bolts are completely tightened. The chair has the ability to swivel and glider; therefore use by young children should be under adult supervised. Warranty One-year limited warrantly.
- Page 9 PARTS LIST: PARTS LIST Part Image Part Image Part No. Part No. Table Top Short Bolt (M6x15mm) Table Leg Long Bolt (M6x28mm) Table Tray Washer Tool Tightening Loosing STEP 1 PART REQUIRED: 1 & 2 Keep the bolts loose.
- Page 10 STEP 2 STEP 2 PART REQUIRED: 1, 2 & 3 Tighten all bolts by using the supplied Tool. STEP 3 STEP 3 Warranty One-year limited warrantly. Proof of purchase (dated register receipt) is required for warranty claims. It remains the customer's responsibility for freight and packing charges to and from the service center.
