- Page 1 ASSEMBLY INSTRUCTIONS ITEM#: A101007603 SKU# 810490347 ASHFORD 10X12 FT SOFT TOP GAZEBO Need help? We are here for you! 1(866) 578-6569 24/7 • Toll Free...
- Page 2 GENERAL BEST PRACTICES FOR ASSEMBLY: • Please read and understand this entire manual before attempting to assemble or install the product. • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list.
- Page 3 EXPLODED DRAWING 3/28...
- Page 4 PARTS LIST Label Part Number Description Part Image P000200233 Post P000100151 Base P006100091 B ase Cover Long lef t P000400523 Crossbeam Long right P000400524 Crossbeam Short left P000400525 Crossbeam Short right P000400526 Crossbeam P000500924 Beam connector Beam Decorative P005600217 parts P005600123 Decorative parts Long Netting...
- Page 5 Short Middle P000600738 Beam Lower Tube Sloping Beam P000500613 connector Middle Beam P000500612 connector Big Roof P000500611 Connector Small Roof P000600732 Sloping Beam Small Roof P000500610 Connector P005600122 Finial P000100150 Decorative cover P005800084 Hook Small Canopy P001100666 Big Canopy P001100665 Mosquito Netting P001200264 Curtain...
- Page 6 HARDWARE LIST Label Part Number Description Part Image H010030030 M6* 15 Bolt H010030035 M6* 40 Bolt Flat washer H050030001 Nut M6 H040010004 Spring H050020017 washer M6 H9900100009 Plastic Cup Stake H070010003 Φ8* 180 P005100264 Ring Wrench M6 H090030017 H090030002 Allen Key M6 6/28...
- Page 7 HELPFUL HINTS • Tools needed and not included • Separating parts before starting Provided in hardware pack How many people needed for the installation work 7/28...
- Page 8 STEP 1 Assembled View: Insert the Base Cover(C) into the bottom of Post(A), then fixed the Base(B) with Bolt(AA) , Flat Washer(CC) by Allen Key (Z2) 8/28...
- Page 9 STEP 2 Assembled View: Insert the Beam Connector(E3) into Long Left Crossbeam(D1) and Short Left Crossbeam(E1), then fixed Netting Tube(G/H) to Long Left Crossbeam(D1) and Short Left Crossbeam(E1) with Bolt(AA), Flat Washer(CC) by Allen Key(Z2) 9/28...
- Page 10 STEP 3 Assembled View: Insert the Long Right Crossbeam(D2) and Short Right Crossbeam(E2) into Beam Connector(E3) , then fixed Netting Tube(G/ H) to Long Right Crossbeam(D2) and Short Bolt(AA), Right Crossbeam(E2) with Flat Washer(CC) by Allen Key(Z2) 10/28...
- Page 11 STEP 4 Assembled View: Fixed Beam Decorative Parts(E4) to Crossbeam(D2/D1/E2/E1), then fixed Middle Beam Connector(P) to Beam Decorative Parts(E4) with Bolt(AA), Flat Washer(CC) by Allen Key(Z2) 11/28...
- Page 12 STEP 5 Assembled View: Fixed the assembled Long Crossbeam(D1/D2) to Post(A) with Bolt(AA), Spring Washer(EE), Flat Washer(CC) and Plastic Cup(FF) by Allen Key(Z2), then put the assemblyed Short Crossbeam(E1/E2) beside 12/28...
- Page 13 STEP 6 Assembled View: Fixed the assemblyed Short Crossbeam(E1/E2) to the Post(A) with Bolt(AA), Spring Washer(EE), Flat Washer(CC) and Plastic Cup(FF) by Allen Key(z2) 13/28...
- Page 14 STEP 7 Assembled View: Fixed the Decorative Parts(F) to Post(A) with Bolt(AA), Flat Washer(CC) and Plastic Cup(FF) by Allen Key(Z2); Then fixed Sloping Beam Connector (O) to Decorative Part(F) and Post(A) with Bolt(AA), Flat Washer(CC) by Allen Key(Z2) 14/28...
- Page 15 STEP 8 Assembled View: Fixed Big Roof Sloping Beam(I) to Sloping Beam Lower Tube(J) 15/28...

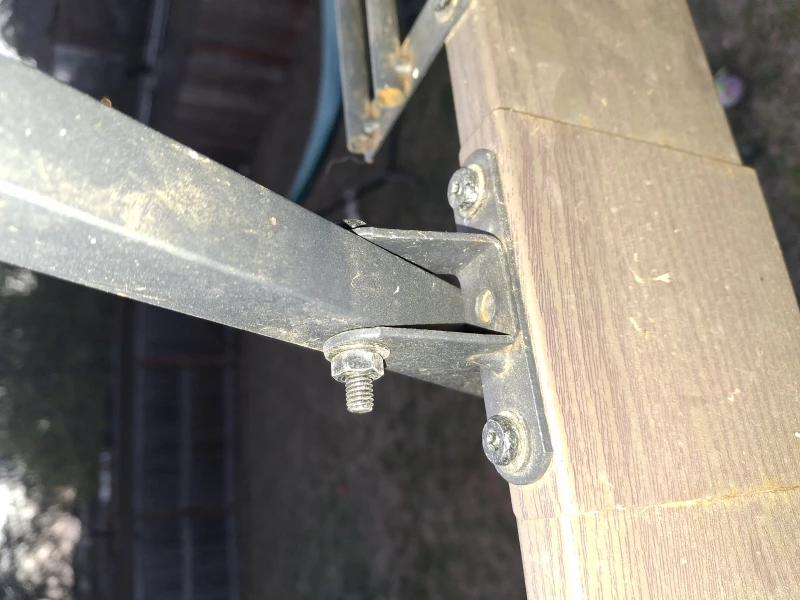

- Page 16 STEP 9 Assembled View: Attach the upper of Big Roof Sloping Beam(I) to Big Roof Connector(Q). Fix Sloping Beam Lower Tube(J) to Sloping Beam Connector(O) with Bolt(BB), Flat Washer(CC)and Nut(DD) by Allen Key(Z2) and Wrench(Z1) 16/28...
- Page 17 STEP 10 Assembled View: Attach the Long Middle Beam(K) to Long Middle Beam Lower Tube(L) 17/28...
- Page 18 STEP 11 Assembled View: Attach the upper of Long Middle Beam(K) to Big Roof Connector(Q). Fix Long Middle Beam Lower Tube (L) to Middle Beam Connector(P) with Bolt(BB), Flat Washer(CC) and Nut(DD) by Allen Key(Z2) and Wrench(Z1). 18/28...
- Page 19 STEP 12 Assembled View: Attach Short Middle Beam(M) to Short Middle Beam Lower Tube(N) 19/28...
- Page 20 STEP 13 Assembled View: Attach the upper of Short Middle Beam(M) to Big Roof Connector(Q). Fix Short Middle Beam Lower Tube (N) to Middle Beam Connector(P) with Bolt(BB), Flat Washer(CC) and Nut(DD) by Allen Key(Z2) and Wrench(Z1). 20/28...
- Page 21 STEP 14 Assembled View: Spread the Big Canopy(W) to Big top, do not attached the canopy first. 21/28...
- Page 22 STEP 15 Assembled View: Attach Small Roof Sloping Beam(R) to Small Roof Connector(S) 22/28...
- Page 23 STEP 16 Assembled View: Attach the Small Canopy(V) to the Assembled small top; fix the Decorative Cover(T2) to Small Roof Connector, then tight them by Finial(T1) 23/28...
- Page 24 STEP 17 Assembled View: Attach the assembled Small top to Big top, then tight Small Roof Sloping Beam(R) and Big Roof Sloping Beam(I), then attach the Hook(U) to Big Roof Connector(Q). 24/28...
- Page 25 STEP 18 Assembled View: Attach the big canopy 's corner (without belt) to Sloping Beam Lower Tube(J), then attach the rest canopy corner(with belt) to the Sloping Beam Lower Tube(J), finally, attach the middle to the Long Middle Beam Lower Tube(L) and Short Middle Beam Lower Tube(N) 25/28...
- Page 26 STEP 19 Please do the matching of zippers for different panels as showing the picture Assembled View: Attach Curtain(Y) to the outer side of Netting Tube(G/H) by Ring(II). 26/28...
- Page 27 STEP 20 Please do the matching of zippers for different panels as showing the picture Assembled View: Attach the Mosquito Netting(X) to the inside of the Netting Tube(G/H) by Ring(II). 27/28...
- Page 28 STEP 21 Assembled View: Fix the Gazebo to the ground by Stake(HH) 28/28...
