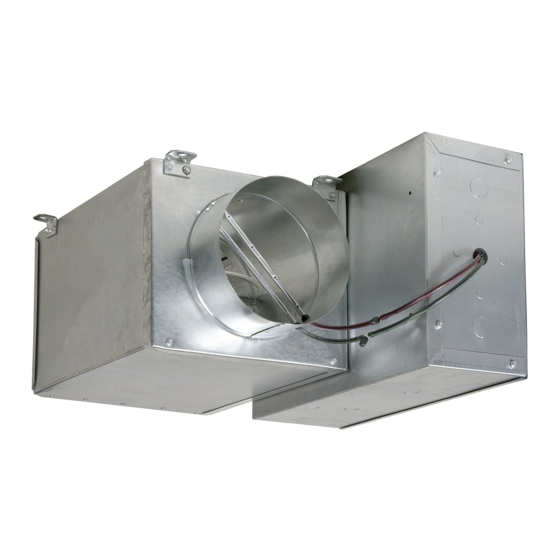

Carrier 35E Installation And Start-Up Instructions Manual

Single-duct terminal units variable volume system
Hide thumbs Also See for 35E:
Table of Contents

Advertisement

Quick Links

Download this manual
Installation and Start-Up Instructions
CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . 1
PRE-INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . 2
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
CONTROL ARRANGEMENTS . . . . . . . . . . . . . . . . . . . 3
VAV Control Arrangements . . . . . . . . . . . . . . . . . . . . 3
VVT Control Arrangement . . . . . . . . . . . . . . . . . . . . . 3
Pneumatic Control Arrangement . . . . . . . . . . . . . . . . 4
Supplied) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Step 1 - Install Volume Control Box . . . . . . . . . . . . 4
Step 2 - Make Duct Connections . . . . . . . . . . . . . . . 4
Digital Controls) . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
CONTROL SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Set Points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Airflow Set Points . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
PNEUMATIC CONTROLS . . . . . . . . . . . . . . . . . . . . . 11
Preparation for Balancing (Control Sequences 1102
and 1103) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
(Control Sequences 1102 and 1103) . . . . . . . . . . 12
(Control Sequences 1104-1110) . . . . . . . . . . . . . 12
Preventative Maintenance . . . . . . . . . . . . . . . . . . . . 14
Pneumatic Control Troubleshooting . . . . . . . . . . . . 14
ANALOG CONTROLS . . . . . . . . . . . . . . . . . . . . . . . . 15
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53350006-01
Printed in U.S.A.
Form No. 35E-5SI
35E Single-Duct Terminal Units
Balancing Procedures (Control Sequences 2100-
2105) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Page
Thermostat Installation . . . . . . . . . . . . . . . . . . . . . . .15
Programming Thermostat . . . . . . . . . . . . . . . . . . . . .15
Analog Control Troubleshooting . . . . . . . . . . . . . . .17
OPERATION AND SERVICE . . . . . . . . . . . . . . . . .18
Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
• PROBLEM: NO HEAT WHEN CALLED FOR
• PROBLEM: DISCHARGE TEMPERATURE NOT AT
TEMPERATURE SETTING
PERSONAL INJURY HAZARD
Air-handling equipment will provide safe and reliable service
when operated within design specifications. The equipment
should be operated and serviced only by authorized personnel
who have a thorough knowledge of system operation, safety
devices and emergency procedures.
Good judgment should be used in applying any manufacturer's
instructions to avoid injury to personnel or damage to
equipment and property.

SAFETY CONSIDERATIONS

Installation and servicing of air-conditioning equipment can be
hazardous due to system pressure and electrical components. Only
trained and qualified service personnel should install, repair, or
service air-conditioning equipment.
Untrained personnel can perform basic maintenance functions of
cleaning coils and filters and replacing filters. All other operations
should be performed by trained service personnel. When working
on air-conditioning equipment, observe precautions in the
literature, tags and labels attached to the unit, and other safety
precautions that may apply.
Follow all safety codes, including ANSI (American National
Standards Institute) Z223.1. Wear safety glasses and work gloves.
Use quenching cloth for unbrazing operations. Have fire
extinguisher available for all brazing operations.
It is important to recognize safety information. This is the safety-
alert symbol
instructions or manuals, be alert to the potential for personal
injury.
Understand the signal words DANGER, WARNING, CAUTION,
and NOTE. These words are used with the safety-alert symbol.
Variable Volume System
CAUTION
. When you see this symbol on the unit and in
Pg 1
