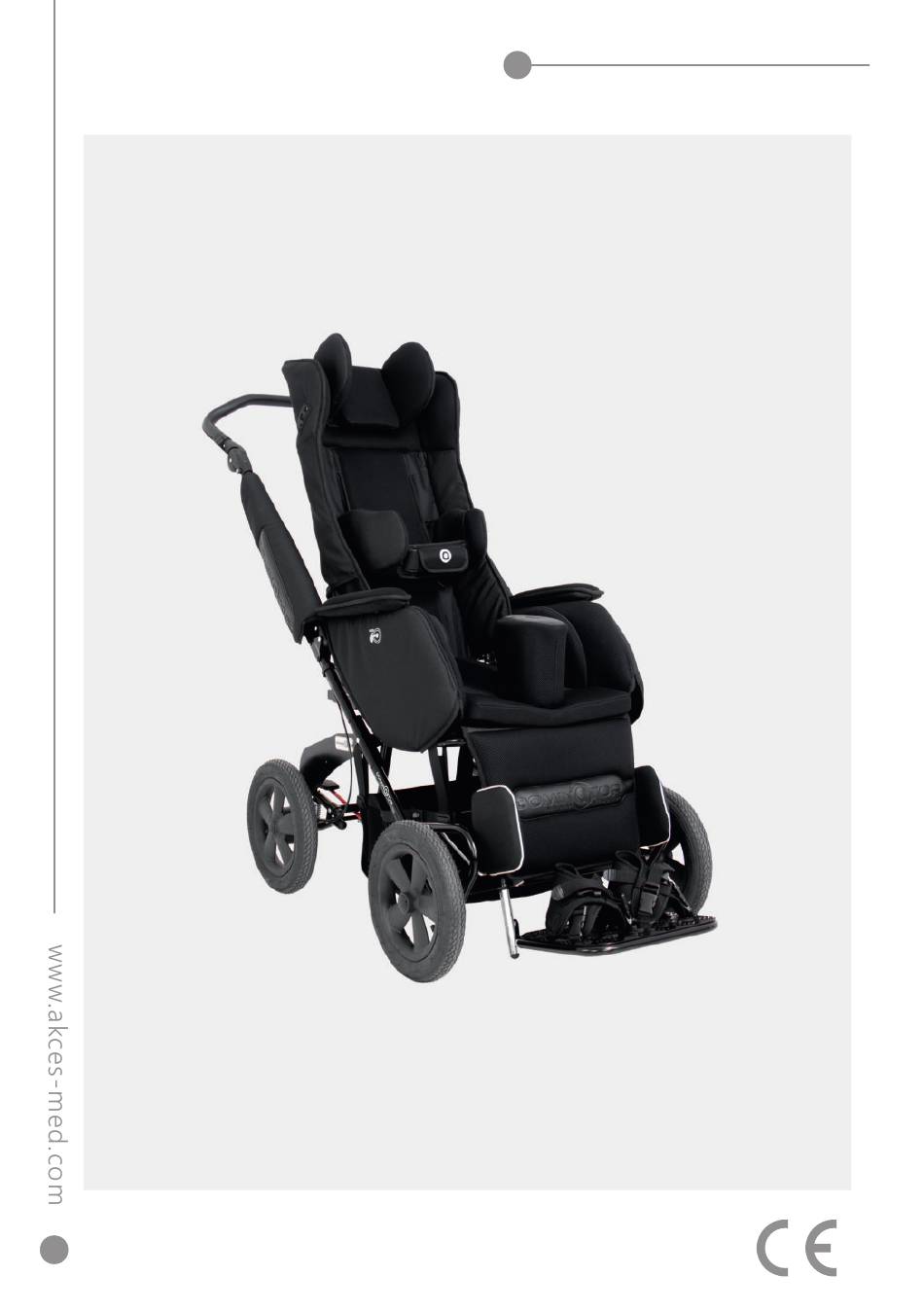

- Page 1 DOMINATOR Pro Special needs stroller User Manual...
- Page 2 Manufacturer takes responsibility for proper usage of the device only when the product was purchased from qualified Akces-MED Ltd. employee or at specialized medical store! Akces-MED Ltd. reserve the right to introduce technical and trading changes in the content of the instruction without warning.
-
Page 3: Table Of Contents
Contents Introduction....................................4 1. The purpose of user manual...............................5 2. Indications and contraindications for use........................5 3. General characteristic of the stroller..........................7 4. Size table....................................8 5. How to use the stroller.................................9 5.1 Unfolding the stroller..............................9 5.2 Folding the stroller..............................11 5.3 Adjustable footrest..............................12 5.4 Adjustment of head supports..........................13 5.5 Adjustment of chest supports with belt......................14 5.6 Adjustment of pelvic supports..........................15... -
Page 4: Introduction
Introduction DOMINATOR Pro™ is an innovative special needs stroller designed for the most demanding users. Its advanced safety and adjustment system make it perfect for both children and adults with limited mobility. Ideal for home use, rehabilitation centers, or outdoor activities, the stroller ensures stability and safety. -
Page 5: The Purpose Of User Manual
1. The purpose of user manual ATTENTION! The instruction manual contains basic information necessary to properly prepare the stroller before use, use the stroller, maintain and clean the stroller. This user manual should be kept in an easily accessible place. The manual is intended for people who look after disabled users, as well as for doctors and physiotherapists handling the stroller. - Page 6 2. Indications and contraindications for use Contraindications: Critical condition of the user; ź Paralysis; ź Deep sedation; ź Unstable fractures with specific orthopedic recommendations, including spine fractures; ź Untreated deep vein thrombosis; ź Hemodynamic instability; ź Identified brain dysfunction when sitting upright; ź...
-
Page 7: General Characteristic Of The Stroller
3. General characteristic of the stroller ADJUSTABLE HEAD SUPPORTS HAND BRAKES ADJUSTABLE PUSH HANDLE BACKREST WITH HEIGH AND TILT ANGLE ADJUSTMENT SIDE TUBES PROTECTORS ADJUSTABLE ARMRESTS SEAT CUSHION FOLDABLE FRAME SEAT WITH DEPTH ADJUSTMENT SIDE COVERS FOR CALVES INFLATABLE REAR WHEELS WITH DRUM BRAKE INFLATABLE FRONT WHEELS ADJUSTABLE FOOTREST... -
Page 8: Size Table
4. Size table Symbol Measurement Unit Size 1 Size 2 Size 3 indicative user height * [cm] < 150 < 180 < 180 seat width [cm] 20 - 36 25 - 40 30 - 47 seat depth [cm] 26 - 38 36 - 50 36 - 50 backrest width... -
Page 9: How To Use The Stroller
5. How to use the stroller 5.1 Unfolding the stroller CLICK ATTENTION! When unfolding the frame, pay special attention to the folding mechanism. When unfolding the frame, you will hear a characteristic "CLICK". The stroller's folding mechanism should overlap on both sides. - Page 10 5. How to use the stroller 5.1 Unfolding the stroller INFORMATION! The abdution block should be tightened under the stroller seat. INFORMATION! When you installing the armrests, pay attention to their markings. Right armrest - mounted on the user's right side. Left armrest - mounted on the user's left side.
-
Page 11: Folding The Stroller
5. How to use the stroller 5.2 Folding the stroller... -
Page 12: Adjustable Footrest
5. How to use the stroller 5.2 Folding the stroller 5.3 Adjustable footrest FOOTREST HEIGHT ADJUSTMENT FOOTREST ANGLE ADJUSTMENT... -
Page 13: Adjustment Of Head Supports
5. How to use the stroller 5.3 Adjustable footrest ANGLE ADJUSTMENT OF THE FOOTREST PLATE INFORMATION! By extending the screw, the degree of inclination of the footrest plate is adjusted. The adjustment is done on both sides. 5.4 Adjustment of head supports ATTENTION! Be sure to tighten the knobs after the adjustment is complete! -
Page 14: Adjustment Of Chest Supports With Belt
5. How to use the stroller 5.5 Adjustment of chest supports with belt ATTENTION! After completing the adjustment, remember to tighten the knobs firmly! -
Page 15: Adjustment Of Pelvic Supports
5. How to use the stroller 5.6 Adjustment of pelvic supports INFORMATION! Adjustment of the pelvic supports is located under the seat of the wheelchair. ATTENTION! Be sure to tighten the knobs after the adjustment is complete! 5.7 Seat depth adjustment ATTENTION! Before using the stroller, make sure that the seat is properly mounted... -
Page 16: Backrest Tilt Adjustment
5. How to use the stroller 5.8 Backrest tilt adjustment ATTENTION! Before using the product, check the correct locking of the backrest. The locking mechanism should be at the same level on both sides of the backrest. 5.9 Backrest height adjustment ATTENTION! After adjusting the height, be sure to tighten the screws firmly! Before use, make sure they are tightened firmly and the backrest does not fall down on its own. -
Page 17: Tilt-In-Space Function
5. How to use the stroller 5.10 Tilt-in-space function INFORMATION! While pressing the bucket function adjustment lever, simultaneously pull the backrest until the desired angle is set, release the lever. INFORMATION! After setting the tilt-in-space angle, adjust the depth of the backrest upholstery. To do this, adjust the length of the straps attached behind the backrest of the wheelchair, and when they are finished adjusting, tighten the buckles firmly. -
Page 18: Abduction Block Adjustment
5. How to use the stroller 5.11 Abduction block adjustment INFORMATION! The abduction block can be mounted in 4 possible positions on the seat of the stroller. It should be inserted into one of the holes and secured with a knob on the bottom of the seat. 5.12 Armrests adjustment INFORMATION! It is possible to adjust the depth of the armrests - loosen the screws, set the desired depth, tighten... - Page 19 5. How to use the stroller 5.13 4-point feet stabilizing belts INFORMATION! Foot stabilizing belts are mounted under the footrest plate. Each strap should be threaded through a hole in the footrest plate and secured with an adjuster. The diagram for threading the belts through is shown below.
-
Page 20: 4-Point Feet Stabilizing Belts
5. How to use the stroller 5.13 4-point feet stabilizing belts VERSION II... -
Page 21: Hand Brakes
5. How to use the stroller 5.14 Hand brakes LOCK THE BRAKE UNLOCK THE BRAKE STRONG LEVEL OF BRAKE LOCKING FORCE MEDIUM LEVEL OF BRAKE LOCKING FORCE MODERATE LEVEL OF BRAKE LOCKING FORCE ATTENTION! The hand brakes have a brake force lock. They have three stages: weak, medium and strong. Pressing only the handles without activating the red lock causes braking - helpful when descending sloping terrain. -
Page 22: The Use Of The Stroller
6. The use of the stroller ATTENTION! stroller has to be used with compliance to guidelines included in this DOMINATOR Pro® user manual. Remember to use the product only with someone who is trained and knowledgeable. 6.1 Preparation of the user... -
Page 23: Preparation Of The Stroller
6. The use of the stroller 6.2 Preparation of the stroller 1. Before use it is necessary to: unfold the device, ź place the device on even ground, ź make sure that all parts are serviceable, correctly mounted and stable, ź... -
Page 24: How To Use Vests
6. The use of the stroller 6.3 How to use vests ATTENTION! The vest provides posture support for wheelchair users as well as users sitting in positioning chairs or other rehabilitation seats. When properly used, the vest allows the user to adopt the correct sitting position for a longer period of time. - Page 25 6. The use of the stroller 6.3 How to use vests 4) Secure the vest: fasten and adjust the lower straps of the vest, so that the lower edge of the vest is located near ź the lower abdomen of the user, fasten the horizontal strap of the vest (if present), ź...
- Page 26 6. The use of the stroller 6.3 How to use vests How to care for the vest: The vest works effectively only if kept clean and maintained in accordance with the manufacturer's instructions. Before each use of the vest, check whether: 1) The vest straps are not frayed or worn.
-
Page 27: Safety Rules
7. Safety rules ATTENTION! DOMINATOR Pro stroller has to be used in compliance with guidelines in this user manual. Before each use, prepare the user and the device. It is highly important to consult either doctor or physiotherapist in order to make right decision concerning the choice of stroller and its size. - Page 28 7. Safety rules 11. The stroller should be stored and used away from sources of fire or high temperature. Moreover, stroller shouldn't be stored in rooms with high humidity 12. Secure stroller during transportation in order to avoid any possible damages. Manufacturer doesn't take responsibility for damages which appeared due to improper preparation of the device during transportation.
-
Page 29: Terms Of Warranty
(ph.+ 48 17 864 04 77, e-mail: export@akces-med.com) 9. Maintenance and cleaning The stroller DOMINATOR Pro™ which is a medical device, should always be kept clean and should be used in accordance with the manufacturer's instructions. The stroller should be kept in a clean, dry and ventilated room. - Page 30 first check in an invisible place whether the product will not discolor or damage the disinfected surface. ATTENTION! Remember that upholstery has to be always dry before using! The manufacturer of the stroller, Akces-MED. Ltd., is not responsible for any damages caused by using unsuitable cleaners. Before using it is necessary to: clean wheels ź...
- Page 31 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Before each use. General condition of the Check: In case of any damage or defects, product.
- Page 32 9. Maintenance and cleaning TECHNICAL INSPECTION Technical inspections should be performed regularly. Before servicing, the product should be thoroughly cleaned to reveal any hidden damage. Frequency What should be checked? What should be done? Remarks Once a month. Wheel axles, quick Check: Clean the wheels when dirty.
-
Page 33: Labelling
10. Labelling Declaration that the product meets the essential Do not chlorinate requirements Catalog number Do not iron Serial number Do not dryclean Please read the manual instructions before use Do not bleach You need to make special precautions Carefull, delicate content Manufacturer It is forbidden to either go up or down the stairs;... - Page 36 MANUFACTURER Authorised Dealer Akces-MED Ltd. Jasionka 955 B 36-002 Jasionka tel. +48 17 864 04 77 e-mail: export@akces-med.com BDO: 000031619 © Sławomir Wroński 2023...
