Lumens VC-TR60A Quick Installation Manual

VC-TR60A Quick Installation Guide

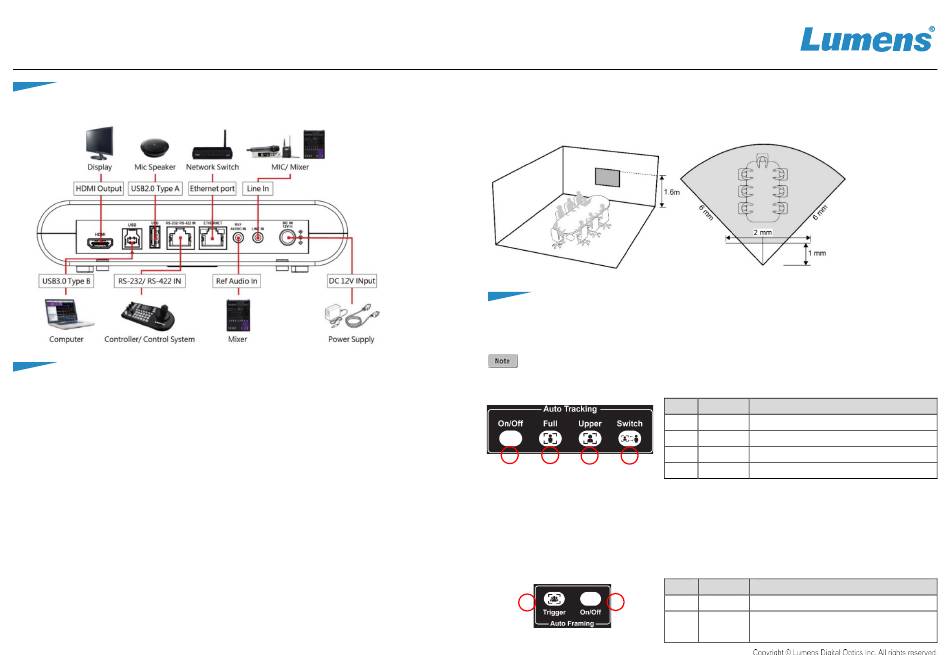

1. I/O Interface
2. Precautions for Installation
2.1 Power with a DC 12V power adapter or a PoE+ (IEEE802.3at) Network switch.
2.2 We recommend installing the camera on top of a display or suspending it
from the ceiling. Avoid placing on the desktop to prevent obstructing the lens
view and audio quality.
2.3 Auto Tracking/ Framing:
 Avoid having images of people on posters or displays behind the target.
2.4 Voice Tracking:
 Avoid overlapping people for greater tracking accuracy.
 Keep a clear space in front of the camera (L: 1m, W: 2m) with no obstructions.
 Keep a distance between the table and wall to reduce sound reflections.
 We recommend using acoustic/ sound-absorbing materials in the room.
2.5 Installation Diagram:
Supported tracking distance:

Auto Tracking, Auto Framing 6-12m/ Voice Tracking 2-8m
3. Start Tracking
Use the remote control to start the tracking function.
Choose either Auto Tracking, Voice Tracking or Auto Framing function.
 Auto Tracking
1 2
3 4
 Voice Tracking/ Auto Framing
Pressing the Auto Framing On/ Off button to start the voice tracking/ auto
framing according to the [Tracking Mode] on the webpage.
1
2
www.MyLumens.com
NO. Button Function
1
On/ Off Enable / Disable Auto Tracking
2
Full Camera frames presenter's full body
3
Upper Camera frames presenter's torso
4
Switch Switch target to a different presenter
NO. Button Function
1 On/ Off On/ Off voice tracking/ auto framing
Manual Framing correction.
2
Trigger
(In Auto Framing mode.)
