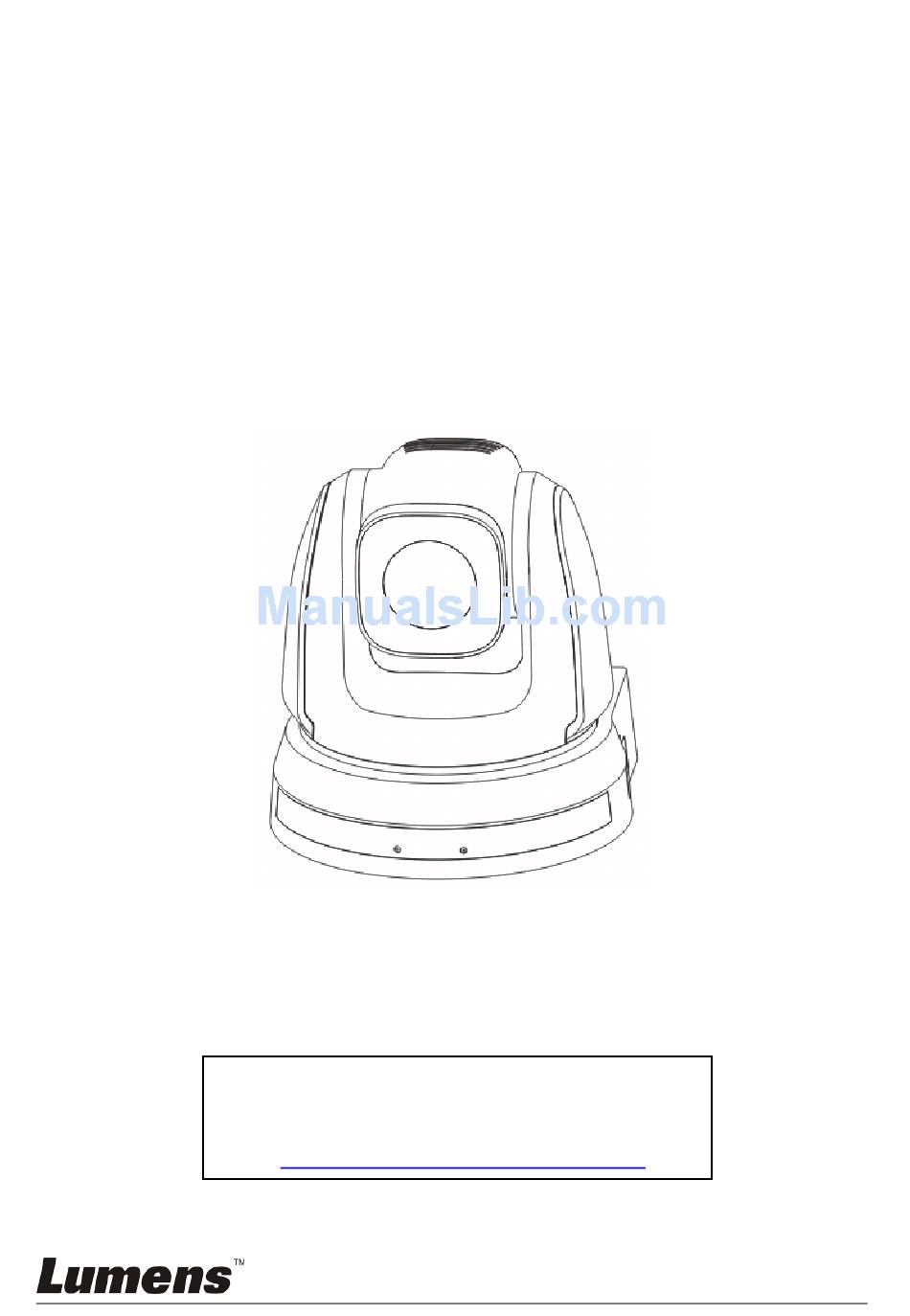

- Page 1 VC200 HD Camera (Camera) Installation Guide - ENGLISH [Important] To download the latest version of Quick Start Guide, multilingual user manual, software, or driver, etc., please visit Lumens http://www.Mylumens.com/goto.htm English - 1...
-
Page 2: Table Of Contents
Setting Menu ..................20 Chapter 6 Descriptions of major functions ..........26 I would like to switch to VC200 ............26 I would like to save the current lens position data ......26 I would like to clear the saved position data ........26 I would like to turn on the back light compensation function .... - Page 3 I would like to set the image mode ........... 27 I would like to freeze images ............27 6.10 I would like to rotate the image ............27 6.11 I would like to change the camera direction ........27 6.12 I would like to display the current status ........... 27 6.13 I would like to reset to the original setting ........
-
Page 4: Copyright Information
Inc. Copying, reproducing or transmitting this file is not allowed if a license is not provided by Lumens Digital Optics Inc. unless copying this file is for the purpose of backup after purchasing this product. In order to keep improving the product, Lumens Digital Optics Inc. hereby reserves the right to make changes to product specifications without prior notice. -
Page 5: Chapter 1 Safety Instructions
Chapter 1 Safety Instructions Always follow these safety instructions when setting up and using the HD Camera: 1. Use attachments only as recommended. 2. Use the type of power source indicated on the HD Camera. If you are not sure of the type of power available, consult your distributor or local electricity company for advice. -
Page 6: Precautions
Precautions Warning: To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. If HD Camera will not be used for an extended time, unplug it from the power socket. Note Risk of Electric Shock DO NOT OPEN Caution: To reduce the risk of electric shock, do not remove cover (or back). -
Page 7: Chapter 2 Package Contents
Chapter 2 Package Contents Instruction for VC200 Remote Control Installation RS-422 Connector Power Adapter M3 Screws Appearance may vary depending on country/region Metal Plate A Metal Plate B English - 7... -
Page 8: Chapter 3 Product Overview
Chapter 3 Product Overview 3.1 Product Overview Front View Back View 1. Camera lens 2. Power LED indicator 3. Standby LED indicator 4. VIDEO Output 5. Power input 6. IR SELECT 7. OUTPUT Switch 8. Camera Address Selectors 9. RS-232 Output 10. -
Page 9: Chapter 4 Instruction For Installation
4.1.1.1 Confirm the position for the object to be captured. 4.1.1.2 Confirm whether the VC200 is set at a proper distance from other light sources. 4.2 Instruction for Installation 4.2.1 I would like to install VC200 on the desk 4.2.1.1 Precautions for installation... - Page 10 4.2.2.1 Prepare for the parts and equipment required during the installation 1. Accessories of VC200 in the box (metal plates A, B, M3 screw x 7) 2. Screw for locking on ceiling mounted hanger x 4 3. Drilling machine, screw driver, ladder 4.2.2.2 Diagram of Size...
- Page 11 M3 threaded hole threaded threaded hole hole Metal plate B - Ceiling side English - 11...
- Page 12 2. Metal plate A - Machine side Metal plate A Locking screw Metal plate A - Machine side English - 12...
- Page 13 4.2.2.3 Precautions for installation 1. Before installation, please confirm the orientation of the machine relative to the object to be captured 2. It is recommended that the machine should be set at a distance of more than 1 meter away from the object to be captured. Please adjust for a best distance according to the magnification of the lens 1 meter ↑...
- Page 14 2. Fix the metal plate A on the machine base with 4 M3 screws. 3. Lock the metal plate B on ceiling mounted hanger. ※Caution: (1) Please use the hanger that has obtained UL security approval (2) Please reserve the hole for the connecting wires of the camera 4.
- Page 15 4.2.2.5 How to Remove 1. Unplug the connection cable from the camera 2. Uninstall the camera together with the celing, loosen the three screws that fix the metal plates A and B and push to the left to remove the machine 3.
-
Page 16: Connection Unit
4.3 Connection Unit 4.3.1 Image out 4.3.1.1 For connection to HDTV/Computer monitor HDMI Cable Monitor HDTV 4.3.1.2 For connection to TV C-Video Cable English - 16... - Page 17 4.3.1.3 For connection to the video output device Component adaptor HDTV 4.3.2 For controlling several VCs with the computer 4.3.2.1 For connection to one computer and connecting several VCs (RS-232 in/out) in tandem <Remark> With RS-232 in/out, at most seven VCs can be connected. English - 17...
- Page 18 4.3.2.2 For connection to one computer and connecting several VCs (RS-422) in tandem <Remark> Please refer to 7.2 RS-422 Connection for the RS-422 connection instructions. <Remark> With RS-422, at most seven VCs can be connected. English - 18...
-
Page 19: Chapter 5 Remote Control And Setting Menu
<Remark> The below functions are listed alphabetically. Item Description Power Power switch Camera Select 1~3 VC200 select Preset Appoint an ID (0 ~ 99) to save the current position data Reset Appoint an ID (0 ~ 99) to delete the... -
Page 20: Setting Menu
5.2 Setting Menu 5.2.1 Main Menu: <Remark> Press [Menu] on the Remote Control to enter the setting menu; The bold underlined values in the following table are defaults. 1st Level 2nd Level 3rd Level Function Descriptions Major Minor Items Adjustment Items Values 1. - Page 21 1/2000 1/1750 1/1500 1/1250 1/1000 1/1000 1/725 1/600 1/500 1/425 1/350 1/300 1/250 1/215 1/180 1/150 1/125 1/120 1/100 1/100 1/90 1/75 1/60 1/50 1/30 1/25 1/15 1/12 1. F1.6 2. F2 3. F2.4 4. F2.8 5. F3.4 6. F4 7.
- Page 22 1. -3dB 2. 0dB 3. 2 dB 4. 4 dB 5. 6 dB 6. 8 dB 7. 10 dB 8. 12 dB Manual Gain Manually set the gain 9. 14 dB 10. 16 dB 11. 18 dB 12. 20 dB 13.
- Page 23 1/60 1/50 1/30 1/25 1/15 1/12 1. F1.6 2. F2 3. F2.4 4. F2.8 5. F3.4 6. F4 7. F4.8 Manual Iris Manually set the aperture 8. F5.6 9. F6.8 10. F8 11. F9.6 12. F11 13. F14 14. CLOSE 1.
- Page 24 Manually adjust the red gain Manual R This item can be turned 0~255 Gain on when the mode is selected to Manual Manually adjust the blue gain Manual B This item can be turned 0~255 Gain on when the mode is selected to Manual Adjust the aperture Aperture...
- Page 25 Turn on/off the infrared ON/Off IR Receive reception ON/Off Prompt Reset all configurations to ON/Off Factory Reset factory default settings. Display the current setting Status status English - 25...
-
Page 26: Chapter 6 Descriptions Of Major Functions
Chapter 6 Descriptions of major functions 6.1 I would like to switch to VC200 1. Press [Camera 1 ~ 3] on the Remote Control to select VC200. Camera 1 ~ 3 is selected with IR SELECT. 6.2 I would like to save the current lens position data 1. -
Page 27: I Would Like To Adjust The Focal Length
2. Press [Slow -] on the Remote Control to zoom out images. 6.7 I would like to adjust the focal length 6.7.1 Auto focus 3. Press [AF] on the Remote Control to adjust automatically. 6.7.2 Manual focus 3. Press [MF] on the Remote Control to turn on the manual focus function. -
Page 28: Chapter 7 Dip Switch Settings
Chapter 7 DIP Switch Settings <Note> Please turn off the machine before changing DIP switch setting. 7.1 DIP SWITCH 7.1.1 OUTPUT Swtich Output Mode Setting Output Mode Setting 1080i/59.94 1080p/29.97 720p/59.94 720p/29.97 1080i/50 1080p/25 720p/50 720p/25 1080p/60 1080p/50 7.1.2 IR SELECT Setting English - 28... - Page 29 7.1.3 Camera Address Selector Setting Function Descriptions ID 0~7 Reserved 7.1.4 System Switch Setting Function Descriptions RS-232C/RS-422 selector DIP 1 OFF : RS-232C / ON : RS-422 DIP 2 Reserved Communication baud rate selector DIP 3 OFF : 9600 / ON : 38400 DIP 4 Reserved English - 29...
-
Page 30: Rs-422 Connector
7.2 RS-422 Connector 7.2.1 RS-422 Pin Description Pin NO. Function RXD OUT - RXD OUT + TXD OUT - TXD OUT + RXD IN - RXD IN + TXD IN - TXD IN + 7.2.2 Use RS-422 Connection 1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow in the figure below 2. - Page 31 3. Insert the wired RS-422 connector back to the camera. Now the connection is completed. <Note> When RS-422 connection is being used, do not use RS-232C connection. English - 31...
-
Page 32: Chapter 8 Troubleshooting
Chapter 8 Troubleshooting This chapter describes problems you may encounter while using VC200. If you have questions, please refer to related chapters and follow all the suggested solutions. If the problem still occurred, please contact our distributors or service center.
