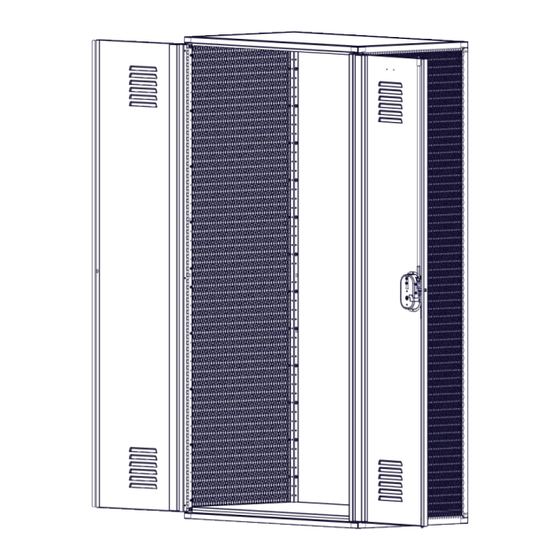

Fully Framed Patriot Gear LOCKER – KD
Assembly Instructions
Fasteners & Tools Needed
The following items are in the hardware kit
shipped with the locker:
8615–Number plate
8671–Aluminum Rivet
8621- Steel rivet
8709-Screw
..
You will need these tools to assemble the Patriot
Gear locker.
Rivet gun.
Drill with #3 Philips bit
Flat blade and Phillips head screwdrivers.
Stepladder
www.pencoproducts.com
STEP 1- Check Parts
Unpack the component pieces for the basic locker.
You should have two sides, a back, a top, and
bottom, for the locker body. You should also have a
left hand and a right hand door.
PENCO PRODUCTS, INC
|
800-562-1000
|
Fax: 800-248-1555
1820 Stonehenge Drive, Greenville, NC 27858
|
general@pencoproducts.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for PENCO Patriot Fully Framed Gear LOCKER KD
Summary of Contents for PENCO Patriot Fully Framed Gear LOCKER KD
- Page 1 You will need these tools to assemble the Patriot Gear locker. Rivet gun. Drill with #3 Philips bit Flat blade and Phillips head screwdrivers. Stepladder PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555 general@pencoproducts.com...
- Page 2 2A- Lay locker top on flat surface on the ground. Insert the two sides onto the cast corner pieces of the top assembly. 2B-1 Insert locker back into slot of the top. PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555 general@pencoproducts.com...
- Page 3 2B-2 With the back inserted install one 8709 screw on each side of the back about half way up. Note holes are to align to make sure back is in proper position. PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555 general@pencoproducts.com...
- Page 4 Fully Framed Patriot Gear LOCKER – KD Assembly Instructions 2C-1 Insert cast corner pieces of locker bottom into the side channels. PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555 general@pencoproducts.com...
- Page 5 Fully Framed Patriot Gear LOCKER – KD Assembly Instructions 2C-2 Install one screw into each corner of the locker bottom as shown. PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555 general@pencoproducts.com...
- Page 6 Fully Framed Patriot Gear LOCKER – KD Assembly Instructions 2D- Next install one screw into the locker top in each corner as shown. PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555 general@pencoproducts.com...
- Page 7 Fully Framed Patriot Gear LOCKER – KD Assembly Instructions PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555 general@pencoproducts.com...
- Page 8 2E- Now rotate locker body so the bottom is on the ground. 2F-Install screws to locker back at U cut locations (6- inch intervals) on each side. PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555...
- Page 9 Fully Framed Patriot Gear LOCKER – KD Assembly Instructions 2I-Install doors using 8621 rivets at each hole location on hinge. PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555 general@pencoproducts.com...
- Page 10 Fully Framed Patriot Gear LOCKER – KD Assembly Instructions PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555 general@pencoproducts.com...
- Page 11 Shell assembly is now complete. You can now add locker accessories. Lockers to be floor and wall anchored and must be plumb and level after anchoring before use. PENCO PRODUCTS, INC 1820 Stonehenge Drive, Greenville, NC 27858 www.pencoproducts.com 800-562-1000 Fax: 800-248-1555...
