Stadium Fully Framed LOCKER – KD
Assembly Instructions
Fasteners & Tools Needed
The following items are in the hardware kit
shipped with the locker:
8615–Number plate
8671–Aluminum Rivet
8621- Steel rivet
8709-Screw
8696- Coat Hook,
8717 Coat Rod Hook
6CR___-Coat Rod
You will need these tools to assemble the Stadium
locker.
Rivet gun.
Drill with #3 Philips bit
Flat blade and Phillips head screwdrivers.
Stepladder
www.pencoproducts.com

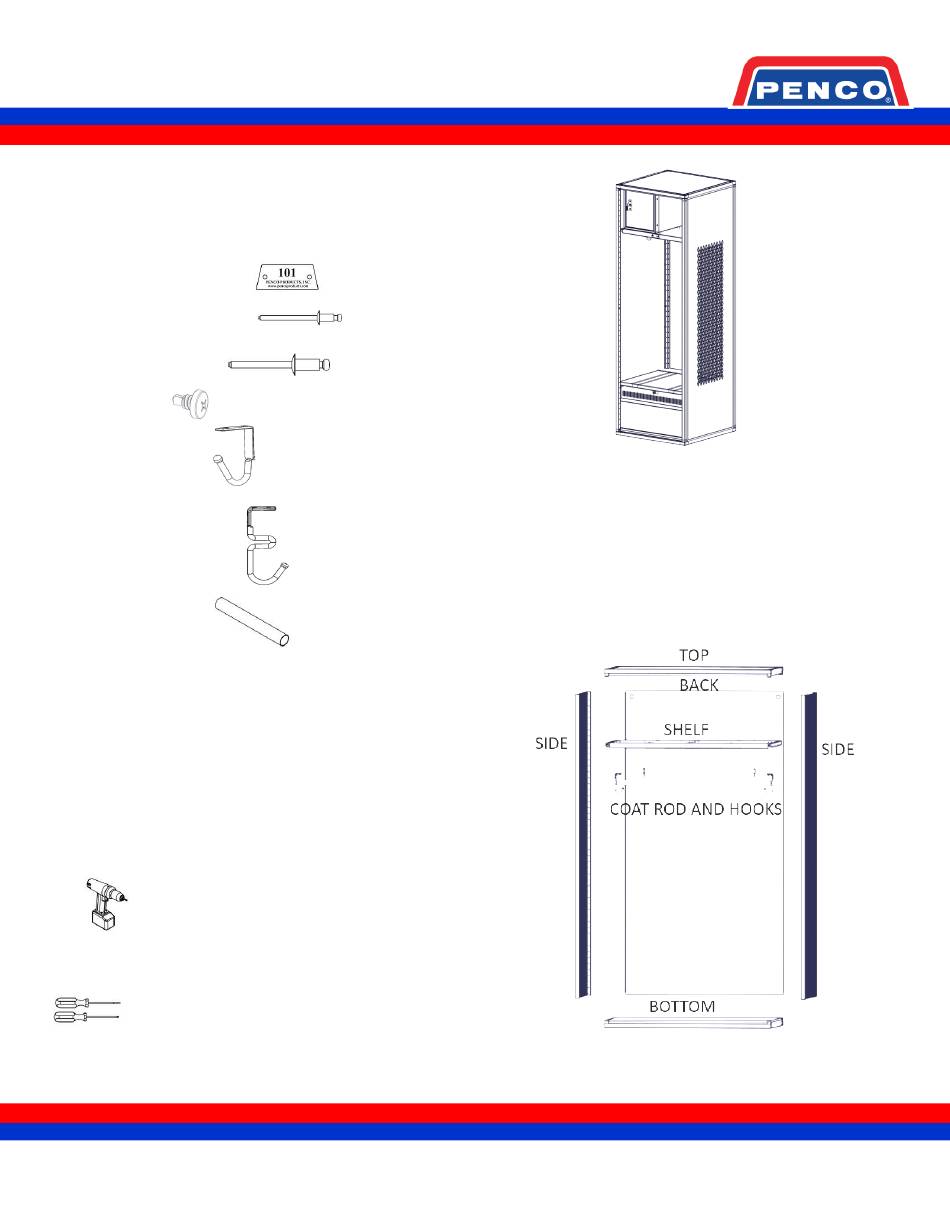

STEP 1- Check Parts
Unpack the component pieces for the basic locker.
You should have two sides, a back, a top, shelf, coat
rod hooks, coat rod, coat hooks, and bottom, for the
locker body. Options could include security box
and/or foot locker
