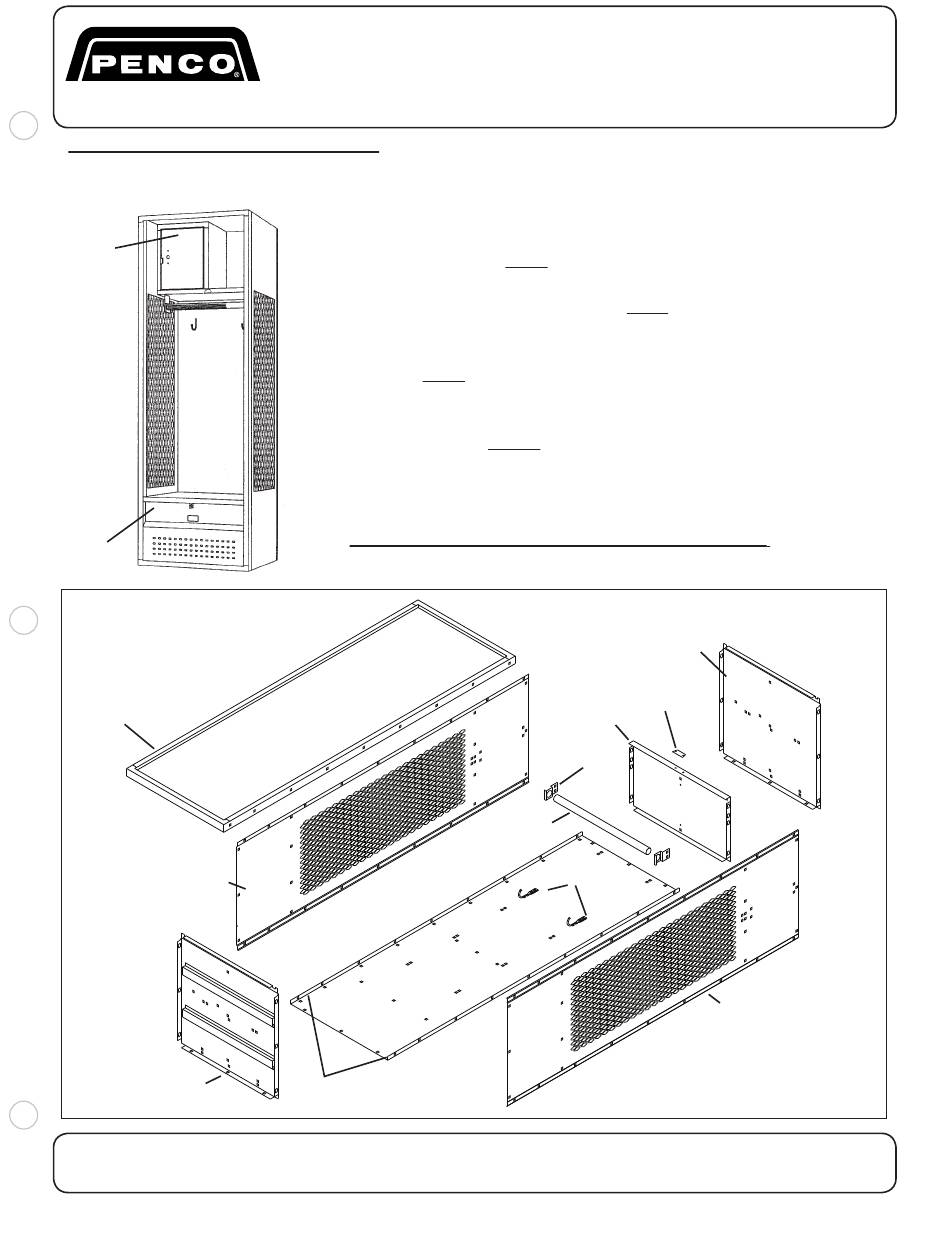

PENCO Stadium 86190 Assembly Instructions

Assembly of Stadium Locker

All bolts are to be inserted on outside of locker while all nuts are to be placed on the inside of the locker. Each
Stadium locker is assembled as a stand-alone unit. Individual units can be joined together for placement in a row.
Optional
Security
Box
Optional
Footlocker
View of locker
with back on floor
or saw horses.
Locker
Frame
Side Panel
Bottom
Penco Products, Inc. •
Stadium
(Knocked Down Version)
(See Page 2 for Optional Security Box & Footlocker)
1. Place back panel on a pair of saw horses.
2. Bolt hooks to back panel.
3. Bolt one side panel to the inside of a back panel flange.
4. Bolt bottom to side and back panel.
5. Bolt second side panel to bottom and to the inside of the other back panel flange.
6. Loosely bolt shelf and rod holders to side panels and insert rod into rod holder
holes.
7. Bolt top to the inside of the side panels and to the inside of the back panel.
8. Tighten bolts that anchor shelf and rod holders (leave bolts loose if installing Security
Box).
9. Place locker frame over outside edge of side panels, bottom and top and bolt
together.
10.Stand locker upright and install on a level surface.
11. Line up number plate with holes at front of shelf and rivet into place.
All lockers must be anchored to the floor and / or wall.
See page 2 for assembly of optional Security Box and Footlocker.
Back
Panel
Back Panel
Flanges
1-800-562-1000
www.pencoproducts.com
Locker Assembly
®
Instructions
Shelf
Rod Holder
Rod
Hooks
• Fax 800-248-1555
Page 1 of 2
Part No.
86190
Page 1 of 2
Top
Number
Plate
Side Panel
