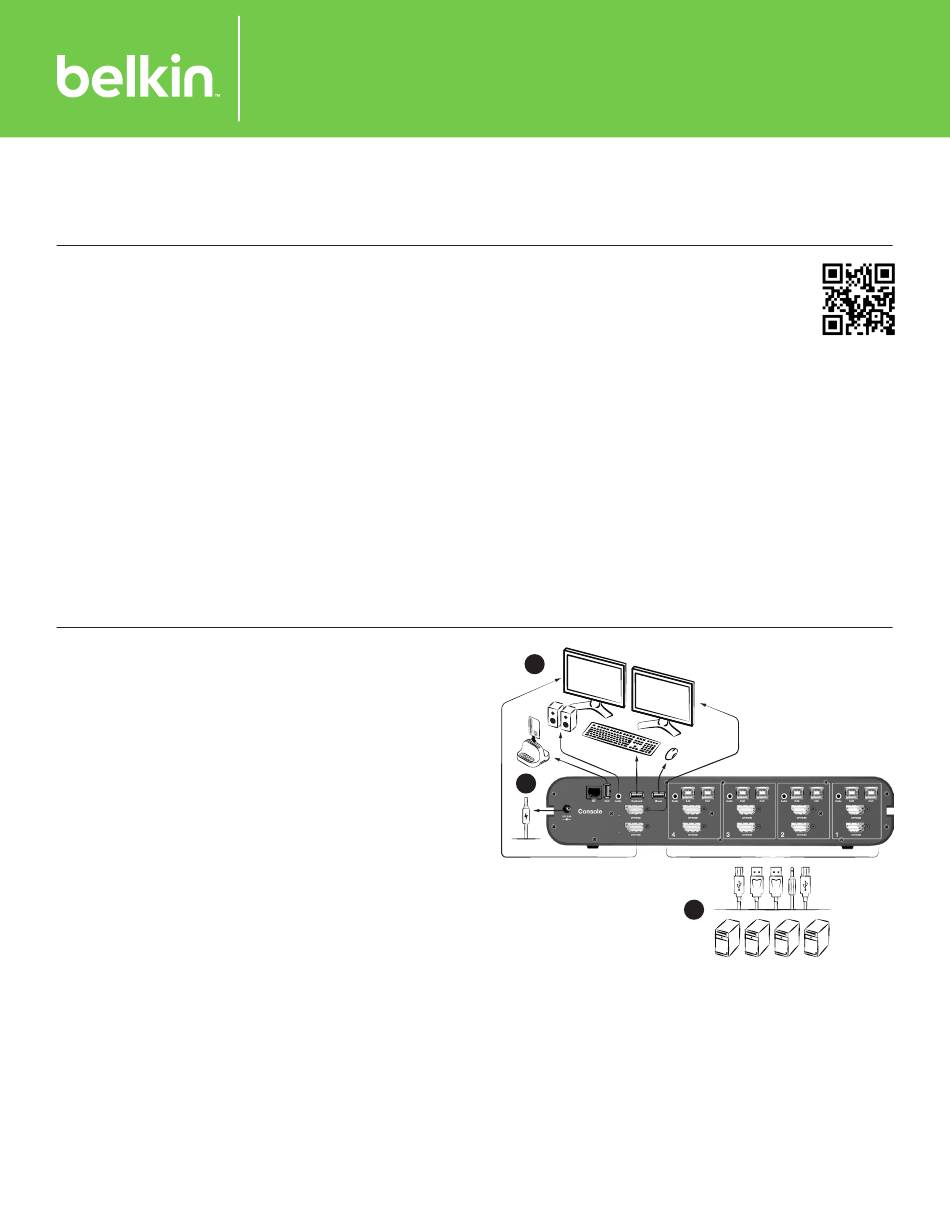

Quick Installation Guide
2/4 Port Secure Single/Dual-Head DP/HDMI-DP/HDMI KVM Switches
Objectives
• Scan the QR code or visit Belkin Cybersecurity YouTube Playlist for Secure KVM Unboxing and Troubleshooting videos.
• This guide includes instructions for installing Belkin F1DN102KVM-UNN4 and F1DN102KVM-UN-4, F1DN202KVM-UNN4 and
F1DN202KVM-UN-4, F1DN104KVM-UNN4, F1DN104KVMUNN4Z and F1DN104KVM-UN-4, F1DN204KVM-UNN4, F1DN204KVMUNN4Z
and F1DN204KVM-UN-4 KVM Switches.
• Universal - Second Generation KVM allows sharing keyboard, video, mouse, audio and USB peripherals between multiple computers.
• This Manual and additional product documentation is available for online download on Belkin website. For further assistance please refer to: http://www.belkin.com/
us/Resource-Center/Cybersecurity/Secure-KVM-Switching/.
General
• Verify that all peripherals and computers are turned OFF prior to
connecting them to the product.
• The KVM's back panel is divided into sections of Console Ports and
Computer Ports.
– Connect the peripherals to be shared by the KVM to the Console Ports.
– Connect each computer that needs access to shared peripherals to a
specific Computer Ports section.
– Make sure that every computer is connected to a separate Computer
Port section.
F1DN204KVM-UN-4 Model is shown
 Connect peripherals to the KVM
Console Ports:
• Keyboard & Mouse: Keyboard & Mouse:
Connect a USB keyboard and mouse to
the corresponding KVM console port. The
keyboard and mouse connected lights (rear
panel) will illuminate green. If the keyboard
or mouse are not authorized, the lights will
illuminate red.
• Video: Connect the monitor cable to the KVM
console video port. The EDID LEDs (rear
panel) will operate as follows:
– Off: no EDID
– Flicker: EDID read in progress
– On: EDID received
Note: EDID is only read in the first few
seconds of device boot. The secure switch
does not support hot plug or swap of displays.
In any swap of display(s) it is required to
restart the KVM.
• Audio peripherals: Connect headphones /
speakers to the KVM console audio-out port.
• Common Access Card (CAC/DPP)
Configuration and Operation: Please refer to
the relevant section.
Connect peripherals to the KVM

Computer (Host) Ports:
• Computer keyboard & mouse connection:
Connect each computer to the KVM keyboard

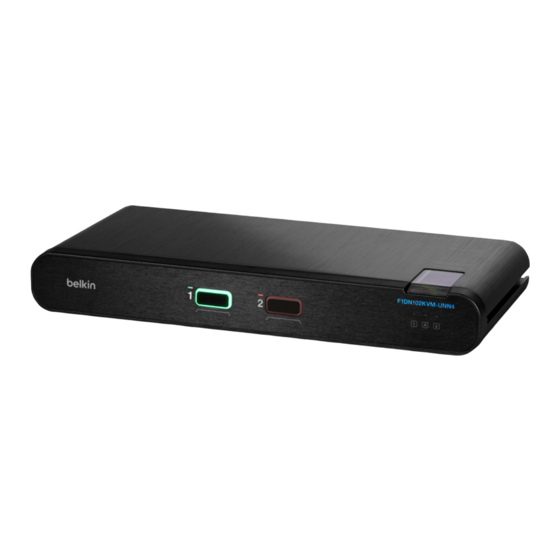

F1DN102KVM-UNN4: Belkin 2-Port Single Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch, No CAC PP4.0
F1DN202KVM-UNN4: Belkin 2-Port Dual Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch, No CAC PP4.0
F1DN104KVM-UNN4: Belkin 4-Port Single Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch, No CAC PP4.0
F1DN104KVMUNN4Z: Belkin 4-Port Single Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch, No CAC PP4.0 w/ Pre-configured Colors (G, R, W, Y)
F1DN204KVM-UNN4: Belkin 4-Port Dual Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch, No CAC PP4.0
F1DN204KVMUNN4Z: Belkin 4-Port Dual Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch, No CAC PP4.0 w/ Pre-configured Colors (G, R, W, Y)
F1DN102KVM-UN-4: Belkin 2-Port Single Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch PP4.0
F1DN202KVM-UN-4: Belkin 2-Port Dual Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch PP4.0
F1DN104KVM-UN-4: Belkin 4-Port Single Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch PP4.0
F1DN204KVM-UN-4: Belkin 4-Port Dual Head DP/HDMI to DP/HDMI Video Secure Desktop KVM Switch PP4.0
& mouse computer port using a USB A to
USB B cable. Connect the USB A end to the
computer and the USB B end to KVM.
• Computer Video connection: Connect each
computer to the KVM computer video
port using the corresponding video cable
(DisplayPort/HDMI), if two video connections
exist, make sure each PC video 1 is in the
bottom connector.
• Computer audio connection
computer to the KVM audio-in port using an
audio cable. Connect one end of the cable
to the computer's audio-out port using the
1/8" (3.5mm) stereo plug. Connect the other
end of the audio cable to the KVM audio-in
computer port.
– The push buttons on the product's front panel indicate which
computer has current access to shared peripherals.
– To switch peripherals between computers, press the appropriate push
button on the product's front panel.
– Before installing an administrator may have a need to configure the
KVM for CAC or DPP, and channel Illumination colorization. Consult
your administrator for details.
1
3
– Audio can be frozen on a channel (if
equipped) and allow for the operator
to hear the frozen channel audio when
switched to another channel.
– To freeze an audio channel press and
: Connect each
hold the channel button to be frozen for
3 seconds. The audio freeze light will
illuminate.
– To unfreeze an audio channel press and
hold any channel button for 3 seconds. The
audio freeze light will extinguish.
2
8820-02951 Rev.F00
