HMNF
Thank you for your purchase. Before discarding packaging material be sure you have
located all the parts including the necessary hardware and tools listed on the instruction
sheet below.
Parts List
# 1
1pc
Top Frame
# 4
1pc
Black Glass Top
Hardware List
No
Figure
A
B
Please do not tighten any bolt firmly before you put all of them in place.
Step 1) Put all parts on a soft surface to prevent scratches. Attach metal legs (#2) to top
frame (#1) by using bolt (A) as below shown.
# 2
4pcs
Metal Leg
Description
Bolt 1/4" x 20 x1/2"
Philips Head
3/16" x10mm
QTY
No
Figure
8
C
4
D
Assembly Instruction

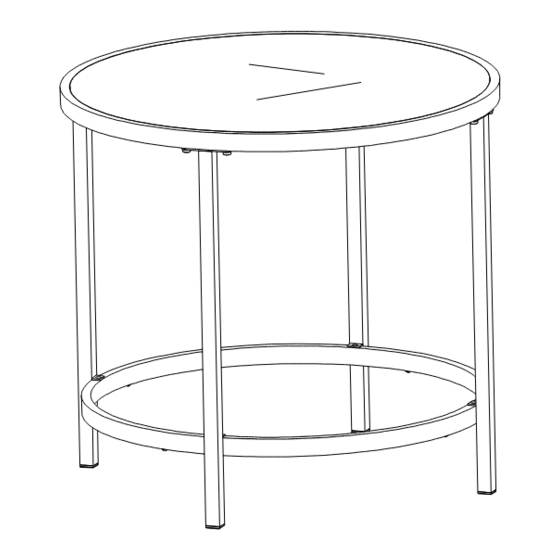

ATT154E
END TABLE
SKU# 23115404
# 3
1pc
Metal Ring
Description
Glass Tips
4mm Hex Allen
Wrench
QT
Y
4
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROOMS TO GO ATT154E
Summary of Contents for ROOMS TO GO ATT154E
- Page 1 Assembly Instruction ATT154E END TABLE HMNF SKU# 23115404 Thank you for your purchase. Before discarding packaging material be sure you have located all the parts including the necessary hardware and tools listed on the instruction sheet below. Parts List 4pcs...
- Page 2 Step 2) Please note no screwdriver included in hardware package and screwdriver is necessary for this assembly. Attach metal ring (#3) to metal legs (#2) by using Philips Head bolt (B) as below shown then tighten all bolts firmly. Step 3) Turn the table upside down, put glass tips (C) onto top frame (#1) then put black glass top (#4) on as below shown carefully.
