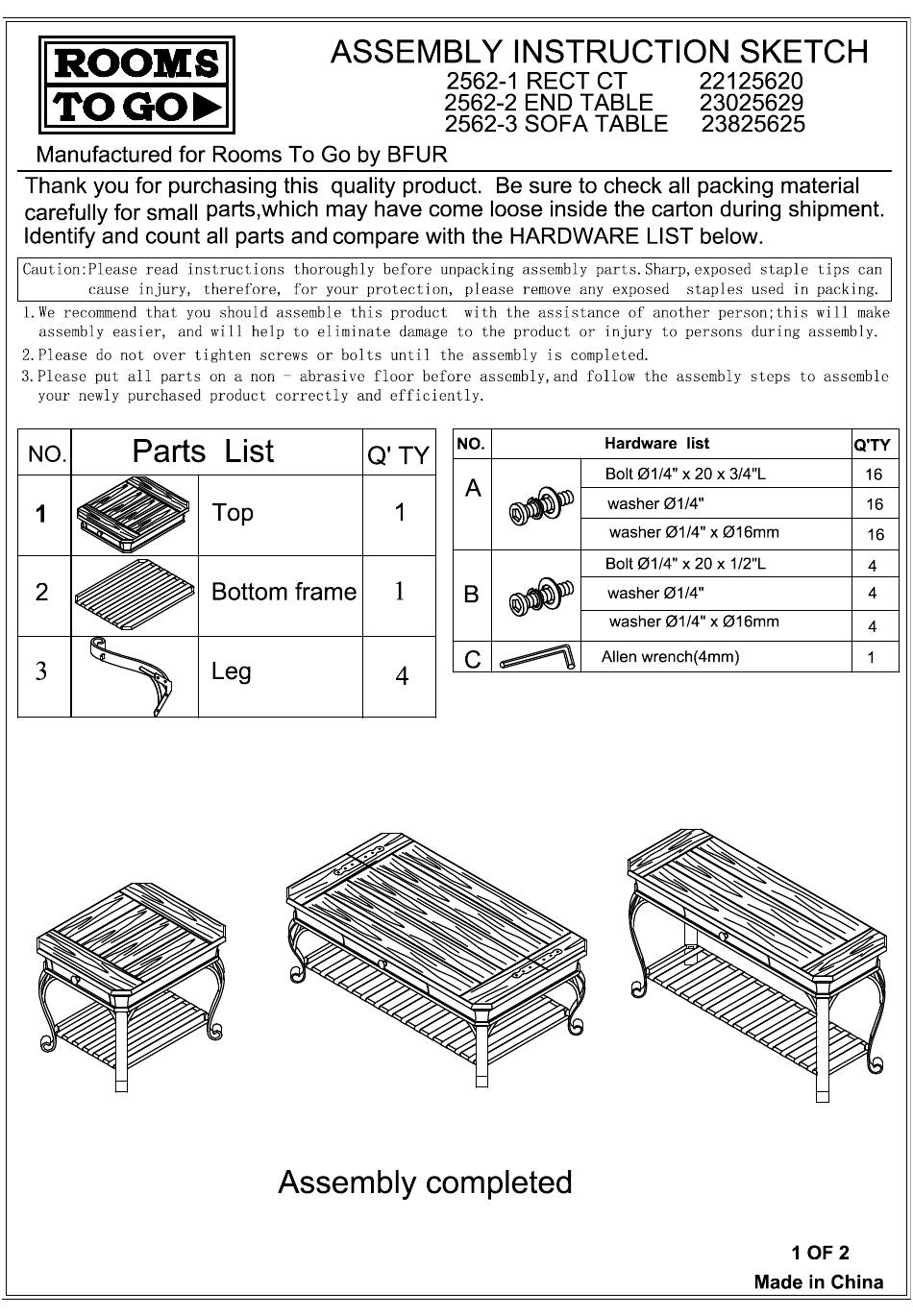

ROOMS TO GO SKETCH 2562-1 Assembly Instructions

Made in China
Caution:Please read instructions thoroughly before unpacking assembly parts.Sharp,exposed staple tips can
cause injury, therefore, for your protection, please remove any exposed staples used in packing.
1.We recommend that you should assemble this product with the assistance of another person;this will make
assembly easier, and will help to eliminate damage to the product or injury to persons during assembly.
2.Please do not over tighten screws or bolts until the assembly is completed.
3.Please put all parts on a non - abrasive floor before assembly,and follow the assembly steps to assemble
your newly purchased product correctly and efficiently.
Thank you for purchasing this quality product. Be sure to check all packing materia
carefully for small parts,which may have come loose inside the carton during shipm
Identify and count all parts and compare with the HARDWARE LIST below.
NO.
1
3
1
Parts List
Q' TY
Hardware list
A
Q'TY
NO.
2
Top
Leg

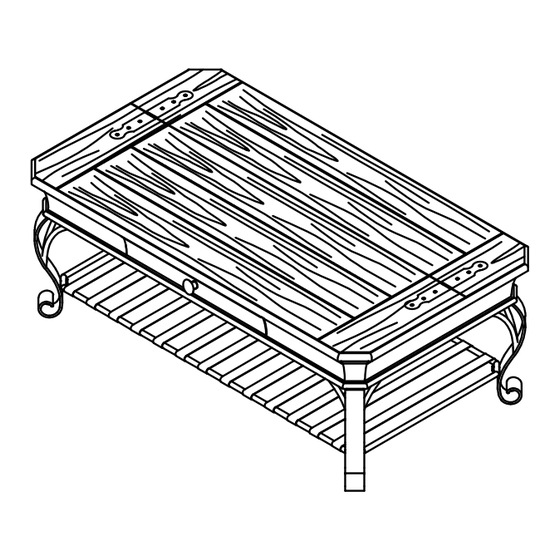

Assembly completed
Bolt Ø1/4" x 20 x 3/4"L
16
4
Allen wrench(4mm)
Bottom frame
1
1 OF 2
ASSEM BLY INSTRUCTION SKETCH
2562-1 RECT CT 22125620
2562-2 END TABLE 23025629
2562-3 SOFA TABLE 23825625
16
16
Bolt Ø1/4" x 20 x 1/2"L
B
C
washer Ø1/4"
washer Ø1/4" x Ø16mm
washer Ø1/4"
washer Ø1/4" x Ø16mm
4
4
4
1
Manufactured for Rooms To Go by BFUR
