KSIX BLUEX08 User Manual

ENGLISH – USER MANUAL
EXECUTIVE HANDSFREE EARSET – BLUEX08
1. Characteristics
1.1 Technical specifications
Playtime: Up to 20 hours
Battery: 120 mAh
Frequency range: 20 Hz - 20 kHz
Protection rating: IP64 (water-jet proof)
Operation range: 10 meters
Frequency range: 2.402GHz-2.480GHz
Maximum transmitted power in frequency ranges: +2dbm
Sensitivity: 42dB±3dB
Impedance: 16Ω
Charging time: 2 hours
Weight: 9 g
Material: ABS + PC
1.2 In the box
1 x Handsfree earset
1 x Ear pads
1 x USB-A to USB-C cable (30 cm)
1 x Manual
1.3 Product details
2. Initial setup
2.1 Turn on/off the handsfree
To turn on the handsfree earset press the multifunction
button for 3 seconds (red and blue lights will alternately
flash). To turn them off, do the same (red and blue lights will
flash 3 times until powering off).
2.2 How to pair the handsfree
Long press the multifunction button for 3 seconds, red and
blue lights will alternately flash to enter the pairing state
Turn on your phone's Bluetooth function and search
"BLUEX08" or "KSIX EXECUTIVE" on the devices list, then
click it and will automatically connect.
In the standby process, double-click the multi-function key
to redial the last number you called. Next time you power on
your handsfree; it will automatically pair with the last mobile
phone with which the headset was paired. Blue and red
lights will automatically flash.
Troubleshooting: If the handsfree do not turn on
automatically, it should be due to low battery. Please, charge
the handsfree. If they do not pair with your device properly,
reset the handsfree as instructed later in this manual.

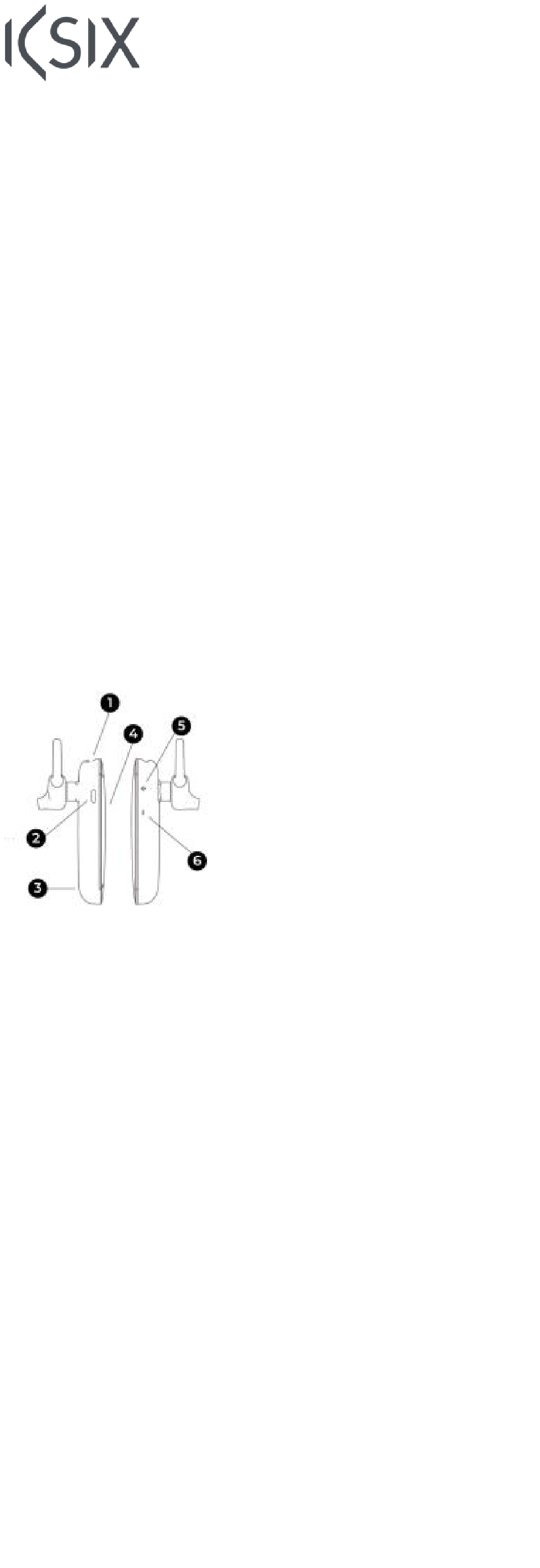

1. USB-C charging port
2. Multifunction button
3. Microphone
4. Indicator light
5. Volume + / Next song
6. Volume - / Previous song
