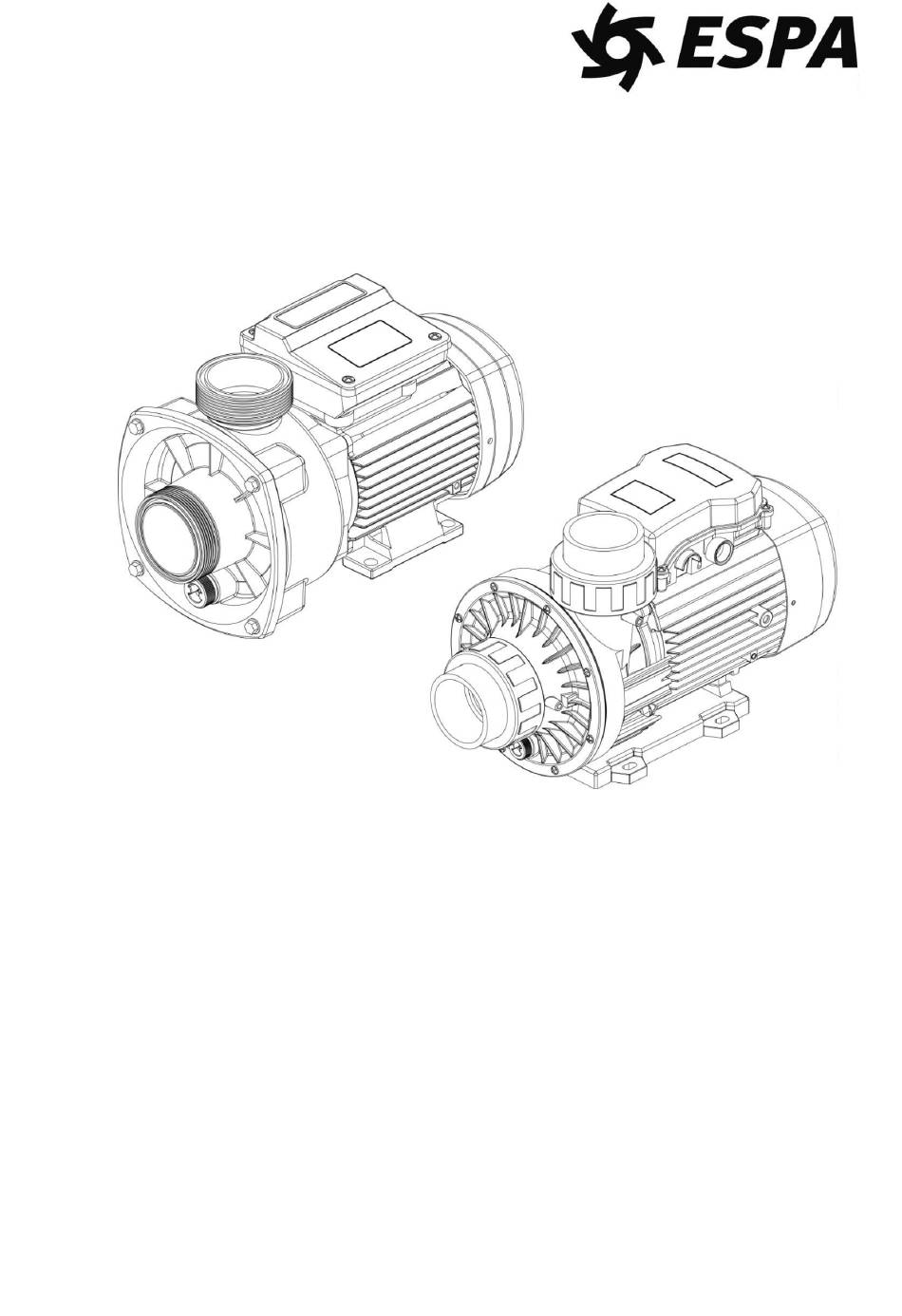

- Page 1 WIPER Instruction manual (Translation from the original Spanish)
- Page 2 - The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. Standard BS 50581. Banyoles, November 4th 2022 Josep Unyó (Technical Manager) ESPA 2025, SL Ctra. de Mieres, s/n – 17820 Banyoles Girona - Spain...
- Page 3 INSTRUCTION MANUAL (Translation from the original Spanish) Damage prevention and safety instructions (See figure 4) A Warning! Observe limitations of use. The name plate voltage must be the same as the mains voltage. Connect the pump to the mains via an omnipolar switch with at least a 3 mm opening between contacts.
-
Page 4: General Information
Contents 2. HANDLING Safety precautions..........10 The pumps are supplied suitably packaged to prevent General information.........11 damage in transit. Before unpacking, check that the Handling ............11 packaging has not been damaged or deformed, Installation ............11 Lift and handle the product with care and with 3 .1. -
Page 5: Maintenance
All main components are material identified to allow selective disposal. This product or parts of it must be disposed of in an environmentally sound way, waste collection service. If this is not possible, contact the nearest ESPA service workshop. -
Page 6: Technical Data
8 . POSSIBLE FAULTS, CAUSES AND SOLUTIONS ) The pump does not deliver any flow. The pump does not start. ) The motor starts and stops automatically (klixon). ) Insufficient flow. The Pump is noisy. 1 2 3 4 5 POSSIBLE PROBLEM SOLUTIONS Incorrect voltage Verify the voltage specified on the nameplate and that of... - Page 7 Impeller Roue Laufrad Girante Mechanical seal Garniture mécanique Gleintringdichtung Tenuta meccanica Bearing Roulement Wälzager Cusinetto a rolamento Motor shaft Arbre de moteur Motorwelle Albero del motore Stator Stator Stator Estator Foot Pied Piede Capacitor Condensateur Kondensator Condensatore Pump casing Corps de pompe Pumpengehäuse Corpo della pompa Suction cover...
-
Page 8: Single Phase Supply
Fig.1 SINGLE PHASE SUPPLY 1. RED 2. WHITE 3. BLACK 4. CAPACITOR 5. LINE BLUE MOTOR RELAY GREEN THREE PHASE SUPPLY... - Page 9 Fig. 2...
- Page 10 Fig.3 DRAINAGE PLUG Fig. 4...
