KIOUR HI-CON1 Manual

TEMPERATURE CONTROLLER
DESCRIPTION
ΗΙ-CON1 is a temperature controller with one multi analog input and accepts signals from sensor type J (range -200÷+950 °C) or sensor type K (range 0÷1350 °C) or sensor
type PT100 two or three cables (range -200÷+850 °C) or 4÷20 mA or 0÷20 mA. The controller can be adjusted for PID control in heating systems, level supervision or dead
area control and it has two relay outputs.
SPECIFICATIONS
HI-CON1 has two rows of displays. The upper display shows the process value which controls (process value, PV), while the lower display shows constantly the Set Point (set
value, SV) or the parameters, when we are programming them.
The input signal is adjusted from the parameter SΕn and its value appears at the start-up of the device.
The controller analyses 0÷20 mA and 4÷20 mA signals to 2000 units. This scale can be compressed from parameters inH and inL with minimum difference 9 units.
HI-CON1 has two relays. The first relay operates in PID or ΟΝ-ΟFF mode, while the second one only in ON-OFF mode. Both relays can operate in cooling or heating mode and
can function with one or two Set Points. In case of one Set Point, the second Set Point is added to the first one. We can adjust the status of the relays (ON or OFF) when a J or
K sensor is cut or a PΤ100 sensor is fused. Also, zero adjustment of the sensor is available.
PROGRAMMING THE PARAMETERS
By pressing [ ] we enter or exit the parameter's menu.
The first parameter "SP1" is displayed and with the [
We access all parameters by setting parameter Cod to "22"
By pressing [SET] the value of the parameter is displayed and with the [
By pressing [ ]we confirm the new value and the name of the parameter is displayed.
By pressing [SET] we cancel the new value and the name of the parameter is displayed.
Instant adjusting of SET POINT: by pressing [SET] a dot is flashing on the SV display. With the arrows [
TECHNICAL SPECIFICATIONS
Power supply: 230VAC 50/60Hz
Maximum power consumption: 3W
It is recommended using a power supply safety fuse 0.5A (not included
Accuracy: 0.5% ± 1 digit
One multi analog input
Two relays 250VAC 10A resistive load, where one is a SPDT relay
Operating temperature: -15÷+55°C
Storage temperature: -20÷+80 °C
The device is mounted through panel hole 46x46mm
Connection with plug in terminal blocks

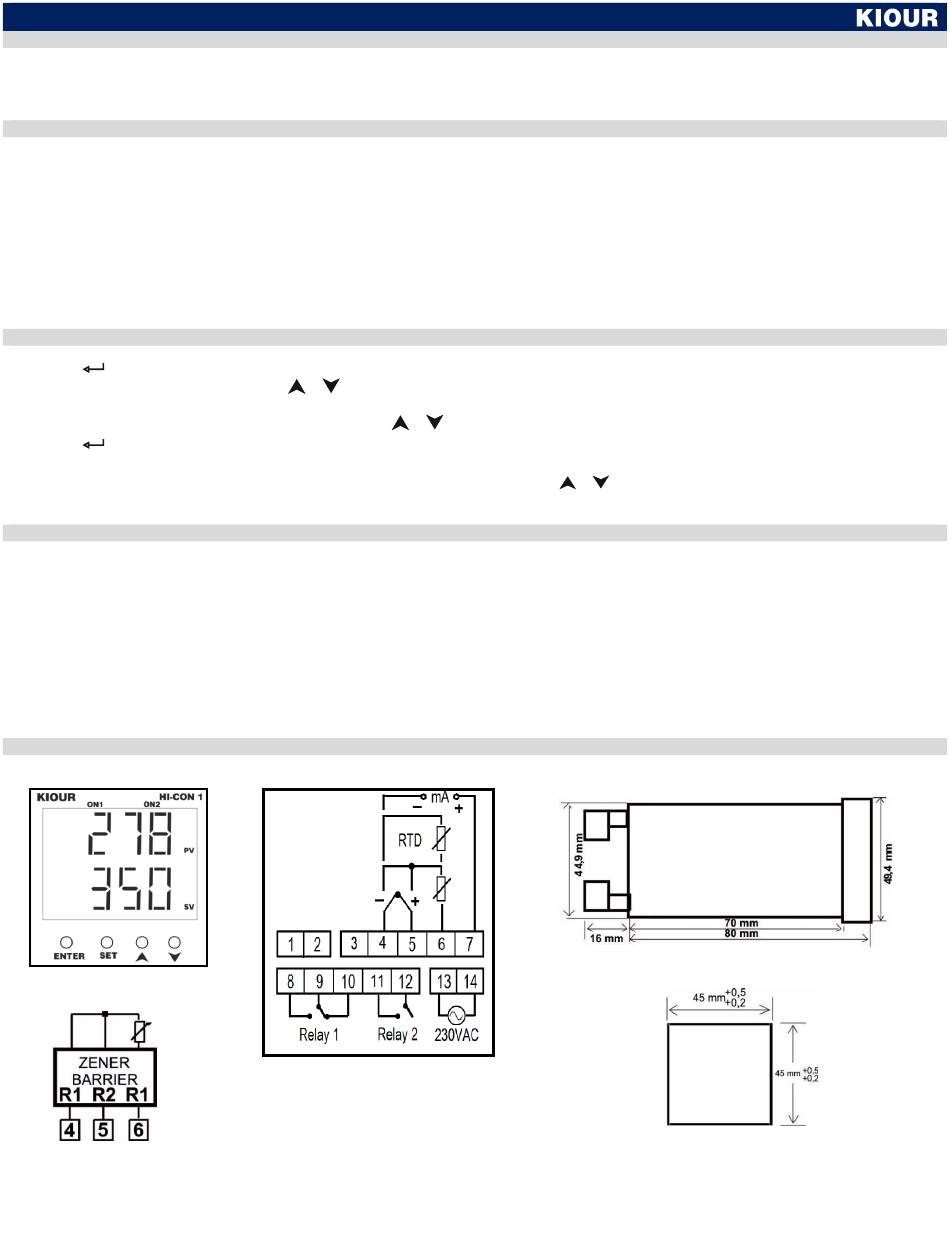

CONNECTIONS - DIMENSIONS
ΡΤ100: both R1 resistors must be equal, but also if
needed R1=R2
HI-CON1 230VAC
Model
], [ ] we scroll into the parameters based on the parameter's table below
], [ ] we adjust the value.
)
], [ ] we change its value.
