TEMPERATURE CONTROLLER Model MICF1_V4 24VAC/DC
ATTENTION
Read carefully these instructions before installing and using this device and keep them for future reference. Attention to installation and electrical wiring. Use this
device only as described in this document and never use itself as a security device. The device must be disposed of in accordance with local standards for the collection
of electrical and electronic equipment.
DESCRIPTION
MICF1 is a temperature controller for cooling and heating applications.
is controlled with an NTC / PTC sensor. It has 3 indication digits of temperature display with an accuracy of 0.5 ° C and 4 buttons. It has one relay where
heating mode) or ON-OFF state. The state of the relay (ON or OFF) can be adjusted in case of sensor's malfunction.
is restrained with plastic side brackets. Through the serial input it can be connected to a network either through Cloud IoT on the CORTEX platform, or through a local computer
in the CAMIN program for complete local recording and monitoring of the device.

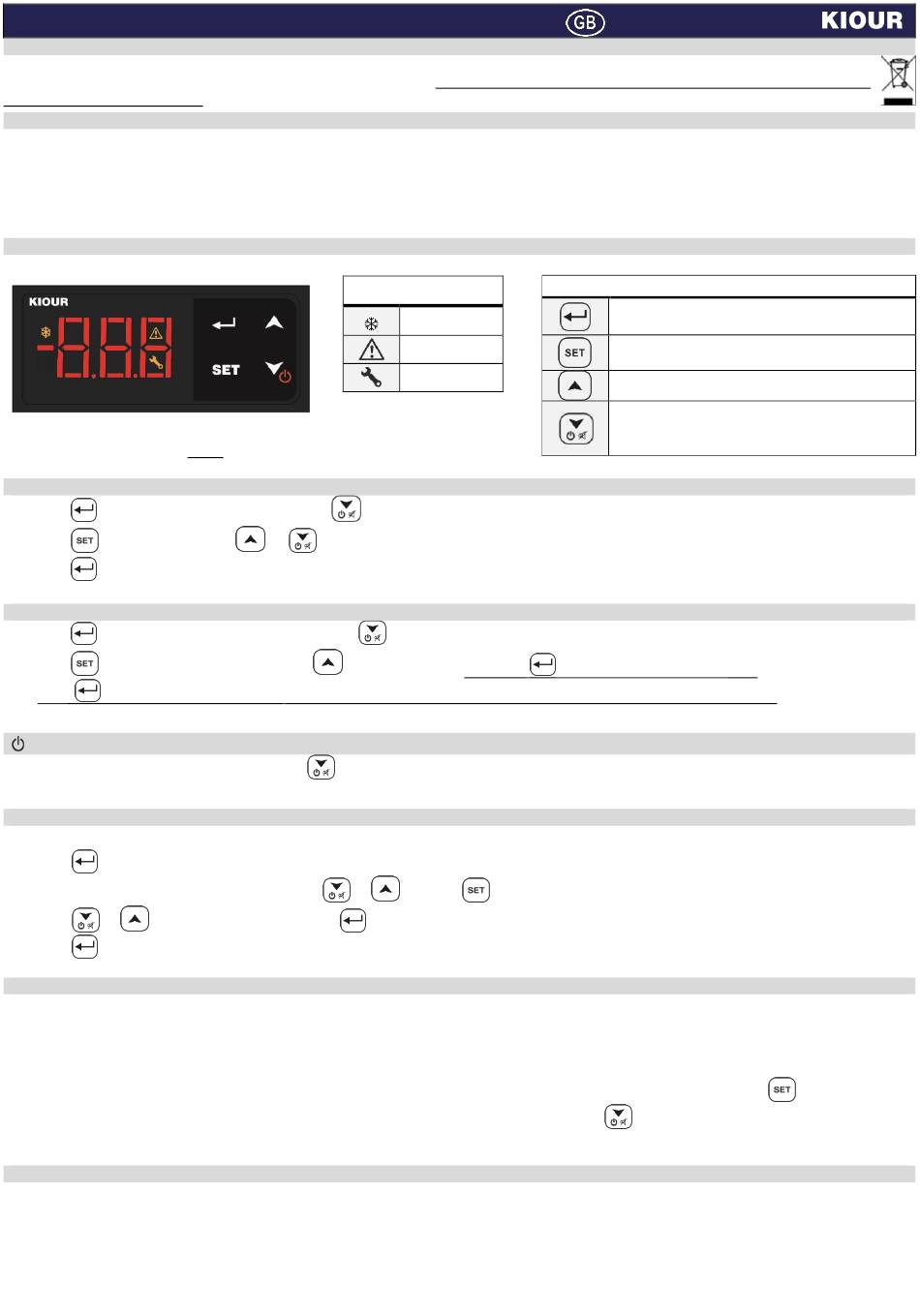

INDICATIONS - CONNECTIONS - DIMENSIONS
For more indications regarding the alarms please see the alarm's table at page 3.
ADJUSTING TEMPERATURE – SET POINT
1. Press to display the first parameter SP1 and with
2. Press to display its value. With
3. Press to save the new value. The device is working properly with the new adjustment.
INDUSTRIAL FACTORY SETTINGS
1. Press to display the parameter SP1. By pressing once
2. Press to display its value and press and press
3. Press again to exit the parameter menu, 'YES' is displayed on the screen. All appropriate factory settings are now stored in the device.
SWITCHING ON / OFF THE DEVICE
To activate or deactivate the device, press for 3 seconds
PROGRAMMING A PARAMETER
ATTENTION: to gain full access to the parameter's menu, the 3
1. Press to enter the parameter menu.
2. Choose the parameter you want to adjust by pressing
3. Press or to change its value and then press
4. Press to exit the parameter menu.
SAFETY THERMOSTAT FUNCTION
Via tdE parameter, we setup to normal or safety thermostat mode, as follows:
0 = Normal operation.
1 = Safety thermostat with automatic RESET.
2 = Safety thermostat with manual RESET.
In operation as a safety thermostat, the following parameters: 4, 9, 10, 11, 13, 14 are deactivated (according to the parameter table below).
The display shows the function of relay 1. An underscore in the number of hundreds flashes. The temperature is displayed by pressing the button
With mode set to manual RESET (tdE = 2), the symbol r is displayed in the tens digit. Τhe RESET is down arrow
The relay is ON above SP1. The symbol r flashes when the relay is OFF. Press RESET to stop flashing.
SERIAL INPUT
MICF1 connects via serial input to the cloud and the online CORTEX platform or to a local computer with the CAMIN program or to the memory key or to any Modbus network.
 Cloud and CORTEX platform: connection to the cloud and the CORTEX platform for monitoring - recording and managing the thermostat from your mobile, tablet or any
computer. Also, send email and Viber SMS in case of alarm.
CAMIN program: local connection and monitoring - recording and management of the thermostat through the CAMIN program installed on a local computer.

The device can also be used as a safety thermostat by adjusting a parameter.
Indications
relay 1 ON
alarm ΟΝ
malfunction ON
display the second parameter Cod.
or change the value.
the parameter Cod is displayed.
to enter the value 31. By pressing
.
parameter Cod must be adjusted to 22 (see parameter table next page)
rd
or and press
to store the new
The device is mounted on a panel hole 29x71mm
Keyboard
enter/exit the parameter's menu
store new parameter
display the parameter's value
display the temperature (only for a safety thermostat)
up arrow
down arrow
ON/OFF device (check below)
RESET (only for a safety thermostat)
to store the value to parameter
to display its value.
value.
.
Firmware V4.0.0
The room temperature
works in PID (only in
and it
Cod.
.
