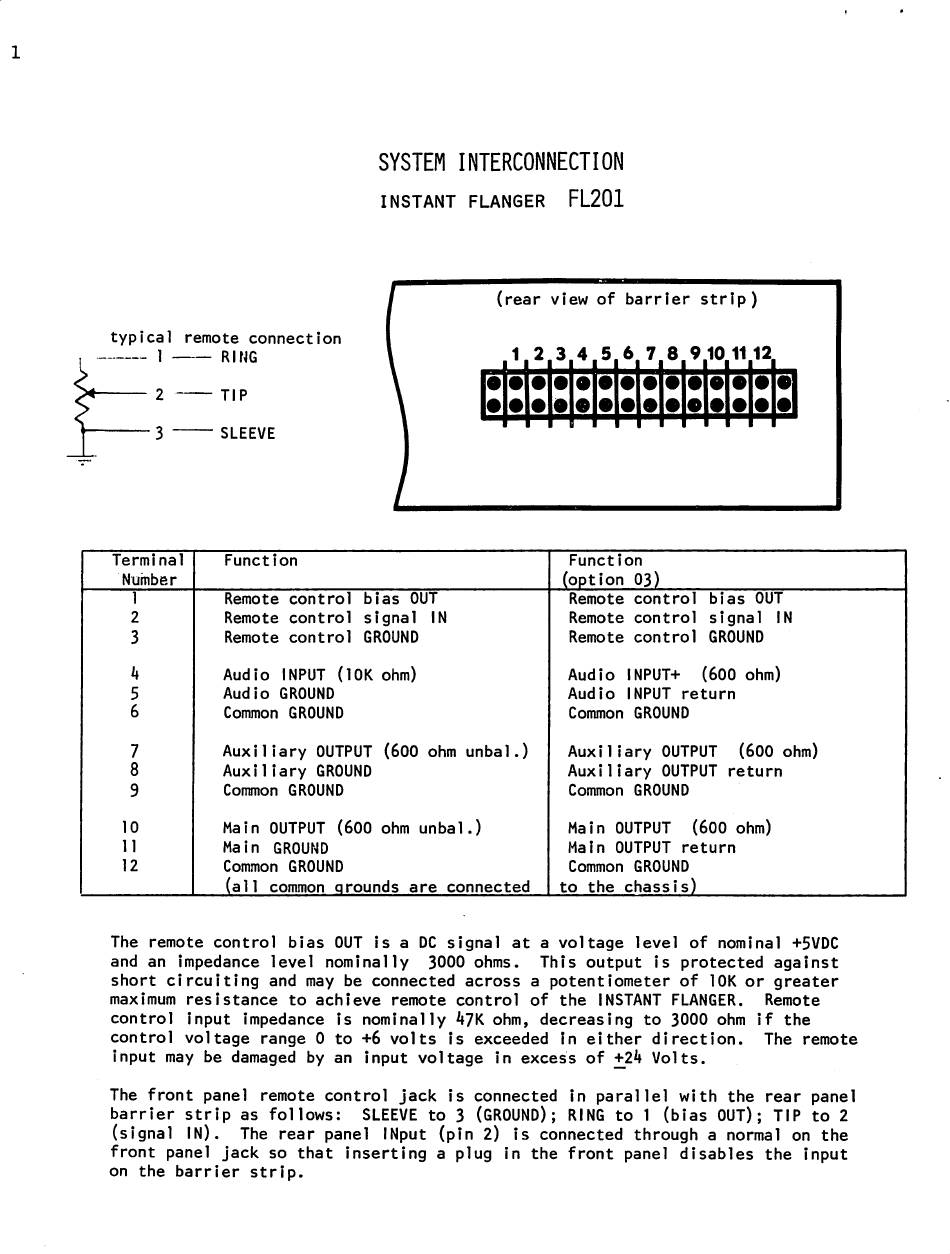

SYSTEM INTERCONNECTION
INSTANT FLANGER
FL201
typical remote connection
1
RING
2 -
3 -
TIP
SLEEVE
(rear view of barrier strip)
mm
Termi nal
Function
Function
Number
(option 03)
1
Remote control bias OUT
Remote control bias OUT
2
Remote control signal IN
Remote control signal IN
3
Remote control GROUND
Remote control GROUND
A
Audio INPUT (lOK ohm)
Audio INPUT+ (600 ohm)
5
Audio GROUND
Audio INPUT return
6
Common GROUND
Common GROUND
7
Auxiliary OUTPUT (600 ohm unbal.)
Auxil iary OUTPUT (600 ohm)
8
Auxiliary GROUND
Auxiliary OUTPUT return
9
Common GROUND
Common GROUND
10
Main OUTPUT (600 ohm unbal.)
Main OUTPUT (600 ohm)
11
Main GROUND
Main OUTPUT return
12
Common GROUND
Common GROUND
(all common grounds are connected
to the chassis)
The remote control bias OUT is a DC signal at a voltage level of nominal +5VDC
and an impedance level nominally
3000 ohms.
This output is protected against
short circuiting and may be connected across a potentiometer of lOK or greater
maximum resistance to achieve remote control of the INSTANT FLANGER.
Remote
control Input impedance is nominally A7K ohm, decreasing to 3000 ohm if the
control voltage range 0 to +6 volts is exceeded in either direction. The remote
input may be damaged by an input voltage in excess of +2A Volts.
The front panel remote control jack is connected in parallel with the rear panel
barrier strip as follows: SLEEVE to 3 (GROUND); RING to 1 (bias OUT); TIP to 2
(signal IN). The rear panel INput (pin 2) is connected through a normal on the
front panel jack so that inserting a plug in the front panel disables the input
on the barrier strip.
