Summary of Contents for Vermeiren Navix SU

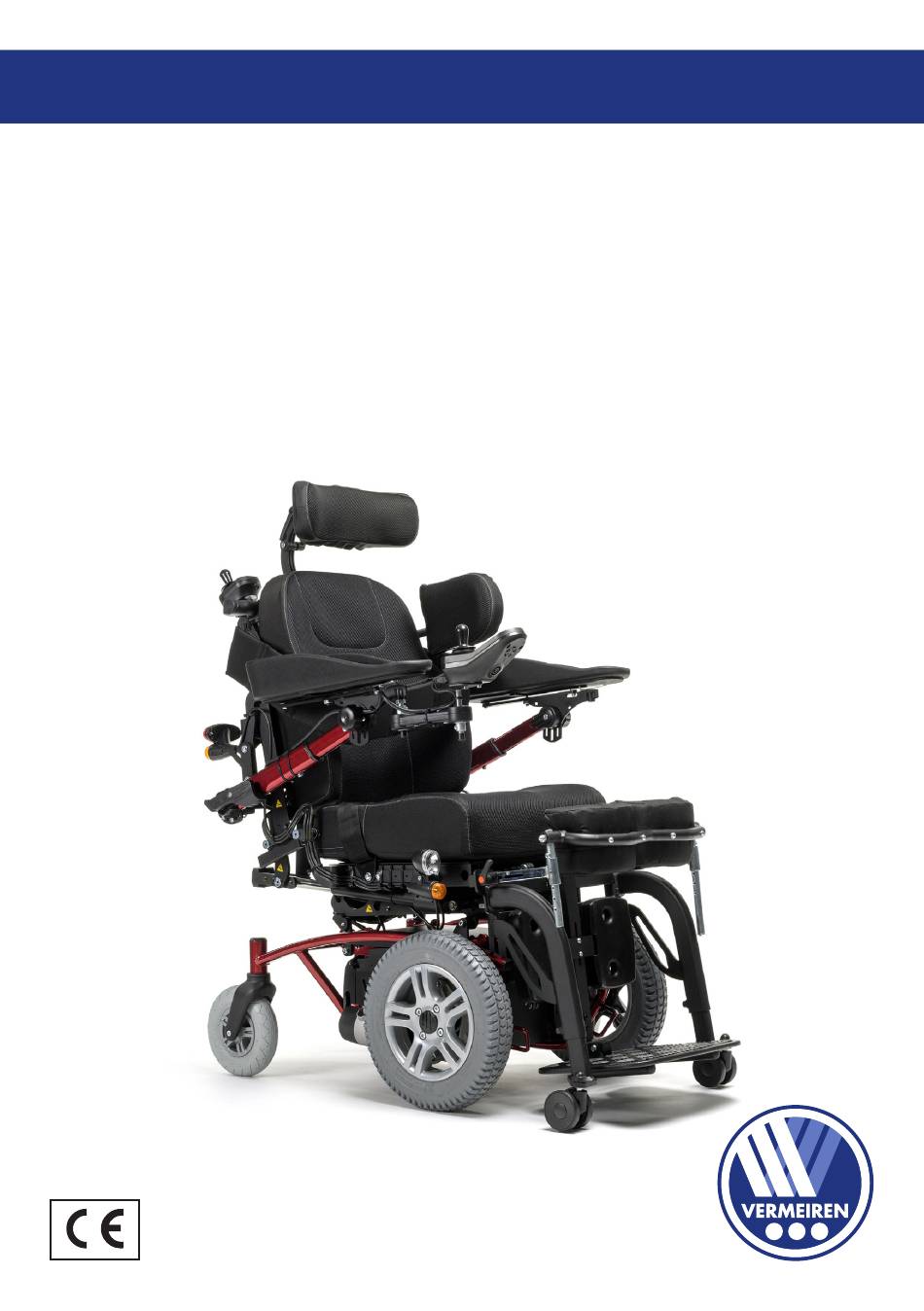

- Page 1 M A N U A L D E I N S T R U C C I O N E S I N S T R U K C J A O B S Ł U G I N Á V O D K O B S L U Z E Navix SU...
-
Page 3: Table Of Contents
Comfort adjustments 3.7. Standing / upright function 3.8. Battery status and charging Maintenance 4.1. Points of maintenance 4.2. Maintenance instructions 4.3. Troubleshooting 4.4. Expected lifespan 4.5. Reuse 4.6. End of use 4.7. Warranty Technical specifications User manual | 2024-08 Navix SU... -
Page 4: Preface
Vermeiren. Thank you for your trust in the products of Vermeiren. To support you on the use of this wheelchair and its operating functions, this manual is offered. Please read this manual carefully;... - Page 5 For user and specialist dealer User manuals of applied operating console and battery charger For user and specialist dealer Installation instructions For specialist dealer Service manual for wheelchairs For specialist dealer EC declaration of conformity User manual | 2024-08 Navix SU...
-

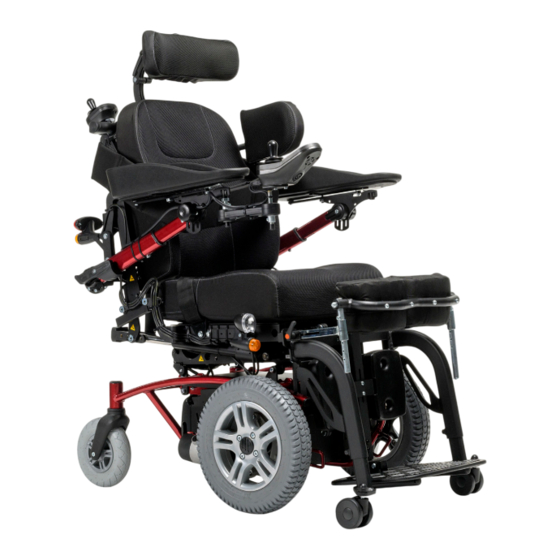

Page 6: Your Product
Arm pads Operating console Seat Safety belt Chest belt Leg rest Footplates 10. Driving wheels (front wheels) 1 1. Steering wheels (rear wheels) 12. Knee protector 13. Support wheels 14. Driving motors 15. Battery housing User manual | 2024-08 Navix SU... -
Page 7: Options
130kg. It is not designed for transportation of goods or objects, nor for any use other than previously described. • Only use accessories and spare parts approved by Vermeiren. • Please read all technical details and limits of your wheelchair in chapter 5.. -
Page 8: General Safety Instructions
• Alterations or substitutions should not be made to the wheelchair securement points or to structural and frame parts or components without consulting the wheelchair manufacturer. • Make sure that your hands, clothes, belts, buckles or jewellery don’t get caught by wheels or other moving parts during use. User manual | 2024-08 Navix SU... -
Page 9: Symbols On The Wheelchair
Maximum weight of the user in kg Maximum safe slope in ° (degrees). For indoor use only (battery charger) Maximum speed Type designation Catalogue number Serial number Medical device Manufacturer Date of manufacture Declaration of conformity Attention: important information User manual | 2024-08 Navix SU... -
Page 10: Transport
(as a whole) by aircraft. Consult your airline for the correct handling procedures before booking your flight. Before handing your wheelchair over to the airport personnel, disconnect the battery from the wheelchair, see installation manual. User manual | 2024-08 Navix SU... - Page 11 Fasten the wheelchair frame securely to the vehicle using the strap-tie-down system (see Figure 1). Place the wheelchair in drive mode (engaging the parking brakes) and check that the operating console is switched off. Figure 1 User manual | 2024-08 Navix SU...
-
Page 12: First Use And Storage
• Always unplug the battery charger from the wheelchair before starting to drive. Make sure that you are familiar with the operation of your wheelchair before using it in crowded and possibly dangerous places. First exercise at a spacious, open area with little bystanders. User manual | 2024-08 Navix SU... -
Page 13: Driving Outdoors
5.. • Even with your wheelchair lights on, it is not suitable to drive on public roads at poor visibility (darkness, mist, twilight). Make sure that you are well visible, also during daylight User manual | 2024-08 Navix SU... - Page 14 • Do not use your wheelchair on an escalator or stairs. • Only use ramps approved by Vermeiren and do not exceed their maximum load. • To safely overcome obstacles or slopes, put the wheelchair in its most upright sitting position.
-
Page 15: Operating Console
For your own safety, and to prevent that the wheelchair gets damaged, movements are monitored by the electronics. This may result in block of movement, speed decrease or complete stop. Consult the user manual of the operating console for more information. User manual | 2024-08 Navix SU... -
Page 16: Brake And Free-Wheel Lever
In this situation, the brakes start braking if: • the wheelchair is OFF; • the wheelchair is ON and the joystick is released. Releasing the joystick makes the wheelchair stop gently and activates the brakes. User manual | 2024-08 Navix SU... -
Page 17: Transfer To/From The Wheelchair
Fold the footplates upwards to prevent standing on them. If necessary, turn one armrest back/up to make room, see § 3.6.3.. Transfer to/from the wheelchair using the strength of your arms or with the help of attendant(s) or lifting equipment. User manual | 2024-08 Navix SU... -
Page 18: Comfort Adjustments
• Make sure that your fingers, clothes, buckles don’t get trapped during adjustment. 3.6.1. Safety belt Fasten the safety belt by clicking the buckle into the receiver. If necessary, adjust the length of the straps. To open the seat belt, press the red button. User manual | 2024-08 Navix SU... - Page 19 The arm rest is unlocked (in bottom position). Turn the armrest up/backwards to its end position. Pull lever up to close the toothed clamp. The armrest is locked in end position. User manual | 2024-08 Navix SU...
- Page 20 Pull/push the arm pad lightly to adjust the height. Hold the arm pad at the desired angle. Turn the star knob clockwise until it is finger-tight. Repeat this for the second arm pad. Make sure that both arm pads are firmly secured. User manual | 2024-08 Navix SU...
-
Page 21: Chest Belt
Loosen the 4 star knobs (20). Slide the backrest up/down until the desired position. Retighten the star knobs. Make sure that the backrest is well secured. Optional side pelots are not compatible with the lower position of the backrest. User manual | 2024-08 Navix SU... -
Page 22: Standing / Upright Function
• It is not possible to raise the leg rests when the seat has been raised (in preparation for the standing/upright position). Follow this sequence when using the standing/upright function: User manual | 2024-08 Navix SU... -
Page 23: Battery Status And Charging
• Protect the battery and battery charger against flames, high and low temperatures (see chapter 5.), moisture, sunshine, severe shocks (for example dropping). Do NOT use the battery if this has been the case. User manual | 2024-08 Navix SU... - Page 24 For all information on battery status indication, please read the manual of the operating console. It is recommended to unplug the battery charger from the mains when not in use. This is to prevent unnecessary energy consumption. User manual | 2024-08 Navix SU...
-
Page 25: Maintenance
Remove the battery charger from the socket, let it cool down and store it in the charger pocket. 4. Maintenance Regular care ensures that your wheelchair is preserved in a perfectly functional condition. For the maintenance manual, refer to the Vermeiren website: www.vermeiren.com. 4.1. Points of maintenance CAUTION Risk of injuries and damage •... -
Page 26: Before Each Use
If your wheelchair is stored for a longer period, you still need to charge the batteries every month. It is also possible to keep the battery charger connected to the battery and the mains during this period. For more information, see § 3.8.. User manual | 2024-08 Navix SU... -
Page 27: Maintenance Instructions
Keep the ventilation openings of the battery charger clean and free of accumulated dust. Blow away the dust and clean the battery charger enclosure with a slightly moistened cloth, if required. User manual | 2024-08 Navix SU... -
Page 28: Troubleshooting
• Uneven tread wear on one of the tyres; • Jerky movements; • Wheelchair deflects to one side; • Damaged or broken wheel assemblies. • Wheelchair does not switch on (blown fuse); • Wheelchair is powered but does not move, see 4.3.1.. User manual | 2024-08 Navix SU... -
Page 29: Overload Protection
The best way to do so, is to disassemble the wheelchair to facilitate the transport of recyclable parts. 4.7. Warranty The warranty on this product is subject to the general terms and conditions of each country. User manual | 2024-08 Navix SU... -
Page 30: Technical Specifications
(driving up/ down), type of surface and battery status. Brand Vermeiren Product group Powered wheelchair, Class B Type Navix SU Description Dimensions Maximum user weight 130 kg Overall length with footrest 1090 mm... - Page 31 Brand Vermeiren Product group Powered wheelchair, Class B Type Navix SU Description Dimensions Leg to seat surface angle 0° - 96,5° Footplate angle 90° Height leg rests to top of seat (measured in 155 - 210 mm the middle of the cushion)
- Page 32 Brand Vermeiren Product group Powered wheelchair, Class B Type Navix SU Description Dimensions We reserve the right to introduce technical changes. Measurement tolerance +- 15 mm / 1,5 kg / 1,5° * The theoretical driving distance will be reduced if the wheelchair is used frequently on slopes, rough ground or to climb curbs.
- Page 33 By (stamp): Kind of work: I / S / R / D Kind of work: I / S / R / D Kind of work: I / S / R / D Date: Date: Date: User manual | 2024-08 Navix SU...
- Page 34 User manual | 2024-08 Navix SU...
- Page 35 User manual | 2024-08 Navix SU...
- Page 36 VERMEIREN GROUP Vermeirenplein 1/15 2920 Kalmthout Belgium www.vermeiren.com Version: F, 2024-08 Basic UDI-DI: 5415174122127NavixSULG All rights reserved, including translation.
