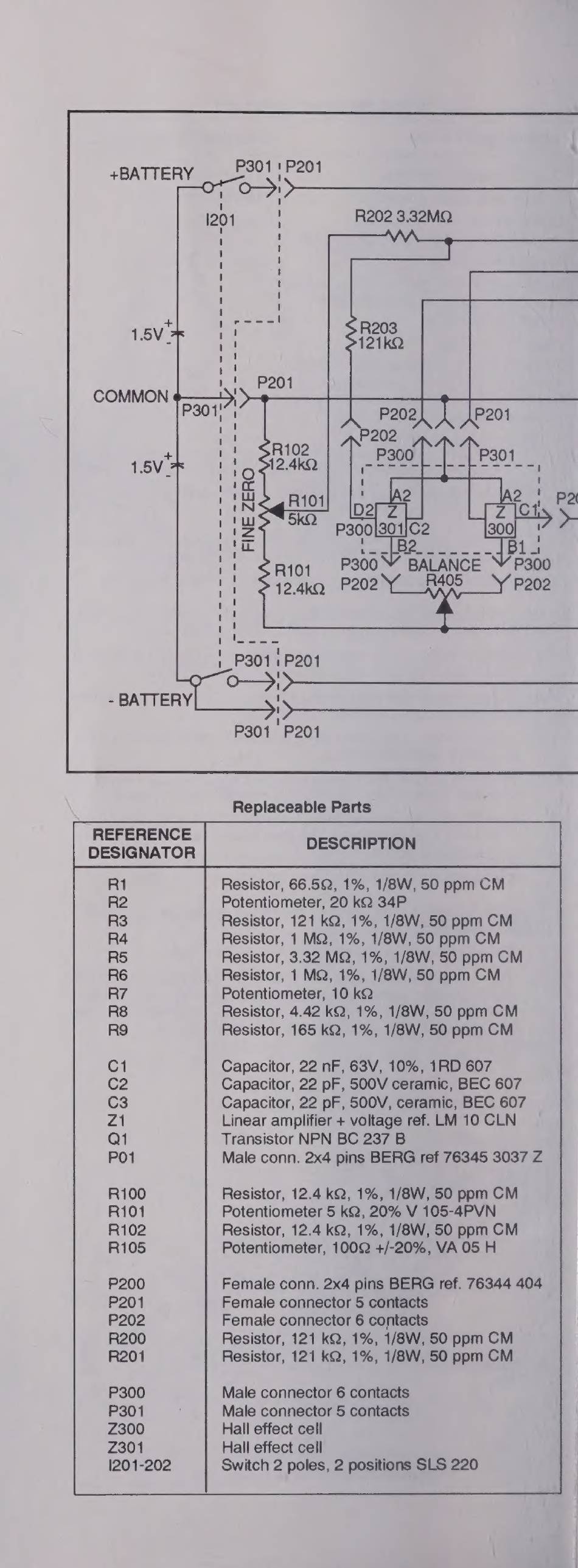

Fluke 80i-1010 Instruction Sheet page 10

+BATTERY P301 :P201
R202 3.32MQ
D
--------------6--
—
$
1.5V_
P301 ı P201
I
- BATTERY \
Li
P301 P201
Replaceable Parts
REFERENCE
DESIGNATOR
DESCRIPTION
R1 Resistor, 66.592, 1%, 1/8W, 50 ppm CM
R2 Potentiometer, 20 kn 34P
R3 Resistor, 121 kR, 1%, 1/8W, 50 ppm CM
R4 Resistor, 1 MQ, 1%, 1/8W, 50 ppm CM
R5 Resistor, 3.32 MQ, 1%, 1/8W, 50 ppm CM
R6 Resistor, 1 MQ, 1%, 1/8W, 50 ppm CM
R7 Potentiometer, 10 kQ
R8 Resistor, 4.42 kQ, 1%, 1/8W, 50 ppm CM
R9 Resistor, 165 kQ, 1%, 1/8W, 50 ppm CM
C1 Capacitor, 22 nF, 63V, 10%, 1RD 607
C2 Capacitor, 22 pF, 500V ceramic, BEC 607
C3 Capacitor, 22 pF, 500V, ceramic, BEC 607
Z1 Linear amplifier + voltage ref. LM 10 CLN
Q1 Transistor NPN BC 237 B
PO1 Male conn. 2x4 pins BERG ref 76345 3037 Z
R100 Resistor, 12.4 kQ, 1%, 1/8W, 50 ppm CM
R101 Potentiometer 5 kQ, 20% V 105-4PVN
R102 Resistor, 12.4 kQ, 1%, 1/8W, 50 ppm CM
R105 Potentiometer, 100Q +/-20%, VA 05 H
P200 Female conn. 2x4 pins BERG ref. 76344 404
P201 Female connector 5 contacts
P202 Female connector 6 contacts
R200 Resistor, 121 kQ, 1%, 1/8W, 50 ppm CM
R201 Resistor, 121 kQ, 1%, 1/8W, 50 ppm CM
P300 Male connector 6 contacts
P301 Male connector 5 contacts
Z300 Hall effect cell
Z301 Hall effect cell
1201-202 Switch 2 poles, 2 positions SLS 220
