Introduction

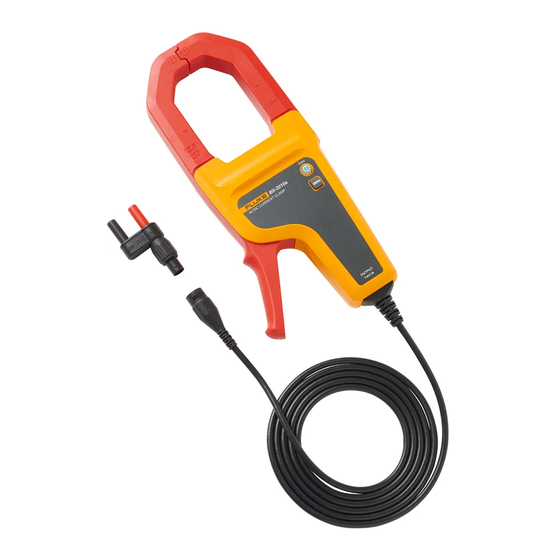

Use the Fluke 80i-2010s AC/DC Current Clamp (the Clamp or Product)
with oscilloscopes and digital multimeters and power analyzers for
accurate non-intrusive measurements of ac, dc, and complex waveform
currents.
Using advanced Hall Effect technology, the Clamp can accurately
measure currents up to 2000 A RMS. These features make it a powerful
tool for use in inverters, switch mode power supplies, industrial
controllers, automotive diagnostics, and other applications requiring
current measurements and/or waveform analysis.
Table
1
shows the Clamp.
How to Contact Fluke
To contact Fluke, call one of the following telephone numbers:
•
Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
•
Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
•
Canada: 1-800-36-FLUKE (1-800-363-5853)
•
Europe: +31 402-675-200
•
Japan: +81-3-6714-3114
•
Singapore: +65-6799-5566
•
China: +86-400-921-0835
•
Brazil: +55-11-3530-8901
•
Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com
To view, print, or download the latest manual supplement, visit
http://us.fluke.com/usen/support/manuals.
Go to
www.fluke.com
PN 5130594 June 2019
©2019 Fluke Corporation.
All rights reserved. Specifications are subject to change without notification.
All product names are trademarks of their respective companies.
AC/DC Current Clamp
to register your product and find more information.
80i-2010s
Instructions
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Fluke 80i-2010s
Summary of Contents for Fluke 80i-2010s
- Page 1 80i-2010s AC/DC Current Clamp Instructions Introduction Use the Fluke 80i-2010s AC/DC Current Clamp (the Clamp or Product) with oscilloscopes and digital multimeters and power analyzers for accurate non-intrusive measurements of ac, dc, and complex waveform currents. Using advanced Hall Effect technology, the Clamp can accurately measure currents up to 2000 A RMS.
- Page 2 Table 1. 80i-2010s AC/DC Current Clamp Item Description Item Description Tactile Barrier Jaws Battery Cover Zero Adjust Fastener ON/OFF Battery Cover Safety A Warning identifies conditions and procedures that are dangerous to the user. XW Warning To prevent possible electrical shock, fire, or personal injury: •...
- Page 3 • Use Product-approved measurement category (CAT), voltage, and amperage rated accessories (probes, test leads, and adapters) for all measurements. • Do not use test leads if they are damaged. Examine the test leads for damaged insulation and measure a known voltage.
- Page 4 Table 2. Symbols (Continued) Symbol Definition Conforms to European Union directives. Conforms to relevant Australian Safety and EMC standards. Conforms to relevant South Korean EMC Standards. Measurement Category III is applicable to test and measuring circuits connected to the distribution part of the building’s low-voltage MAINS installation.
- Page 5 Zero Adjustment The output zero offset voltage of the Clamp may change due to thermal shifts and other environmental conditions. To adjust the output voltage to zero: Make sure that the Clamp is away from the current carrying conductor. Push Zero Adjust and wait until the power LED (+) stops flashing. Note The Clamp cannot do the zero adjustment if the output voltage is ±25 mV.
- Page 6 Locate the battery cover on the handle and unlock the fastener. Remove the battery door and install the new batteries (IEC LR6). Replace the battery cover, and lock the fastener. Note Replace the battery with the specified type only. Replacing with the wrong battery type will invalidate the warranty.
- Page 7 Electromagnetic Compatibility (EMC) International......IEC 61326-1: Portable Electromagnetic Environment IEC 61326-2-2, CISPR 11: Group 1, Class A Group 1: Equipment has intentionally generated and/or use conductively coupled radio-frequency energy which is necessary for the internal functioning of the equipment itself. Class A: Equipment is suitable for use in all establishments other than domestic and those directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.
- Page 8 LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
