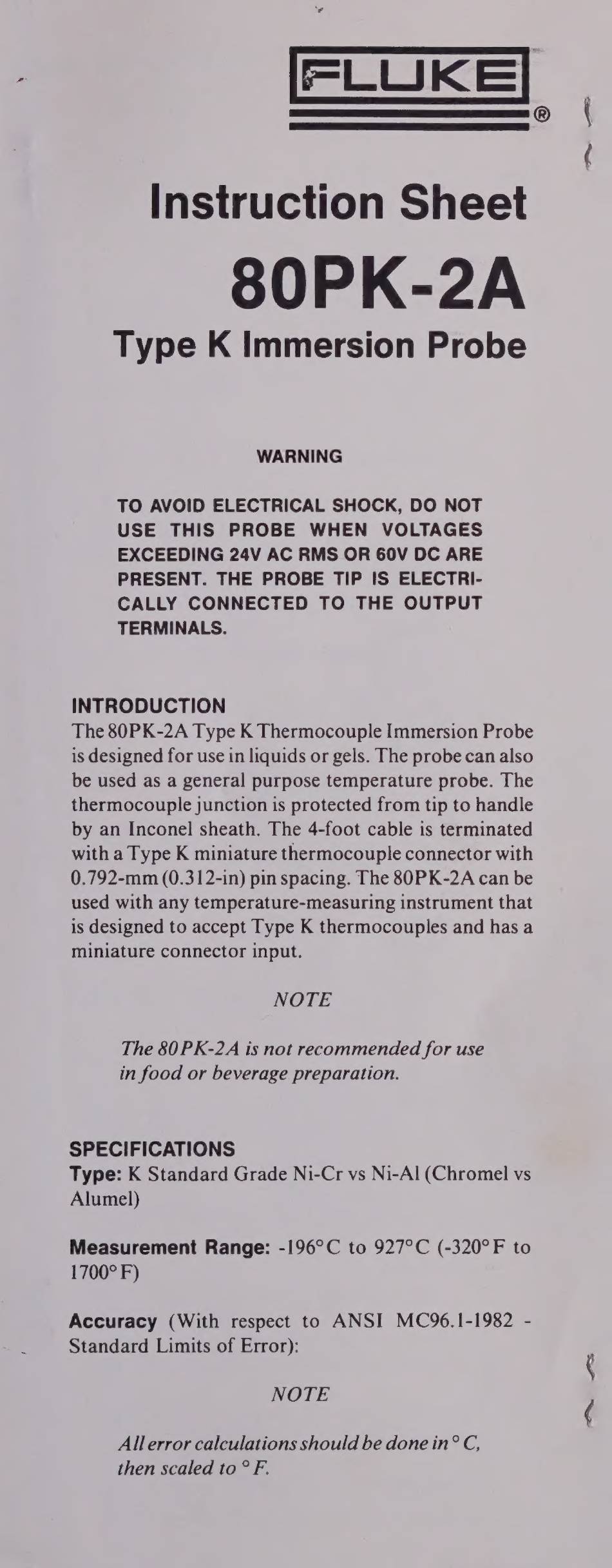

Fluke 80PK-2A Instruction Sheet

®
Instruction Sheet
SOPK-2A
Type K Immersion Probe
WARNING
TO AVOID ELECTRICAL SHOCK, DO NOT
USE THIS PROBE WHEN VOLTAGES
EXCEEDING 24V AC RMS OR 60V DC ARE
PRESENT. THE PROBE TIP IS ELECTRI-
CALLY CONNECTED TO THE OUTPUT
TERMINALS.
INTRODUCTION
The 80PK-2A Type K Thermocouple Immersion Probe
is designed for use in liquids or gels. The probe can also
be used as a general purpose temperature probe. The
thermocouple junction is protected from tip to handle
by an Inconel sheath. The 4-foot cable is terminated
with a Type K miniature thermocouple connector with
0.792-mm (0.312-in) pin spacing. The 80PK-2A can be
used with any temperature-measuring instrument that
is designed to accept Type K thermocouples and has a
miniature connector input.
NOTE
The 80 PK-2A is not recommended for use
in food or beverage preparation.
SPECIFICATIONS
Type: K Standard Grade Ni-Cr vs Ni-Al (Chromel vs
Alumel)
Measurement Range: -196°C to 927°C (-320°F to
1700°F)
Accuracy (With respect to ANSI MC96.1-1982 -
Standard Limits of Error):
NOTE
All error calculations should be done in? C,
then scaled to ° F.
