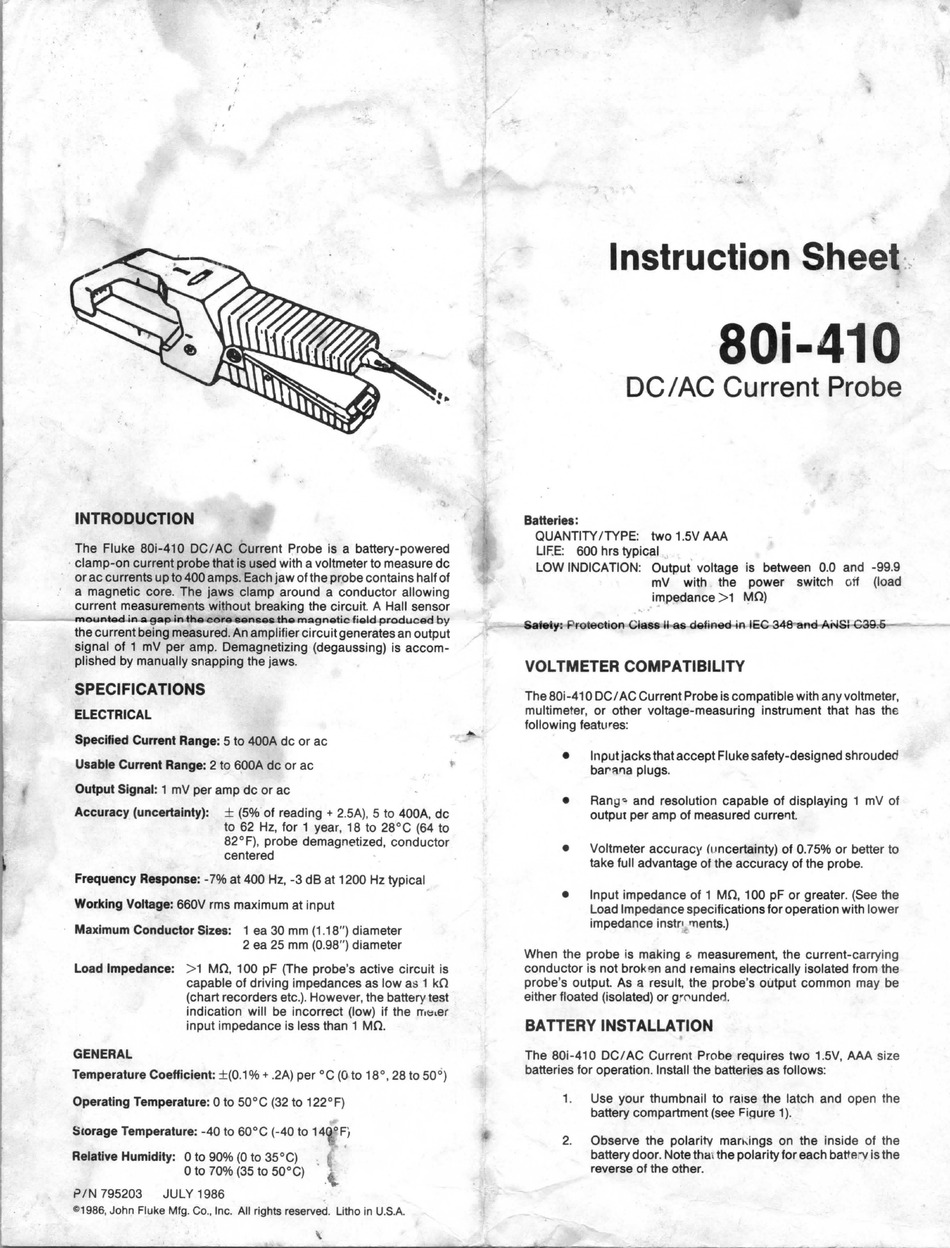

Fluke 80i-410 Instruction Sheet

-
.
I .
,
..
INTRODUCTION
The Fluke 80i-410 DC/AC Current Probe is a battery-powered
· clamp-on current probe that is used with a voltmeter to measure de
or ac currents up to 400 amps. Each jaw of the probe contains half of
a magnetic core. The jaws clamp around a conductor allowing
current measurements without breaking the circuit. A Hall sensor
t- ---=---11~.1nt.tedao.uiinu:c:iµg::t.taat:p~in--tbe ~n~_nu:ignoticfialdproducad by
the current being measured. An amplifier circuit generates an output
signal of 1 mV per amp. Demagnetizing (degaussing) is accom-
plished by manually snapping the jaws.
SPECIFICATIONS
ELECTRICAL
Specified Current Range: 5 to 400A de or ac
Usable Current Range: 2 to 600A de or ac
Output Signal: 1 mV per amp de or ac
Accuracy (uncertainty): ± (5%. of reading
+
2.5A), 5 to 400A, de
to 62 Hz, for 1 year, 18 to 28 ° C (64 to
82°F), probe demagnetized, conductor
centered
Frequency Response: -7% at 400 Hz, -3 dB at 1200 Hz typical
Working Voltage: 660V rms maximum at input
Maximum Conductor Sizes: 1 ea 30 mm (1 .18") diameter
2 ea 25 mm (0.98") diameter
Load Impedance: > 1 MO, 100 pf (The probe's active circuit is
capable of driving impedances as low as 1 kO
(chart recorders etc.). However, the battery test
indication will be incorrect (low) if the rr.r : her
input impedance is less than 1 MO.
GENERAL
Temperature Coefficient: ± (0.1 o/o + .2A) per °C (0 to 18°, 28 to 50 °)
Operating Temperature: 0 to 50°C (32 to 122°F)
S'orage Temperature: -40 to 60°C (-40 to 14 .°F/
Relative Humidity: 0 to 90% (0 to 35 ° C)
0 to 70% (35 to 50°C)
PIN 795203 JULY 1986
®1986, John Fluke Mfg. Co .. Inc. All rights reserved. Litho in U.S.A.
Instruction Sheet :. ·
SOi-410
DC/AC Current Probe
Batteries:
QUANTITY /TYPE: two 1.5V AAA
LIF.E: 600 hrs typical .,
LOW INDICATION: Output voltage is between 0.0 and -99.9
mV with the power switch off (load
impedance >1 MO)
VOLTMETER COMPATIBILITY
The 80i-41 O DC/ AC Current Probe is compatible with any voltmeter,
multimeter, or other voltage-measuring instrument that has the
following features:
• Input jacks that accept Fluke safety-designed shrouded
bararia plugs.
• Rang "' and resolution capable of displaying 1 mV of
output per amp of measured curre11t.
• Voltmeter accuracy (uncertainty) of 0.75% or better to
take full advantage of the accuracy of the probe.
• Input impedance of 1 MO, 100 pF or greater. (See the
Load Impedance specifications for operation with lower
impedance instn 1T1ents.)
When the probe is making
c.
measurement, the current-carrying
conductor is not brokan and remains electrically isolated from the
probe's output. As a result, the probe's output common may be
either floated (isolated) or grC'underi.
BATTERY INSTALLATION
The 80i-410 DC/AC Current Probe requires two 1.5V, AAA size
batteries for operation. Install the batteries as follows:
1. Use your thumbnail to raise the latch and open the
battery compartment (see FiQure 1).
2. Observe the polarity man-:ings on the inside of the
battery door. Note that the polarity for each batterv is the
reverse of the other.
