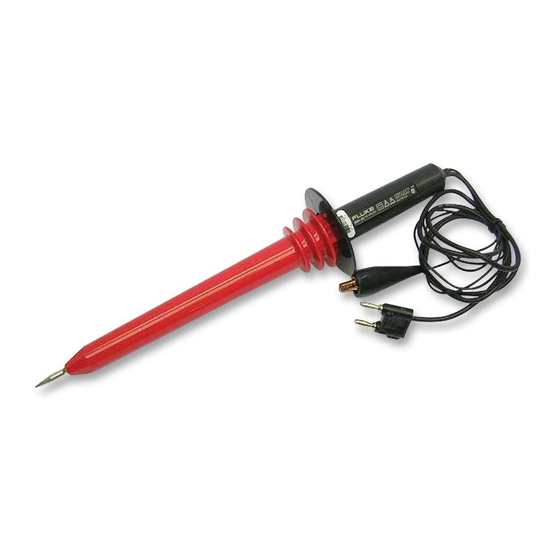

The 80K-40/80K-6 High Voltage Probe (the probe or Product) is a high
voltage accessory probe that extends the voltage measurements of an
ac/dc voltmeter:
•
80K-40 up to 40 000 volts peak ac or dc
•
80K-6 up to 6000 volts peak ac or dc
The probe takes measurements on energy-limited circuits within the
equipment. Examples include the high voltage in televisions or photo copy
machines. A 1000:1 voltage divider provides the probes with a high input
impedance that minimizes circuit loading and optimizes the measurement
accuracy. The molded plastic body houses the divider and protects the
user from hazardous voltage.
How to Contact Fluke
To contact Fluke, call one of the following telephone numbers:
•
Technical Support USA: 1-800-44-FLUKE (1-800-443-5853)
•
Calibration/Repair USA: 1-888-99-FLUKE (1-888-993-5853)
•
Canada: 1-800-36-FLUKE (1-800-363-5853)
•
Europe: +31 402-675-200
•
Japan: +81-3-6714-3114
•
Singapore: +65-6799-5566
•
China: +86-400-921-0835
•
Anywhere in the world: +1-425-446-5500
Or, visit Fluke's website at www.fluke.com.
To register your product, visit http://register.fluke.com.
To view, print, or download the latest manual supplement, visit
http://us.fluke.com/usen/support/manuals.
PN 481978 January 1978 Rev. 10, 7/17
©1978-2017 Fluke Corporation. All rights reserved.
Specifications are subject to change without notification.
All product names are trademarks of their respective companies.
80K-40/80K-6
High Voltage Probe
Instructions
Advertisement
Table of Contents
Related Manuals for Fluke 80K-40
Summary of Contents for Fluke 80K-40
-
Page 1: How To Contact Fluke
80K-40/80K-6 High Voltage Probe Instructions The 80K-40/80K-6 High Voltage Probe (the probe or Product) is a high voltage accessory probe that extends the voltage measurements of an ac/dc voltmeter: • 80K-40 up to 40 000 volts peak ac or dc •... -
Page 2: Safety Information
Safety Information A Warning identifies conditions and procedures that are dangerous to the user. A Caution identifies conditions and procedures that can cause damage to the Product or the equipment under test. XW Warning To prevent possible electrical shock, fire, or personal injury: •... - Page 3 Operation 87 V TRUE RMS MULTIMETER ° ° MIN MAX RANGE AutoHOLD Peak MIN MAX Hz % 4½ DIGITS 1 Second 400mA FUSED 10A MAX FUSED Probe tip Probe body Multimeter or voltmeter Plug GND tab ...
-
Page 4: Theory Of Operation
0.75" [19 mm]) with standard plugs (0.160" [4 mm]). The probe is electrically compatible with any ac or dc voltmeter or multimeter that has an input impedance of: 10 MΩ ±1 % for 80K-40 • 10 MΩ ±10 % for 80K-6 •... -
Page 5: Specifications
A meter reading of 0.526 volts represents an input of: 0.526 x 1.901 = 1 or 1 kV Circuit Loading The probe represents a load to the circuit: 1000 MΩ , or 1 μA/1 kV, for 80K-40 • 75 MΩ, or 13 μA/1 kV, for 80K-6 •... - Page 6 136 g (4.8 oz) LIMITED WARRANTY AND LIMITATION OF LIABILITY This Fluke product will be free from defects in material and workmanship for one year from the date of purchase. This warranty does not cover fuses, disposable batteries, or damage from accident, neglect, misuse, alteration, contamination, or abnormal conditions of operation or handling.
