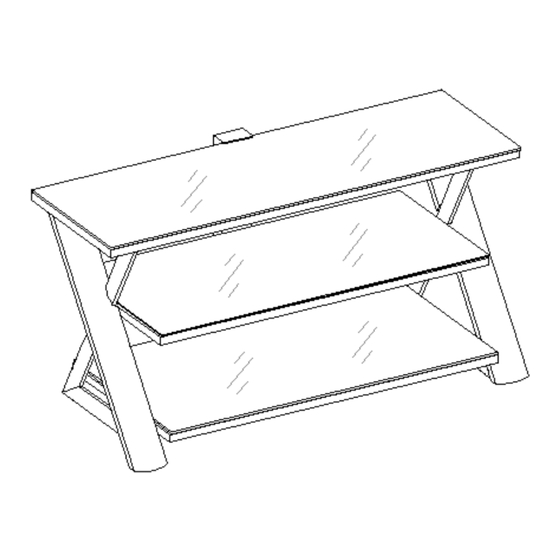

44" 3-in-1 Console (XL-2)
ADULT ASSEMBLY REQUIRED
If you have any questions regarding assembly or if you are missing parts, do not return this
item to the Retailer Store. Please call our toll free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
1-866-942-5362
ONLINE: www.whalenfurniture.com
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Whalen Furniture Mfg. Inc.
8:30 a.m. - 4:30 p.m. PST, Monday - Friday
Video Instruction Guides
Go to http://whalen.showuhow.com to view step-by-step instructional
videos for assembling and installing your product. Enter the following
product number on the ShowUhow homepage.
XL-2
EMAIL: parts@whalenfurniture.com
Factory No. 33-10944
MODEL # XL-2
LOT NUMBER:
DATE PURCHASED:
/
/
Page 1
Advertisement
Related Manuals for Whalen Furniture XL-2
Summary of Contents for Whalen Furniture XL-2
- Page 1 MODEL # XL-2 LOT NUMBER: DATE PURCHASED: 44” 3-in-1 Console (XL-2) ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if you are missing parts, do not return this item to the Retailer Store. Please call our toll free customer service number and have your...
-
Page 2: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to 1 year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture. - Page 3 Model # XL-2 Parts and Hardware List for Table-top Please read completely through the instructions and verify that all parts listed are present before beginning assembly. A-Top Shelf Frame (1) B- Middle Shelf Frame (1) E- Left “L” Shape Leg (1)
- Page 4 Model # XL-2 Parts and Hardware List for Universal Wall Mount only Please read completely through the instructions and verify that all parts listed are present before beginning assembly. M- XYZ Mounting Frame (1) N- Monitor Bracket (2) O- Safety Bar (1) (10) - 2 1/2”...
- Page 5 Model # XL-2 Assembly Instructions for Table-top Note: Please do not fully tighten all bolts until you finish assembling all parts. Once assembled, go back and fully tighten all bolts. This will make it easier during assembly of unit. 1. Unpack the unit and confirm that you have all the hardware and required parts listed.
- Page 6 Model # XL-2 Assembly Instructions for Table-top 4. Locate Short Spine (D1) on a scratch free surface with 2 round holes facing up as shown in detail #2. 5. Align the holes on back rail of 3 Shelf Frames (A, B & C) with the sockets on the Short Spine (D1).
- Page 7 Model # XL-2 Assembly Instructions for Table-top 6. Stand the unit upright. 7. Align and attach Left Leg Assembly to the Top Shelf Frame (A) using two 1” Bolts (13) with Zinc Washers (6 & 8) through the pre-drilled holes on inner side rail into the top of both Legs.
- Page 8 Model # XL-2 Assembly Instructions for Table-top 10. Go back and tighten all bolts with Allen Wrench provided. 11. In case of uneven floor, Floor Levelers are provided at the bottom of both Front Legs (F & H). Simply tilt the unit back and raise or lower floor leveler by hand to correct tilting as shown in detail #4.
- Page 9 Model # XL-2 Assembly Instructions for Table-top 12. Attach 2 Cable Controls (12) onto the backside of Spine (D1) with the 3/4” Bolts (2). Tighten the bolts with Allen Wrench provided. See detail #5. 13. The Cable Controls (12) enable you to shorten, separate and route both single and bundled cables.
- Page 10 Model # XL-2 Assembly Instructions for Table-top 14. Put Suction Cups (1) firmly into the top holes and corner plates on 3 Shelf Frames (A, B & C) as shown in detail #6. 15. Place Top Glass (I) and Glass Shelves (J & K) in place as shown in detail #6. Make sure the glass is properly centered and the black side of glass is down.
- Page 11 Model # XL-2 Assembly Instructions for Table-top 16. Position the assembled Table-top in your desired location against the wall. Now follow the instructions printed on the plastic bag in order to mount the Tipping Restraint Hardware Kit to the Spine properly. As shown in detail #7.
- Page 12 Model # XL-2 Assembly Instructions for Universal Wall Mount Installing XYZ Mounting Frame onto WOODEN WALL 18. The XYZ Mounting Frame (M) must be mounted to two Wood Studs at least 12” apart, using a high quality Stud Finder to locate the two adjacent studs. After you have located the studs, verify with a nail for added security.
- Page 13 Model # XL-2 Assembly Instruction for installing XYZ Mounting Frame onto BRICK, SOLID CONCRETE OR CONCRETE BLOCK 21. Use the XYZ Mounting Frame (M) as a template, mark six holes location on the wall, three in the top row and three in the bottom row of slots. Make sure that the holes are level and there is at least 6”...
- Page 14 Model # XL-2 Mounting Monitor Bracket to a television with a flat back Note: For televisions with a curved back or recessed back proceed directly to step #27. 24. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV.
- Page 15 Model # XL-2 Mounting Monitor Bracket to a television with a curved / recess back 27. Determine the correct diameter of the bolt your TV requires by hand threading them into the threaded insert on the back of the TV. If you encounter any resistance, stop immediately. If you are unable to find the correct bolt consult a local hardware store.
- Page 16 Model # XL-2 Assembly Instructions 30. Once the Monitor Brackets (N) are attached onto the back of television, ask for assistance to lift the television up to the XYZ Mounting Frame (M). Place the hooks on Monitor Brackets over the Mounting Frame then lower them onto the bars of Mounting Frame. Proceed to center the television.
-
Page 17: Care And Maintenance
Model # XL-2 Assembly Instructions 32. Place assembled console under your TV set as shown at the right. Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polish is not necessary. Should you choose to use polish, test in an inconspicuous area first.
