M A X I M U M R E C O M M E N D E D W E I G H T L O A D S
MANUFACTURER: Whalen Furniture Manufacturing

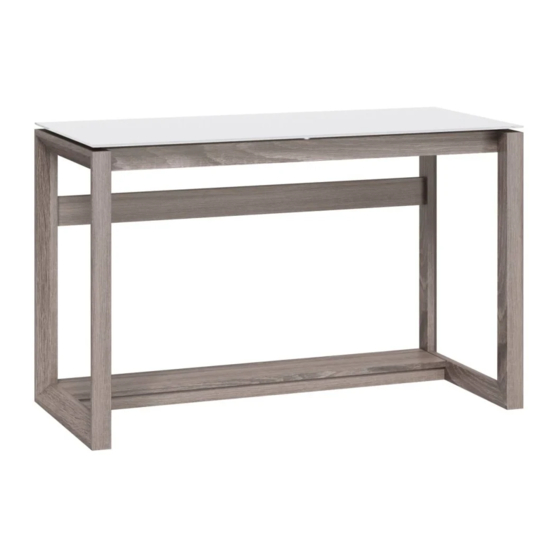

CATALOG: Cecile Desk
MODEL # ODUS48CD-HCV
WEIGHTS INDICATED. USE WITH LOAD HEAVIER THAN THE MAXIMUM WEIGHTS
INDICATED MAY RESULT IN INSTABILITY, CAUSING POSSIBLE INJURY.
Please read the instruction sheets completely before assembly. Examine all packaging
material before discarding carton. Remove any remaining staples from the carton before
discarding. Remove all parts from carton and separate into groups as indicated on part
list. Please ensure all parts are included prior to assembly. Use of power tools to
complete assembly is not recommended.
THIS UNIT IS INTENDED ONLY FOR USE WITHIN THE MAXIMUM
SPECIAL NOTE
MAXIMUM LOAD 45.4 kg / 100 lb.
MAXIMUM LOAD 22.7 kg / 50 lb.
2
Advertisement
Related Manuals for Whalen Furniture ODUS48CD-HCV
Summary of Contents for Whalen Furniture ODUS48CD-HCV
- Page 1 M A X I M U M R E C O M M E N D E D W E I G H T L O A D S MANUFACTURER: Whalen Furniture Manufacturing CATALOG: Cecile Desk MODEL # ODUS48CD-HCV MAXIMUM LOAD 45.4 kg / 100 lb.
- Page 2 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non- abrasive surface. You will need the parts identified on page 4 of this instruction manuals. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH DOWELS. EXCESS GLUE CAN BE WIPED OFF WITH DAMP CLOTH.
- Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Glass top B- Left Side Frame C- Right Side Frame (Qty. 1) (Qty. 1) (Qty. 1) D- Top Stretcher E- Back Middle Stretcher F- Bottom Shelf...
- Page 4 Assembly Instructions 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch. 2. Securely screw the Cam Bolts (2) into the designated small holes on the Side Frames (B and C) using a Phillips screwdriver.
- Page 5 Assembly Instructions Cam locks face inward 4. Attach one Shelf Support (G) to the Bottom Shelf (F) with three 50 mm Screws (7). Cam locks face inward 5. Repeat the previous step to attach the other Shelf Support (G) to the Bottom Shelf (F).
- Page 6 Assembly Instructions 6. Align and attach the Top Stretchers (D), Back Middle Stretcher (E) and bottom shelf assembly between the Side Frames (B and C) by engaging twenty Cam Locks (1). Make sure that the top surfaces are flush with each other. 7.
-
Page 7: Care And Maintenance
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
